Schema genticnotifyreview.xsd


schema location:
attributeFormDefault:
elementFormDefault:  qualified

Elements  Complex types
actual_dates  mvar_adjustmentsType
cause  mvar_adjustmentsType_adj
company_ticket_id
date
description
edart
effective_date
effective_time
emergency
ems_equip_name
generator
interval_definition
interval_end
interval_start
mvar_adjustments
mvar_max
mvar_min
mw_point
mw_revision
new_default
operational_data
outage_type
pjm_comments
pjm_ticket_id
pjm_timestamp
reduction
revised_date
revision
service_out
status
ta_id
ticket_type
time
timestamp
unitnumber
unknown_end


element actual_dates
diagram genticnotifyreview_p1.png
properties
content complex
children interval_definition
used by
element edart/genticnotifyreview
source <xs:element name="actual_dates">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="interval_definition"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element cause
diagram genticnotifyreview_p2.png
type restriction of xs:byte
properties
content simple
used by
element edart/genticnotifyreview
facets
Kind Value Annotation
minInclusive 1
maxInclusive 100
source <xs:element name="cause">
  <xs:simpleType>
    <xs:restriction base="xs:byte">
      <xs:minInclusive value="1"/>
      <xs:maxInclusive value="100"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element company_ticket_id
diagram genticnotifyreview_p3.png
type xs:string
properties
content simple
used by
element edart/genticnotifyreview
source <xs:element name="company_ticket_id" type="xs:string"/>

element date
diagram genticnotifyreview_p4.png
type restriction of xs:string
properties
content simple
used by
elements interval_end interval_start
source <xs:element name="date">
  <xs:simpleType>
    <xs:restriction base="xs:string"/>
  </xs:simpleType>
</xs:element>

element description
diagram genticnotifyreview_p5.png
type xs:string
properties
content simple
used by
element edart/genticnotifyreview
source <xs:element name="description" type="xs:string"/>

element edart
diagram genticnotifyreview_p6.png
properties
content complex
children genticnotifyreview
source <xs:element name="edart">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="genticnotifyreview" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="error" type="xs:string" minOccurs="0" maxOccurs="unbounded"/>
            <xs:element name="company" type="xs:string" minOccurs="0"/>
            <xs:element name="company_name" type="xs:string" minOccurs="0"/>
            <xs:element ref="pjm_ticket_id"/>
            <xs:element ref="company_ticket_id" minOccurs="0"/>
            <xs:element ref="unitnumber"/>
            <xs:element name="facility_information">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="commercial_name" type="xs:string"/>
                  <xs:element name="type" type="xs:string"/>
                  <xs:element name="capacity" type="xs:string"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element ref="ticket_type" minOccurs="0"/>
            <xs:element ref="operational_data" minOccurs="0"/>
            <xs:element name="ticket_type_description" type="xs:string"/>
            <xs:element ref="interval_definition"/>
            <xs:element ref="description"/>
            <xs:element ref="service_out" minOccurs="0"/>
            <xs:element ref="emergency" minOccurs="0"/>
            <xs:element ref="new_default" minOccurs="0"/>
            <xs:element name="mvar_default" type="mvar_adjustmentsType"/>
            <xs:element ref="mvar_adjustments" minOccurs="0"/>
            <xs:element ref="cause" minOccurs="0"/>
            <xs:element ref="reduction" minOccurs="0"/>
            <xs:element ref="outage_type" minOccurs="0"/>
            <xs:element ref="status"/>
            <xs:element ref="timestamp"/>
            <xs:element ref="pjm_timestamp" minOccurs="0"/>
            <xs:element ref="pjm_comments" minOccurs="0"/>
            <xs:element ref="actual_dates" minOccurs="0"/>
            <xs:element name="ramp_down_time" minOccurs="0">
              <xs:complexType>
                <xs:sequence>
                  <xs:element ref="interval_definition"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="switch" minOccurs="0">
              <xs:complexType>
                <xs:sequence>
                  <xs:element ref="interval_definition"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element ref="revision" minOccurs="0" maxOccurs="unbounded"/>
            <xs:element name="telemetry_verification" minOccurs="0">
              <xs:complexType>
                <xs:sequence>
                  <xs:element ref="timestamp"/>
                  <xs:element name="user" type="xs:string"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="historyLog" minOccurs="0">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="revisionLog" minOccurs="0" maxOccurs="unbounded">
                    <xs:complexType>
                      <xs:sequence>
                        <xs:element ref="status"/>
                        <xs:element ref="timestamp"/>
                      </xs:sequence>
                    </xs:complexType>
                  </xs:element>
                  <xs:element name="ticketLog" minOccurs="0" maxOccurs="unbounded">
                    <xs:complexType>
                      <xs:sequence>
                        <xs:element ref="status"/>
                        <xs:element name="outageType" type="xs:string"/>
                        <xs:element ref="timestamp"/>
                      </xs:sequence>
                    </xs:complexType>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="infoFlag" type="xs:boolean" minOccurs="0"/>
            <xs:element name="pss" type="xs:boolean" minOccurs="0"/>
            <xs:element name="est_early_return_time" type="xs:string" minOccurs="0"/>
            <xs:element name="early_recall_time" type="xs:string" minOccurs="0"/>
            <xs:element name="forced_date" type="xs:string" minOccurs="0"/>
            <xs:element name="related_ticket" type="xs:long" minOccurs="0"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

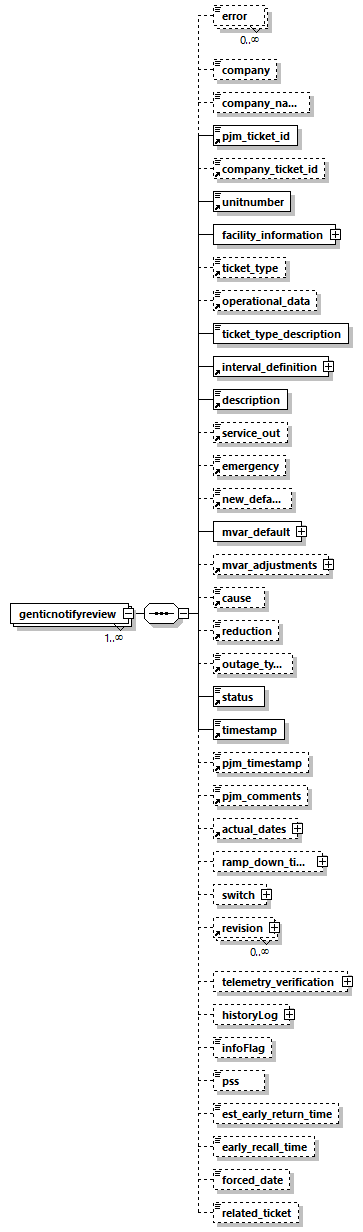

element edart/genticnotifyreview
diagram genticnotifyreview_p7.png
properties
minOcc 1
maxOcc unbounded
content complex
children error company company_name pjm_ticket_id company_ticket_id unitnumber facility_information ticket_type operational_data ticket_type_description interval_definition description service_out emergency new_default mvar_default mvar_adjustments cause reduction outage_type status timestamp pjm_timestamp pjm_comments actual_dates ramp_down_time switch revision telemetry_verification historyLog infoFlag pss est_early_return_time early_recall_time forced_date related_ticket
source <xs:element name="genticnotifyreview" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="error" type="xs:string" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="company" type="xs:string" minOccurs="0"/>
      <xs:element name="company_name" type="xs:string" minOccurs="0"/>
      <xs:element ref="pjm_ticket_id"/>
      <xs:element ref="company_ticket_id" minOccurs="0"/>
      <xs:element ref="unitnumber"/>
      <xs:element name="facility_information">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="commercial_name" type="xs:string"/>
            <xs:element name="type" type="xs:string"/>
            <xs:element name="capacity" type="xs:string"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element ref="ticket_type" minOccurs="0"/>
      <xs:element ref="operational_data" minOccurs="0"/>
      <xs:element name="ticket_type_description" type="xs:string"/>
      <xs:element ref="interval_definition"/>
      <xs:element ref="description"/>
      <xs:element ref="service_out" minOccurs="0"/>
      <xs:element ref="emergency" minOccurs="0"/>
      <xs:element ref="new_default" minOccurs="0"/>
      <xs:element name="mvar_default" type="mvar_adjustmentsType"/>
      <xs:element ref="mvar_adjustments" minOccurs="0"/>
      <xs:element ref="cause" minOccurs="0"/>
      <xs:element ref="reduction" minOccurs="0"/>
      <xs:element ref="outage_type" minOccurs="0"/>
      <xs:element ref="status"/>
      <xs:element ref="timestamp"/>
      <xs:element ref="pjm_timestamp" minOccurs="0"/>
      <xs:element ref="pjm_comments" minOccurs="0"/>
      <xs:element ref="actual_dates" minOccurs="0"/>
      <xs:element name="ramp_down_time" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element ref="interval_definition"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="switch" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element ref="interval_definition"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element ref="revision" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="telemetry_verification" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element ref="timestamp"/>
            <xs:element name="user" type="xs:string"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="historyLog" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="revisionLog" minOccurs="0" maxOccurs="unbounded">
              <xs:complexType>
                <xs:sequence>
                  <xs:element ref="status"/>
                  <xs:element ref="timestamp"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="ticketLog" minOccurs="0" maxOccurs="unbounded">
              <xs:complexType>
                <xs:sequence>
                  <xs:element ref="status"/>
                  <xs:element name="outageType" type="xs:string"/>
                  <xs:element ref="timestamp"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="infoFlag" type="xs:boolean" minOccurs="0"/>
      <xs:element name="pss" type="xs:boolean" minOccurs="0"/>
      <xs:element name="est_early_return_time" type="xs:string" minOccurs="0"/>
      <xs:element name="early_recall_time" type="xs:string" minOccurs="0"/>
      <xs:element name="forced_date" type="xs:string" minOccurs="0"/>
      <xs:element name="related_ticket" type="xs:long" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element edart/genticnotifyreview/error
diagram genticnotifyreview_p8.png
type xs:string
properties
minOcc 0
maxOcc unbounded
content simple
source <xs:element name="error" type="xs:string" minOccurs="0" maxOccurs="unbounded"/>

element edart/genticnotifyreview/company
diagram genticnotifyreview_p9.png
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="company" type="xs:string" minOccurs="0"/>

element edart/genticnotifyreview/company_name
diagram genticnotifyreview_p10.png
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="company_name" type="xs:string" minOccurs="0"/>

element edart/genticnotifyreview/facility_information
diagram genticnotifyreview_p11.png
properties
content complex
children commercial_name type capacity
source <xs:element name="facility_information">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="commercial_name" type="xs:string"/>
      <xs:element name="type" type="xs:string"/>
      <xs:element name="capacity" type="xs:string"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element edart/genticnotifyreview/facility_information/commercial_name
diagram genticnotifyreview_p12.png
type xs:string
properties
content simple
source <xs:element name="commercial_name" type="xs:string"/>

element edart/genticnotifyreview/facility_information/type
diagram genticnotifyreview_p13.png
type xs:string
properties
content simple
source <xs:element name="type" type="xs:string"/>

element edart/genticnotifyreview/facility_information/capacity
diagram genticnotifyreview_p14.png
type xs:string
properties
content simple
source <xs:element name="capacity" type="xs:string"/>

element edart/genticnotifyreview/ticket_type_description
diagram genticnotifyreview_p15.png
type xs:string
properties
content simple
source <xs:element name="ticket_type_description" type="xs:string"/>

element edart/genticnotifyreview/mvar_default
diagram genticnotifyreview_p16.png
type mvar_adjustmentsType
properties
content complex
children default_rating
source <xs:element name="mvar_default" type="mvar_adjustmentsType"/>

element edart/genticnotifyreview/ramp_down_time
diagram genticnotifyreview_p17.png
properties
minOcc 0
maxOcc 1
content complex
children interval_definition
source <xs:element name="ramp_down_time" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="interval_definition"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element edart/genticnotifyreview/switch
diagram genticnotifyreview_p18.png
properties
minOcc 0
maxOcc 1
content complex
children interval_definition
source <xs:element name="switch" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="interval_definition"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element edart/genticnotifyreview/telemetry_verification
diagram genticnotifyreview_p19.png
properties
minOcc 0
maxOcc 1
content complex
children timestamp user
source <xs:element name="telemetry_verification" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="timestamp"/>
      <xs:element name="user" type="xs:string"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element edart/genticnotifyreview/telemetry_verification/user
diagram genticnotifyreview_p20.png
type xs:string
properties
content simple
source <xs:element name="user" type="xs:string"/>

element edart/genticnotifyreview/historyLog
diagram genticnotifyreview_p21.png
properties
minOcc 0
maxOcc 1
content complex
children revisionLog ticketLog
source <xs:element name="historyLog" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="revisionLog" minOccurs="0" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element ref="status"/>
            <xs:element ref="timestamp"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="ticketLog" minOccurs="0" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element ref="status"/>
            <xs:element name="outageType" type="xs:string"/>
            <xs:element ref="timestamp"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element edart/genticnotifyreview/historyLog/revisionLog
diagram genticnotifyreview_p22.png
properties
minOcc 0
maxOcc unbounded
content complex
children status timestamp
source <xs:element name="revisionLog" minOccurs="0" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="status"/>
      <xs:element ref="timestamp"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element edart/genticnotifyreview/historyLog/ticketLog
diagram genticnotifyreview_p23.png
properties
minOcc 0
maxOcc unbounded
content complex
children status outageType timestamp
source <xs:element name="ticketLog" minOccurs="0" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="status"/>
      <xs:element name="outageType" type="xs:string"/>
      <xs:element ref="timestamp"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element edart/genticnotifyreview/historyLog/ticketLog/outageType
diagram genticnotifyreview_p24.png
type xs:string
properties
content simple
source <xs:element name="outageType" type="xs:string"/>

element edart/genticnotifyreview/infoFlag
diagram genticnotifyreview_p25.png
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="infoFlag" type="xs:boolean" minOccurs="0"/>

element edart/genticnotifyreview/pss
diagram genticnotifyreview_p26.png
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="pss" type="xs:boolean" minOccurs="0"/>

element edart/genticnotifyreview/est_early_return_time
diagram genticnotifyreview_p27.png
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="est_early_return_time" type="xs:string" minOccurs="0"/>

element edart/genticnotifyreview/early_recall_time
diagram genticnotifyreview_p28.png
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="early_recall_time" type="xs:string" minOccurs="0"/>

element edart/genticnotifyreview/forced_date
diagram genticnotifyreview_p29.png
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="forced_date" type="xs:string" minOccurs="0"/>

element edart/genticnotifyreview/related_ticket
diagram genticnotifyreview_p30.png
type xs:long
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="related_ticket" type="xs:long" minOccurs="0"/>

element effective_date
diagram genticnotifyreview_p31.png
type xs:string
properties
content simple
used by
element mw_revision
source <xs:element name="effective_date" type="xs:string"/>

element effective_time
diagram genticnotifyreview_p32.png
type restriction of xs:string
properties
content simple
used by
element mw_revision
facets
Kind Value Annotation
enumeration 11:00:00
enumeration 16:00:00
source <xs:element name="effective_time">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="11:00:00"/>
      <xs:enumeration value="16:00:00"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element emergency
diagram genticnotifyreview_p33.png
type xs:boolean
properties
content simple
used by
element edart/genticnotifyreview
source <xs:element name="emergency" type="xs:boolean"/>

element ems_equip_name
diagram genticnotifyreview_p34.png
type xs:string
properties
content simple
used by
elements mvar_adjustmentsType_adj/adj_rating mvar_adjustmentsType/default_rating
source <xs:element name="ems_equip_name" type="xs:string"/>

element generator
diagram genticnotifyreview_p35.png
type xs:short
properties
content simple
source <xs:element name="generator" type="xs:short"/>

element interval_definition
diagram genticnotifyreview_p36.png
properties
content complex
children interval_start interval_end
used by
elements actual_dates edart/genticnotifyreview revision/ramp_down_revision edart/genticnotifyreview/ramp_down_time revised_date edart/genticnotifyreview/switch
source <xs:element name="interval_definition">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="interval_start" minOccurs="0"/>
      <xs:element ref="interval_end" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element interval_end
diagram genticnotifyreview_p37.png
properties
content complex
children date time
used by
element interval_definition
source <xs:element name="interval_end">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="date"/>
      <xs:element ref="time"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element interval_start
diagram genticnotifyreview_p38.png
properties
content complex
children date time
used by
element interval_definition
source <xs:element name="interval_start">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="date"/>
      <xs:element ref="time"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element mvar_adjustments
diagram genticnotifyreview_p39.png
type mvar_adjustmentsType_adj
properties
content complex
children adj_rating
used by
element edart/genticnotifyreview
source <xs:element name="mvar_adjustments" type="mvar_adjustmentsType_adj"/>

element mvar_max
diagram genticnotifyreview_p40.png
type xs:decimal
properties
content simple
used by
elements mvar_adjustmentsType_adj/adj_rating mvar_adjustmentsType/default_rating
source <xs:element name="mvar_max" type="xs:decimal"/>

element mvar_min
diagram genticnotifyreview_p41.png
type xs:decimal
properties
content simple
used by
elements mvar_adjustmentsType_adj/adj_rating mvar_adjustmentsType/default_rating
source <xs:element name="mvar_min" type="xs:decimal"/>

element mw_point
diagram genticnotifyreview_p42.png
type xs:decimal
properties
content simple
used by
elements mvar_adjustmentsType_adj/adj_rating mvar_adjustmentsType/default_rating
source <xs:element name="mw_point" type="xs:decimal"/>

element mw_revision
diagram genticnotifyreview_p43.png
properties
content complex
children reduction effective_date effective_time
used by
element revision
source <xs:element name="mw_revision">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="reduction"/>
      <xs:element ref="effective_date"/>
      <xs:element ref="effective_time"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element new_default
diagram genticnotifyreview_p44.png
type xs:boolean
properties
content simple
used by
element edart/genticnotifyreview
source <xs:element name="new_default" type="xs:boolean"/>

element operational_data
diagram genticnotifyreview_p45.png
type restriction of xs:boolean
properties
content simple
used by
element edart/genticnotifyreview
source <xs:element name="operational_data">
  <xs:simpleType>
    <xs:restriction base="xs:boolean"/>
  </xs:simpleType>
</xs:element>

element outage_type
diagram genticnotifyreview_p46.png
type restriction of xs:string
properties
content simple
used by
element edart/genticnotifyreview
facets
Kind Value Annotation
enumeration Planned
enumeration Unplanned
enumeration Maintenance
enumeration N/A
source <xs:element name="outage_type">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="Planned"/>
      <xs:enumeration value="Unplanned"/>
      <xs:enumeration value="Maintenance"/>
      <xs:enumeration value="N/A"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element pjm_comments
diagram genticnotifyreview_p47.png
type xs:string
properties
content simple
used by
element edart/genticnotifyreview
source <xs:element name="pjm_comments" type="xs:string"/>

element pjm_ticket_id
diagram genticnotifyreview_p48.png
type xs:positiveInteger
properties
content simple
used by
element edart/genticnotifyreview
source <xs:element name="pjm_ticket_id" type="xs:positiveInteger"/>

element pjm_timestamp
diagram genticnotifyreview_p49.png
type xs:string
properties
content simple
used by
element edart/genticnotifyreview
source <xs:element name="pjm_timestamp" type="xs:string"/>

element reduction
diagram genticnotifyreview_p50.png
type restriction of xs:short
properties
content simple
used by
elements edart/genticnotifyreview mw_revision
source <xs:element name="reduction">
  <xs:simpleType>
    <xs:restriction base="xs:short"/>
  </xs:simpleType>
</xs:element>

element revised_date
diagram genticnotifyreview_p51.png
properties
content complex
children interval_definition
used by
element revision
source <xs:element name="revised_date">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="interval_definition"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element revision
diagram genticnotifyreview_p52.png
properties
content complex
children revision_id status timestamp mw_revision revised_date ramp_down_revision
used by
element edart/genticnotifyreview
source <xs:element name="revision">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="revision_id" type="xs:long"/>
      <xs:element ref="status"/>
      <xs:element ref="timestamp"/>
      <xs:element ref="mw_revision" minOccurs="0"/>
      <xs:element ref="revised_date" minOccurs="0"/>
      <xs:element name="ramp_down_revision" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element ref="interval_definition"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element revision/revision_id
diagram genticnotifyreview_p53.png
type xs:long
properties
content simple
source <xs:element name="revision_id" type="xs:long"/>

element revision/ramp_down_revision
diagram genticnotifyreview_p54.png
properties
minOcc 0
maxOcc 1
content complex
children interval_definition
source <xs:element name="ramp_down_revision" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="interval_definition"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element service_out
diagram genticnotifyreview_p55.png
type xs:boolean
properties
content simple
used by
element edart/genticnotifyreview
source <xs:element name="service_out" type="xs:boolean"/>

element status
diagram genticnotifyreview_p56.png
type restriction of xs:string
properties
content simple
used by
elements edart/genticnotifyreview revision edart/genticnotifyreview/historyLog/revisionLog edart/genticnotifyreview/historyLog/ticketLog
facets
Kind Value Annotation
enumeration Complete
enumeration Submitted
enumeration Denied
enumeration Approved
enumeration Canceled by Company
enumeration Canceled by PJM
enumeration Active
source <xs:element name="status">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="Complete"/>
      <xs:enumeration value="Submitted"/>
      <xs:enumeration value="Denied"/>
      <xs:enumeration value="Approved"/>
      <xs:enumeration value="Canceled by Company"/>
      <xs:enumeration value="Canceled by PJM"/>
      <xs:enumeration value="Active"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element ta_id
diagram genticnotifyreview_p57.png
type xs:long
properties
content simple
used by
elements mvar_adjustmentsType_adj/adj_rating mvar_adjustmentsType/default_rating
source <xs:element name="ta_id" type="xs:long"/>

element ticket_type
diagram genticnotifyreview_p58.png
type restriction of xs:byte
properties
content simple
used by
element edart/genticnotifyreview
facets
Kind Value Annotation
enumeration 1
enumeration 2
enumeration 3
enumeration 4
enumeration 6
source <xs:element name="ticket_type">
  <xs:simpleType>
    <xs:restriction base="xs:byte">
      <xs:enumeration value="1"/>
      <xs:enumeration value="2"/>
      <xs:enumeration value="3"/>
      <xs:enumeration value="4"/>
      <xs:enumeration value="6"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element time
diagram genticnotifyreview_p59.png
type restriction of xs:string
properties
content simple
used by
elements interval_end interval_start
source <xs:element name="time">
  <xs:simpleType>
    <xs:restriction base="xs:string"/>
  </xs:simpleType>
</xs:element>

element timestamp
diagram genticnotifyreview_p60.png
type xs:string
properties
content simple
used by
elements edart/genticnotifyreview revision edart/genticnotifyreview/historyLog/revisionLog edart/genticnotifyreview/telemetry_verification edart/genticnotifyreview/historyLog/ticketLog
source <xs:element name="timestamp" type="xs:string"/>

element unitnumber
diagram genticnotifyreview_p61.png
type xs:positiveInteger
properties
content simple
used by
element edart/genticnotifyreview
source <xs:element name="unitnumber" type="xs:positiveInteger"/>

element unknown_end
diagram genticnotifyreview_p62.png
type xs:boolean
properties
content simple
source <xs:element name="unknown_end" type="xs:boolean"/>

complexType mvar_adjustmentsType
diagram genticnotifyreview_p63.png
children default_rating
used by
element edart/genticnotifyreview/mvar_default
source <xs:complexType name="mvar_adjustmentsType">
  <xs:sequence>
    <xs:element name="default_rating" maxOccurs="unbounded">
      <xs:complexType>
        <xs:sequence>
          <xs:element ref="ta_id"/>
          <xs:element ref="ems_equip_name"/>
          <xs:element ref="mw_point"/>
          <xs:element ref="mvar_min"/>
          <xs:element ref="mvar_max"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element mvar_adjustmentsType/default_rating
diagram genticnotifyreview_p64.png
properties
minOcc 1
maxOcc unbounded
content complex
children ta_id ems_equip_name mw_point mvar_min mvar_max
source <xs:element name="default_rating" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="ta_id"/>
      <xs:element ref="ems_equip_name"/>
      <xs:element ref="mw_point"/>
      <xs:element ref="mvar_min"/>
      <xs:element ref="mvar_max"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

complexType mvar_adjustmentsType_adj
diagram genticnotifyreview_p65.png
children adj_rating
used by
element mvar_adjustments
source <xs:complexType name="mvar_adjustmentsType_adj">
  <xs:sequence>
    <xs:element name="adj_rating" maxOccurs="unbounded">
      <xs:complexType>
        <xs:sequence>
          <xs:element ref="ta_id"/>
          <xs:element ref="ems_equip_name"/>
          <xs:element ref="mw_point"/>
          <xs:element ref="mvar_min"/>
          <xs:element ref="mvar_max"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element mvar_adjustmentsType_adj/adj_rating
diagram genticnotifyreview_p66.png
properties
minOcc 1
maxOcc unbounded
content complex
children ta_id ems_equip_name mw_point mvar_min mvar_max
source <xs:element name="adj_rating" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="ta_id"/>
      <xs:element ref="ems_equip_name"/>
      <xs:element ref="mw_point"/>
      <xs:element ref="mvar_min"/>
      <xs:element ref="mvar_max"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
