Schema termrevise.xsd


schema location:  termrevise.xsd
attribute form default:
element form default:  qualified

Elements  Complex types
category  interval_definitionType
comment  interval_endType
company_ticket_id  interval_startType
date  limitationsType
edart  limitType
limitation_id  revisetermticType
pjm_ticket_id  ticket_typeType
reason_id
temperature
time
time_of_day


element category
diagram termrevise_p1.png
type restriction of xsd:string
properties
content simple
used by
element revisetermticType/adjustment_list/adjustment
complexType limitType
facets
Kind Value annotation
enumeration loaddump
enumeration shortterm
enumeration longterm
enumeration normal
source <xsd:element name="category">
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:enumeration value="loaddump"/>
      <xsd:enumeration value="shortterm"/>
      <xsd:enumeration value="longterm"/>
      <xsd:enumeration value="normal"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>

element comment
diagram termrevise_p2.png
type xsd:string
properties
content simple
source <xsd:element name="comment" type="xsd:string"/>

element company_ticket_id
diagram termrevise_p3.png
type xsd:string
properties
content simple
source <xsd:element name="company_ticket_id" type="xsd:string"/>

element date
diagram termrevise_p4.png
type xsd:string
properties
content simple
used by
complexTypes interval_endType interval_startType
source <xsd:element name="date" type="xsd:string"/>

element edart
diagram termrevise_p5.png
properties
content complex
children warning
source <xsd:element name="edart">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element name="warning" minOccurs="0">
        <xsd:complexType>
          <xsd:sequence>
            <xsd:element name="revisetermtic" type="revisetermticType" maxOccurs="unbounded"/>
          </xsd:sequence>
        </xsd:complexType>
      </xsd:element>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

element edart/warning
diagram termrevise_p6.png
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children revisetermtic
source <xsd:element name="warning" minOccurs="0">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element name="revisetermtic" type="revisetermticType" maxOccurs="unbounded"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

element edart/warning/revisetermtic

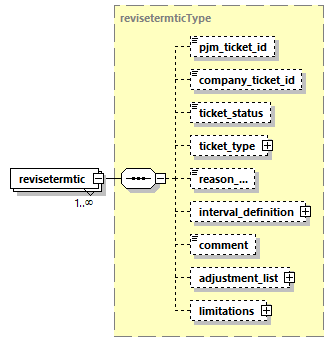

diagram termrevise_p7.png
type revisetermticType
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children company pjm_ticket_id company_ticket_id ticket_status ticket_type reason_id interval_definition comment adjustment_list limitations newCompanyTicketId
source <xsd:element name="revisetermtic" type="revisetermticType" maxOccurs="unbounded"/>

element limitation_id
diagram termrevise_p8.png
type xsd:nonNegativeInteger
properties
content simple
used by
complexType limitType
source <xsd:element name="limitation_id" type="xsd:nonNegativeInteger"/>

element pjm_ticket_id
diagram termrevise_p9.png
type xsd:nonNegativeInteger
properties
content simple
source <xsd:element name="pjm_ticket_id" type="xsd:nonNegativeInteger"/>

element reason_id
diagram termrevise_p10.png
type xsd:byte
properties
content simple
source <xsd:element name="reason_id" type="xsd:byte"/>

element temperature
diagram termrevise_p11.png
type restriction of xsd:string
properties
content simple
used by
element revisetermticType/adjustment_list/adjustment
complexType limitType
facets
Kind Value annotation
enumeration 95
enumeration 86
enumeration 77
enumeration 68
enumeration 59
enumeration 50
enumeration 41
enumeration 32
source <xsd:element name="temperature">
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:enumeration value="95"/>
      <xsd:enumeration value="86"/>
      <xsd:enumeration value="77"/>
      <xsd:enumeration value="68"/>
      <xsd:enumeration value="59"/>
      <xsd:enumeration value="50"/>
      <xsd:enumeration value="41"/>
      <xsd:enumeration value="32"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>

element time
diagram termrevise_p12.png
type xsd:string
properties
content simple
used by
complexTypes interval_endType interval_startType
source <xsd:element name="time" type="xsd:string"/>

element time_of_day
diagram termrevise_p13.png
type restriction of xsd:string
properties
content simple
facets
Kind Value annotation
enumeration both
enumeration day
enumeration night
source <xsd:element name="time_of_day">
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:enumeration value="both"/>
      <xsd:enumeration value="day"/>
      <xsd:enumeration value="night"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>

complexType interval_definitionType

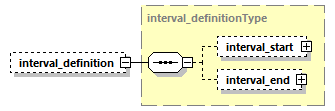

diagram termrevise_p14.png
children interval_start interval_end
used by
element revisetermticType/interval_definition
source <xsd:complexType name="interval_definitionType">
  <xsd:sequence>
    <xsd:element name="interval_start" type="interval_startType" minOccurs="0"/>
    <xsd:element name="interval_end" type="interval_endType" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>

element interval_definitionType/interval_start
diagram termrevise_p15.png
type interval_startType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children date time
source <xsd:element name="interval_start" type="interval_startType" minOccurs="0"/>

element interval_definitionType/interval_end
diagram termrevise_p16.png
type interval_endType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children date time
source <xsd:element name="interval_end" type="interval_endType" minOccurs="0"/>

complexType interval_endType
diagram termrevise_p17.png
children date time
used by
element interval_definitionType/interval_end
source <xsd:complexType name="interval_endType">
  <xsd:sequence>
    <xsd:element ref="date"/>
    <xsd:element ref="time"/>
  </xsd:sequence>
</xsd:complexType>

complexType interval_startType
diagram termrevise_p18.png
children date time
used by
element interval_definitionType/interval_start
source <xsd:complexType name="interval_startType">
  <xsd:sequence>
    <xsd:element ref="date"/>
    <xsd:element ref="time"/>
  </xsd:sequence>
</xsd:complexType>

complexType limitationsType
diagram termrevise_p19.png
children limit
used by
element revisetermticType/limitations
source <xsd:complexType name="limitationsType">
  <xsd:sequence>
    <xsd:element name="limit" type="limitType" maxOccurs="unbounded"/>
  </xsd:sequence>
</xsd:complexType>

element limitationsType/limit
diagram termrevise_p20.png
type limitType
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children limitation_id temperature category day_night_flag
source <xsd:element name="limit" type="limitType" maxOccurs="unbounded"/>

complexType limitType
diagram termrevise_p21.png
children limitation_id temperature category day_night_flag
used by
element limitationsType/limit
source <xsd:complexType name="limitType">
  <xsd:sequence>
    <xsd:element ref="limitation_id"/>
    <xsd:element ref="temperature"/>
    <xsd:element ref="category"/>
    <xsd:element name="day_night_flag">
      <xsd:simpleType>
        <xsd:restriction base="xsd:string">
          <xsd:enumeration value="day"/>
          <xsd:enumeration value="night"/>
        </xsd:restriction>
      </xsd:simpleType>
    </xsd:element>
  </xsd:sequence>
</xsd:complexType>

element limitType/day_night_flag
diagram termrevise_p22.png
type restriction of xsd:string
properties
isRef 0
content simple
facets
Kind Value annotation
enumeration day
enumeration night
source <xsd:element name="day_night_flag">
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:enumeration value="day"/>
      <xsd:enumeration value="night"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>

complexType revisetermticType

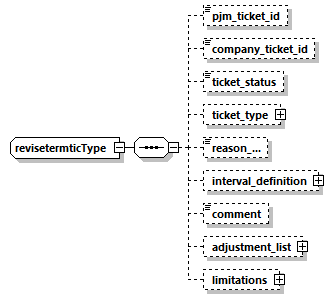

diagram termrevise_p23.png
children company pjm_ticket_id company_ticket_id ticket_status ticket_type reason_id interval_definition comment adjustment_list limitations newCompanyTicketId
used by
element edart/warning/revisetermtic
source <xsd:complexType name="revisetermticType">
  <xsd:sequence>
    <xsd:element name="company" type="xsd:positiveInteger" minOccurs="0"/>
    <xsd:element name="pjm_ticket_id" type="xsd:positiveInteger" minOccurs="0"/>
    <xsd:element name="company_ticket_id" minOccurs="0">
      <xsd:simpleType>
        <xsd:restriction base="xsd:string">
          <xsd:maxLength value="50"/>
          <xsd:minLength value="1"/>
          <xsd:whiteSpace value="preserve"/>
        </xsd:restriction>
      </xsd:simpleType>
    </xsd:element>
    <xsd:element name="ticket_status" minOccurs="0">
      <xsd:simpleType>
        <xsd:restriction base="xsd:string">
          <xsd:enumeration value="cancel"/>
        </xsd:restriction>
      </xsd:simpleType>
    </xsd:element>
    <xsd:element name="ticket_type" type="ticket_typeType" minOccurs="0"/>
    <xsd:element name="reason_id" minOccurs="0"/>
    <xsd:element name="interval_definition" type="interval_definitionType" minOccurs="0"/>
    <xsd:element name="comment" minOccurs="0"/>
    <xsd:element name="adjustment_list" minOccurs="0">
      <xsd:complexType>
        <xsd:sequence>
          <xsd:element name="adjustment" maxOccurs="unbounded">
            <xsd:complexType>
              <xsd:sequence>
                <xsd:element ref="temperature"/>
                <xsd:element ref="category"/>
                <xsd:element name="day_night_flag">
                  <xsd:simpleType>
                    <xsd:restriction base="xsd:string">
                      <xsd:enumeration value="day"/>
                      <xsd:enumeration value="night"/>
                    </xsd:restriction>
                  </xsd:simpleType>
                </xsd:element>
                <xsd:element name="adjustment_value" type="xsd:positiveInteger"/>
              </xsd:sequence>
            </xsd:complexType>
          </xsd:element>
        </xsd:sequence>
      </xsd:complexType>
    </xsd:element>
    <xsd:element name="limitations" type="limitationsType" minOccurs="0"/>
    <xsd:element name="newCompanyTicketId" minOccurs="0">
      <xsd:simpleType>
        <xsd:restriction base="xsd:string">
          <xsd:minLength value="1"/>
          <xsd:maxLength value="50"/>
        </xsd:restriction>
      </xsd:simpleType>
    </xsd:element>
  </xsd:sequence>
</xsd:complexType>

element revisetermticType/company
diagram termrevise_p24.png
type xsd:positiveInteger
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xsd:element name="company" type="xsd:positiveInteger" minOccurs="0"/>

element revisetermticType/pjm_ticket_id
diagram termrevise_p25.png
type xsd:positiveInteger
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xsd:element name="pjm_ticket_id" type="xsd:positiveInteger" minOccurs="0"/>

element revisetermticType/company_ticket_id
diagram termrevise_p26.png
type restriction of xsd:string
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 1
maxLength 50
whiteSpace preserve
source <xsd:element name="company_ticket_id" minOccurs="0">
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:maxLength value="50"/>
      <xsd:minLength value="1"/>
      <xsd:whiteSpace value="preserve"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>

element revisetermticType/ticket_status
diagram termrevise_p27.png
type restriction of xsd:string
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
enumeration cancel
source <xsd:element name="ticket_status" minOccurs="0">
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:enumeration value="cancel"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>

element revisetermticType/ticket_type
diagram termrevise_p28.png
type ticket_typeType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
attributes
Name  Type  Use  Default  Fixed  annotation
implementationderived by: xsd:stringrequired
typederived by: xsd:stringrequired
source <xsd:element name="ticket_type" type="ticket_typeType" minOccurs="0"/>

element revisetermticType/reason_id
diagram termrevise_p29.png
properties
isRef 0
minOcc 0
maxOcc 1
source <xsd:element name="reason_id" minOccurs="0"/>

element revisetermticType/interval_definition
diagram termrevise_p30.png
type interval_definitionType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children interval_start interval_end
source <xsd:element name="interval_definition" type="interval_definitionType" minOccurs="0"/>

element revisetermticType/comment
diagram termrevise_p31.png
properties
isRef 0
minOcc 0
maxOcc 1
source <xsd:element name="comment" minOccurs="0"/>

element revisetermticType/adjustment_list
diagram termrevise_p32.png
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children adjustment
source <xsd:element name="adjustment_list" minOccurs="0">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element name="adjustment" maxOccurs="unbounded">
        <xsd:complexType>
          <xsd:sequence>
            <xsd:element ref="temperature"/>
            <xsd:element ref="category"/>
            <xsd:element name="day_night_flag">
              <xsd:simpleType>
                <xsd:restriction base="xsd:string">
                  <xsd:enumeration value="day"/>
                  <xsd:enumeration value="night"/>
                </xsd:restriction>
              </xsd:simpleType>
            </xsd:element>
            <xsd:element name="adjustment_value" type="xsd:positiveInteger"/>
          </xsd:sequence>
        </xsd:complexType>
      </xsd:element>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

element revisetermticType/adjustment_list/adjustment
diagram termrevise_p33.png
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children temperature category day_night_flag adjustment_value
source <xsd:element name="adjustment" maxOccurs="unbounded">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="temperature"/>
      <xsd:element ref="category"/>
      <xsd:element name="day_night_flag">
        <xsd:simpleType>
          <xsd:restriction base="xsd:string">
            <xsd:enumeration value="day"/>
            <xsd:enumeration value="night"/>
          </xsd:restriction>
        </xsd:simpleType>
      </xsd:element>
      <xsd:element name="adjustment_value" type="xsd:positiveInteger"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

element revisetermticType/adjustment_list/adjustment/day_night_flag
diagram termrevise_p34.png
type restriction of xsd:string
properties
isRef 0
content simple
facets
Kind Value annotation
enumeration day
enumeration night
source <xsd:element name="day_night_flag">
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:enumeration value="day"/>
      <xsd:enumeration value="night"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>

element revisetermticType/adjustment_list/adjustment/adjustment_value
diagram termrevise_p35.png
type xsd:positiveInteger
properties
isRef 0
content simple
source <xsd:element name="adjustment_value" type="xsd:positiveInteger"/>

element revisetermticType/limitations
diagram termrevise_p36.png
type limitationsType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children limit
source <xsd:element name="limitations" type="limitationsType" minOccurs="0"/>

element revisetermticType/newCompanyTicketId
diagram termrevise_p37.png
type restriction of xsd:string
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 1
maxLength 50
source <xsd:element name="newCompanyTicketId" minOccurs="0">
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:minLength value="1"/>
      <xsd:maxLength value="50"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>

complexType ticket_typeType
diagram termrevise_p38.png
used by
element revisetermticType/ticket_type
attributes
Name  Type  Use  Default  Fixed  annotation
implementationderived by: xsd:stringrequired
typederived by: xsd:stringrequired
source <xsd:complexType name="ticket_typeType">
  <xsd:attribute name="implementation" use="required">
    <xsd:simpleType>
      <xsd:restriction base="xsd:string">
        <xsd:enumeration value="planned"/>
        <xsd:enumeration value="immediate"/>
      </xsd:restriction>
    </xsd:simpleType>
  </xsd:attribute>
  <xsd:attribute name="type" use="required">
    <xsd:simpleType>
      <xsd:restriction base="xsd:string">
        <xsd:enumeration value="permanent"/>
        <xsd:enumeration value="temporary"/>
      </xsd:restriction>
    </xsd:simpleType>
  </xsd:attribute>
</xsd:complexType>

attribute ticket_typeType/@implementation
type restriction of xsd:string
properties
isRef 0
use required
facets
Kind Value annotation
enumeration planned
enumeration immediate
source <xsd:attribute name="implementation" use="required">
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:enumeration value="planned"/>
      <xsd:enumeration value="immediate"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:attribute>

attribute ticket_typeType/@type
type restriction of xsd:string
properties
isRef 0
use required
facets
Kind Value annotation
enumeration permanent
enumeration temporary
source <xsd:attribute name="type" use="required">
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:enumeration value="permanent"/>
      <xsd:enumeration value="temporary"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:attribute>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
