Schema dlrforecastticket.xsd

schema location:
attributeFormDefault:
elementFormDefault:

Elements

dlrForecastTicket

hourlyValue

hourlyValues

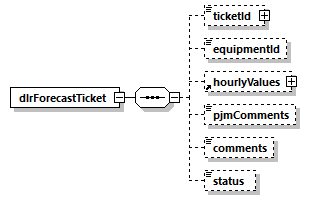

element dlrForecastTicket

diagram
properties	content  complex
children	ticketId equipmentId hourlyValues pjmComments comments status
source	<xs:element name="dlrForecastTicket">   <xs:complexType>     <xs:sequence>       <xs:element name="ticketId" minOccurs="0">         <xs:complexType>           <xs:simpleContent>             <xs:extension base="xs:long">               <xs:attribute name="cancel" type="xs:boolean" use="optional"/>             </xs:extension>           </xs:simpleContent>         </xs:complexType>       </xs:element>       <xs:element name="equipmentId" type="xs:decimal" minOccurs="0"/>       <xs:element ref="hourlyValues" minOccurs="0"/>       <xs:element name="pjmComments" type="xs:string" minOccurs="0"/>       <xs:element name="comments" type="xs:string" minOccurs="0"/>       <xs:element name="status" type="xs:string" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element dlrForecastTicket/ticketId

diagram
type	extension of xs:long
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation cancel   xs:boolean   optional
source	<xs:element name="ticketId" minOccurs="0">   <xs:complexType>     <xs:simpleContent>       <xs:extension base="xs:long">         <xs:attribute name="cancel" type="xs:boolean" use="optional"/>       </xs:extension>     </xs:simpleContent>   </xs:complexType> </xs:element>

attribute dlrForecastTicket/ticketId/@cancel

type	xs:boolean
properties	use  optional
source	<xs:attribute name="cancel" type="xs:boolean" use="optional"/>

element dlrForecastTicket/equipmentId

diagram
type	xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="equipmentId" type="xs:decimal" minOccurs="0"/>

element dlrForecastTicket/pjmComments

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="pjmComments" type="xs:string" minOccurs="0"/>

element dlrForecastTicket/comments

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="comments" type="xs:string" minOccurs="0"/>

element dlrForecastTicket/status

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="status" type="xs:string" minOccurs="0"/>

element hourlyValue

diagram
properties	content  complex
children	hourEndGmt normal longTerm shortTerm loadDump
used by	element  hourlyValues
source	<xs:element name="hourlyValue">   <xs:complexType>     <xs:sequence>       <xs:element name="hourEndGmt" type="xs:string" minOccurs="0"/>       <xs:element name="normal" type="xs:decimal" minOccurs="0"/>       <xs:element name="longTerm" type="xs:decimal" minOccurs="0"/>       <xs:element name="shortTerm" type="xs:decimal" minOccurs="0"/>       <xs:element name="loadDump" type="xs:decimal" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element hourlyValue/hourEndGmt

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="hourEndGmt" type="xs:string" minOccurs="0"/>

element hourlyValue/normal

diagram
type	xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="normal" type="xs:decimal" minOccurs="0"/>

element hourlyValue/longTerm

diagram
type	xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="longTerm" type="xs:decimal" minOccurs="0"/>

element hourlyValue/shortTerm

diagram
type	xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="shortTerm" type="xs:decimal" minOccurs="0"/>

element hourlyValue/loadDump

diagram
type	xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="loadDump" type="xs:decimal" minOccurs="0"/>

element hourlyValues

diagram
properties	content  complex
children	hourlyValue
used by	element  dlrForecastTicket
source	<xs:element name="hourlyValues">   <xs:complexType>     <xs:sequence>       <xs:element ref="hourlyValue" maxOccurs="unbounded"/>     </xs:sequence>   </xs:complexType> </xs:element>
