Schema rrc.xsd

schema location:	C:\Personal\workspace\edart\application\src\main\resources\schema\rrc.xsd
attributeFormDefault:	unqualified
elementFormDefault:	unqualified
targetNamespace:	http://www.pjm.com/external/schemas/rrc/v2

Elements	Complex types	Simple types
error	FullCapacitor	acknowledge_type
rrcByDate	fullEquipment	equipmentType
rrcEquipmentList	FullReactor
rrcFull	FullSVC
rrcRevise	FullUnit
rrcReviseResponse	ReviseCapacitor
rrcSelfCheckDownload	ReviseError
	ReviseReactor
	ReviseStatus
	ReviseSVC
	rrcByDate
	rrcEquipment
	rrcEquipmentList
	rrcFull
	rrcRevise
	rrcReviseResponse
	rrcSelfCheckDownload
	SelfCheckCapacitor
	SelfCheckEquipment
	SelfCheckReactor
	SelfCheckSVC
	SelfCheckUnit

element error

diagram
namespace	http://www.pjm.com/external/schemas/rrc/v2
type	xs:string
properties	content  simple
source	<xs:element name="error" type="xs:string"/>

element rrcByDate

diagram
namespace	http://www.pjm.com/external/schemas/rrc/v2
type	rrc:rrcByDate
properties	content  complex
children	rrcIds
source	<xs:element name="rrcByDate" type="rrc:rrcByDate"/>

element rrcEquipmentList

diagram
namespace	http://www.pjm.com/external/schemas/rrc/v2
type	rrc:rrcEquipmentList
properties	content  complex
children	rrcEquipment
source	<xs:element name="rrcEquipmentList" type="rrc:rrcEquipmentList"/>

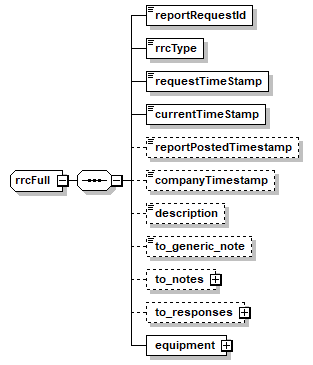

element rrcFull

diagram
namespace	http://www.pjm.com/external/schemas/rrc/v2
type	rrc:rrcFull
properties	content  complex
children	reportRequestId rrcType requestTimeStamp currentTimeStamp reportPostedTimestamp companyTimestamp description to_generic_note to_notes to_responses equipment
source	<xs:element name="rrcFull" type="rrc:rrcFull"/>

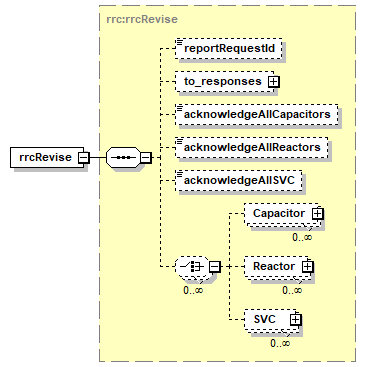

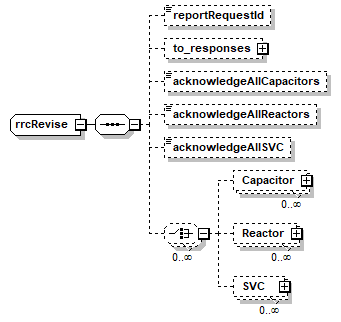

element rrcRevise

diagram
namespace	http://www.pjm.com/external/schemas/rrc/v2
type	rrc:rrcRevise
properties	content  complex
children	reportRequestId to_responses acknowledgeAllCapacitors acknowledgeAllReactors acknowledgeAllSVC Capacitor Reactor SVC
source	<xs:element name="rrcRevise" type="rrc:rrcRevise"/>

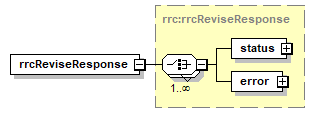

element rrcReviseResponse

diagram
namespace	http://www.pjm.com/external/schemas/rrc/v2
type	rrc:rrcReviseResponse
properties	content  complex
children	status error
source	<xs:element name="rrcReviseResponse" type="rrc:rrcReviseResponse"/>

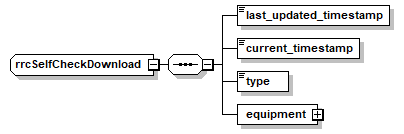

element rrcSelfCheckDownload

diagram
namespace	http://www.pjm.com/external/schemas/rrc/v2
type	rrc:rrcSelfCheckDownload
properties	content  complex
children	last_updated_timestamp current_timestamp type equipment
source	<xs:element name="rrcSelfCheckDownload" type="rrc:rrcSelfCheckDownload"/>

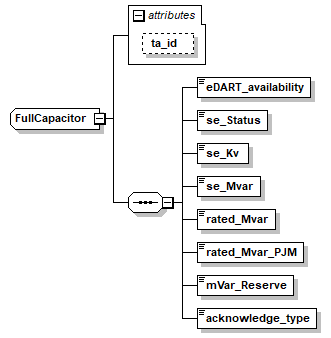

complexType FullCapacitor

diagram
namespace	http://www.pjm.com/external/schemas/rrc/v2
children	eDART_availability se_Status se_Kv se_Mvar rated_Mvar rated_Mvar_PJM mVar_Reserve acknowledge_type
used by	element  fullEquipment/Capacitor
attributes	Name   Type   Use   Default   Fixed   Annotation ta_id   xs:integer
source	<xs:complexType name="FullCapacitor">   <xs:sequence>     <xs:element name="eDART_availability" type="xs:boolean"/>     <xs:element name="se_Status" type="xs:string"/>     <xs:element name="se_Kv" type="xs:decimal"/>     <xs:element name="se_Mvar" type="xs:decimal"/>     <xs:element name="rated_Mvar" type="xs:decimal"/>     <xs:element name="rated_Mvar_PJM" type="xs:decimal"/>     <xs:element name="mVar_Reserve" type="xs:decimal"/>     <xs:element name="acknowledge_type" type="rrc:acknowledge_type"/>   </xs:sequence>   <xs:attribute name="ta_id" type="xs:integer"/> </xs:complexType>

attribute FullCapacitor/@ta_id

type	xs:integer
source	<xs:attribute name="ta_id" type="xs:integer"/>

element FullCapacitor/eDART_availability

diagram
type	xs:boolean
properties	content  simple
source	<xs:element name="eDART_availability" type="xs:boolean"/>

element FullCapacitor/se_Status

diagram
type	xs:string
properties	content  simple
source	<xs:element name="se_Status" type="xs:string"/>

element FullCapacitor/se_Kv

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="se_Kv" type="xs:decimal"/>

element FullCapacitor/se_Mvar

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="se_Mvar" type="xs:decimal"/>

element FullCapacitor/rated_Mvar

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="rated_Mvar" type="xs:decimal"/>

element FullCapacitor/rated_Mvar_PJM

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="rated_Mvar_PJM" type="xs:decimal"/>

element FullCapacitor/mVar_Reserve

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="mVar_Reserve" type="xs:decimal"/>

element FullCapacitor/acknowledge_type

diagram
type	rrc:acknowledge_type
properties	content  simple
facets	Kind  Value  Annotation enumeration  enumeration  I enumeration  X enumeration  U
source	<xs:element name="acknowledge_type" type="rrc:acknowledge_type"/>

complexType fullEquipment

diagram
namespace	http://www.pjm.com/external/schemas/rrc/v2
children	Capacitor Reactor SVC Unit
used by	element  rrcFull/equipment
source	<xs:complexType name="fullEquipment">   <xs:choice minOccurs="0" maxOccurs="unbounded">     <xs:element name="Capacitor" type="rrc:FullCapacitor"/>     <xs:element name="Reactor" type="rrc:FullReactor"/>     <xs:element name="SVC" type="rrc:FullSVC"/>     <xs:element name="Unit" type="rrc:FullUnit"/>   </xs:choice> </xs:complexType>

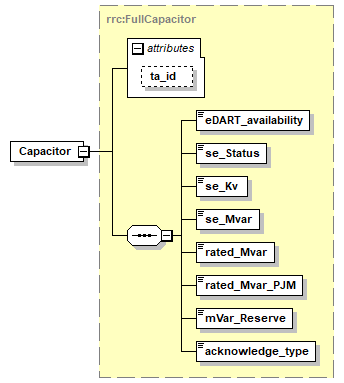

element fullEquipment/Capacitor

diagram
type	rrc:FullCapacitor
properties	content  complex
children	eDART_availability se_Status se_Kv se_Mvar rated_Mvar rated_Mvar_PJM mVar_Reserve acknowledge_type
attributes	Name   Type   Use   Default   Fixed   Annotation ta_id   xs:integer
source	<xs:element name="Capacitor" type="rrc:FullCapacitor"/>

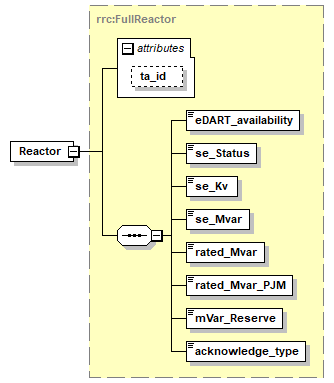

element fullEquipment/Reactor

diagram
type	rrc:FullReactor
properties	content  complex
children	eDART_availability se_Status se_Kv se_Mvar rated_Mvar rated_Mvar_PJM mVar_Reserve acknowledge_type
attributes	Name   Type   Use   Default   Fixed   Annotation ta_id   xs:integer
source	<xs:element name="Reactor" type="rrc:FullReactor"/>

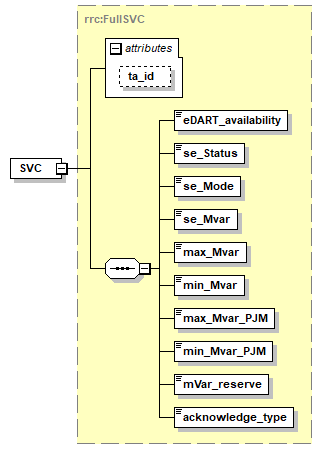

element fullEquipment/SVC

diagram
type	rrc:FullSVC
properties	content  complex
children	eDART_availability se_Status se_Mode se_Mvar max_Mvar min_Mvar max_Mvar_PJM min_Mvar_PJM mVar_reserve acknowledge_type
attributes	Name   Type   Use   Default   Fixed   Annotation ta_id   xs:integer
source	<xs:element name="SVC" type="rrc:FullSVC"/>

element fullEquipment/Unit

diagram
type	rrc:FullUnit
properties	content  complex
children	eDART_availability avr_Auto unit_Status avr_Status se_Mw se_Mvar max_Mvar_PJM min_Mvar_PJM mVar_reserve
attributes	Name   Type   Use   Default   Fixed   Annotation ta_id   xs:integer
source	<xs:element name="Unit" type="rrc:FullUnit"/>

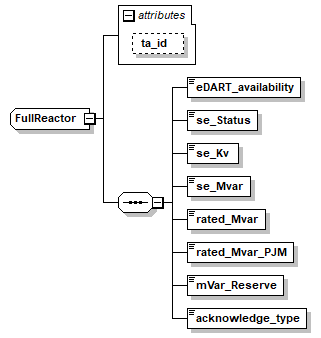

complexType FullReactor

diagram
namespace	http://www.pjm.com/external/schemas/rrc/v2
children	eDART_availability se_Status se_Kv se_Mvar rated_Mvar rated_Mvar_PJM mVar_Reserve acknowledge_type
used by	element  fullEquipment/Reactor
attributes	Name   Type   Use   Default   Fixed   Annotation ta_id   xs:integer
source	<xs:complexType name="FullReactor">   <xs:sequence>     <xs:element name="eDART_availability" type="xs:boolean"/>     <xs:element name="se_Status" type="xs:string"/>     <xs:element name="se_Kv" type="xs:decimal"/>     <xs:element name="se_Mvar" type="xs:decimal"/>     <xs:element name="rated_Mvar" type="xs:decimal"/>     <xs:element name="rated_Mvar_PJM" type="xs:decimal"/>     <xs:element name="mVar_Reserve" type="xs:decimal"/>     <xs:element name="acknowledge_type" type="rrc:acknowledge_type"/>   </xs:sequence>   <xs:attribute name="ta_id" type="xs:integer"/> </xs:complexType>

attribute FullReactor/@ta_id

type	xs:integer
source	<xs:attribute name="ta_id" type="xs:integer"/>

element FullReactor/eDART_availability

diagram
type	xs:boolean
properties	content  simple
source	<xs:element name="eDART_availability" type="xs:boolean"/>

element FullReactor/se_Status

diagram
type	xs:string
properties	content  simple
source	<xs:element name="se_Status" type="xs:string"/>

element FullReactor/se_Kv

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="se_Kv" type="xs:decimal"/>

element FullReactor/se_Mvar

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="se_Mvar" type="xs:decimal"/>

element FullReactor/rated_Mvar

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="rated_Mvar" type="xs:decimal"/>

element FullReactor/rated_Mvar_PJM

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="rated_Mvar_PJM" type="xs:decimal"/>

element FullReactor/mVar_Reserve

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="mVar_Reserve" type="xs:decimal"/>

element FullReactor/acknowledge_type

diagram
type	rrc:acknowledge_type
properties	content  simple
facets	Kind  Value  Annotation enumeration  enumeration  I enumeration  X enumeration  U
source	<xs:element name="acknowledge_type" type="rrc:acknowledge_type"/>

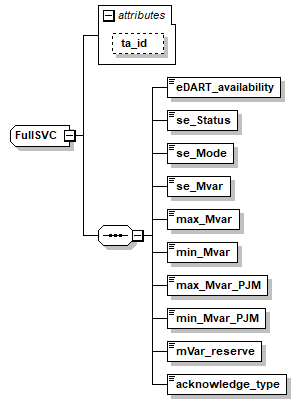

complexType FullSVC

diagram
namespace	http://www.pjm.com/external/schemas/rrc/v2
children	eDART_availability se_Status se_Mode se_Mvar max_Mvar min_Mvar max_Mvar_PJM min_Mvar_PJM mVar_reserve acknowledge_type
used by	element  fullEquipment/SVC
attributes	Name   Type   Use   Default   Fixed   Annotation ta_id   xs:integer
source	<xs:complexType name="FullSVC">   <xs:sequence>     <xs:element name="eDART_availability" type="xs:boolean"/>     <xs:element name="se_Status" type="xs:string"/>     <xs:element name="se_Mode" type="xs:string"/>     <xs:element name="se_Mvar" type="xs:decimal"/>     <xs:element name="max_Mvar" type="xs:decimal"/>     <xs:element name="min_Mvar" type="xs:decimal"/>     <xs:element name="max_Mvar_PJM" type="xs:decimal"/>     <xs:element name="min_Mvar_PJM" type="xs:decimal"/>     <xs:element name="mVar_reserve" type="xs:decimal"/>     <xs:element name="acknowledge_type" type="rrc:acknowledge_type"/>   </xs:sequence>   <xs:attribute name="ta_id" type="xs:integer"/> </xs:complexType>

attribute FullSVC/@ta_id

type	xs:integer
source	<xs:attribute name="ta_id" type="xs:integer"/>

element FullSVC/eDART_availability

diagram
type	xs:boolean
properties	content  simple
source	<xs:element name="eDART_availability" type="xs:boolean"/>

element FullSVC/se_Status

diagram
type	xs:string
properties	content  simple
source	<xs:element name="se_Status" type="xs:string"/>

element FullSVC/se_Mode

diagram
type	xs:string
properties	content  simple
source	<xs:element name="se_Mode" type="xs:string"/>

element FullSVC/se_Mvar

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="se_Mvar" type="xs:decimal"/>

element FullSVC/max_Mvar

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="max_Mvar" type="xs:decimal"/>

element FullSVC/min_Mvar

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="min_Mvar" type="xs:decimal"/>

element FullSVC/max_Mvar_PJM

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="max_Mvar_PJM" type="xs:decimal"/>

element FullSVC/min_Mvar_PJM

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="min_Mvar_PJM" type="xs:decimal"/>

element FullSVC/mVar_reserve

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="mVar_reserve" type="xs:decimal"/>

element FullSVC/acknowledge_type

diagram
type	rrc:acknowledge_type
properties	content  simple
facets	Kind  Value  Annotation enumeration  enumeration  I enumeration  X enumeration  U
source	<xs:element name="acknowledge_type" type="rrc:acknowledge_type"/>

complexType FullUnit

diagram
namespace	http://www.pjm.com/external/schemas/rrc/v2
children	eDART_availability avr_Auto unit_Status avr_Status se_Mw se_Mvar max_Mvar_PJM min_Mvar_PJM mVar_reserve
used by	element  fullEquipment/Unit
attributes	Name   Type   Use   Default   Fixed   Annotation ta_id   xs:integer
source	<xs:complexType name="FullUnit">   <xs:sequence>     <xs:element name="eDART_availability" type="xs:boolean"/>     <xs:element name="avr_Auto" type="xs:string"/>     <xs:element name="unit_Status" type="xs:string"/>     <xs:element name="avr_Status" type="xs:string"/>     <xs:element name="se_Mw" type="xs:decimal"/>     <xs:element name="se_Mvar" type="xs:decimal"/>     <xs:element name="max_Mvar_PJM" type="xs:decimal"/>     <xs:element name="min_Mvar_PJM" type="xs:decimal"/>     <xs:element name="mVar_reserve" type="xs:decimal"/>   </xs:sequence>   <xs:attribute name="ta_id" type="xs:integer"/> </xs:complexType>

attribute FullUnit/@ta_id

type	xs:integer
source	<xs:attribute name="ta_id" type="xs:integer"/>

element FullUnit/eDART_availability

diagram
type	xs:boolean
properties	content  simple
source	<xs:element name="eDART_availability" type="xs:boolean"/>

element FullUnit/avr_Auto

diagram
type	xs:string
properties	content  simple
source	<xs:element name="avr_Auto" type="xs:string"/>

element FullUnit/unit_Status

diagram
type	xs:string
properties	content  simple
source	<xs:element name="unit_Status" type="xs:string"/>

element FullUnit/avr_Status

diagram
type	xs:string
properties	content  simple
source	<xs:element name="avr_Status" type="xs:string"/>

element FullUnit/se_Mw

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="se_Mw" type="xs:decimal"/>

element FullUnit/se_Mvar

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="se_Mvar" type="xs:decimal"/>

element FullUnit/max_Mvar_PJM

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="max_Mvar_PJM" type="xs:decimal"/>

element FullUnit/min_Mvar_PJM

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="min_Mvar_PJM" type="xs:decimal"/>

element FullUnit/mVar_reserve

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="mVar_reserve" type="xs:decimal"/>

complexType ReviseCapacitor

diagram
namespace	http://www.pjm.com/external/schemas/rrc/v2
children	ratedMVAR
used by	element  rrcRevise/Capacitor
attributes	Name   Type   Use   Default   Fixed   Annotation ta_id   xs:integer
source	<xs:complexType name="ReviseCapacitor">   <xs:sequence>     <xs:element name="ratedMVAR" type="xs:decimal"/>   </xs:sequence>   <xs:attribute name="ta_id" type="xs:integer"/> </xs:complexType>

attribute ReviseCapacitor/@ta_id

type	xs:integer
source	<xs:attribute name="ta_id" type="xs:integer"/>

element ReviseCapacitor/ratedMVAR

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="ratedMVAR" type="xs:decimal"/>

complexType ReviseError

diagram
namespace	http://www.pjm.com/external/schemas/rrc/v2
children	message
used by	element  rrcReviseResponse/error
attributes	Name   Type   Use   Default   Fixed   Annotation ta_id   xs:integer   optional
source	<xs:complexType name="ReviseError">   <xs:sequence>     <xs:element name="message" type="xs:string"/>   </xs:sequence>   <xs:attribute name="ta_id" type="xs:integer" use="optional"/> </xs:complexType>

attribute ReviseError/@ta_id

type	xs:integer
properties	use  optional
source	<xs:attribute name="ta_id" type="xs:integer" use="optional"/>

element ReviseError/message

diagram
type	xs:string
properties	content  simple
source	<xs:element name="message" type="xs:string"/>

complexType ReviseReactor

diagram
namespace	http://www.pjm.com/external/schemas/rrc/v2
children	ratedMVAR
used by	element  rrcRevise/Reactor
attributes	Name   Type   Use   Default   Fixed   Annotation ta_id   xs:integer
source	<xs:complexType name="ReviseReactor">   <xs:sequence>     <xs:element name="ratedMVAR" type="xs:decimal"/>   </xs:sequence>   <xs:attribute name="ta_id" type="xs:integer"/> </xs:complexType>

attribute ReviseReactor/@ta_id

type	xs:integer
source	<xs:attribute name="ta_id" type="xs:integer"/>

element ReviseReactor/ratedMVAR

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="ratedMVAR" type="xs:decimal"/>

complexType ReviseStatus

diagram
namespace	http://www.pjm.com/external/schemas/rrc/v2
children	message
used by	element  rrcReviseResponse/status
attributes	Name   Type   Use   Default   Fixed   Annotation ta_id   xs:integer   optional
source	<xs:complexType name="ReviseStatus">   <xs:sequence>     <xs:element name="message" type="xs:string"/>   </xs:sequence>   <xs:attribute name="ta_id" type="xs:integer" use="optional"/> </xs:complexType>

attribute ReviseStatus/@ta_id

type	xs:integer
properties	use  optional
source	<xs:attribute name="ta_id" type="xs:integer" use="optional"/>

element ReviseStatus/message

diagram
type	xs:string
properties	content  simple
source	<xs:element name="message" type="xs:string"/>

complexType ReviseSVC

diagram
namespace	http://www.pjm.com/external/schemas/rrc/v2
children	maxMVAR minMVAR
used by	element  rrcRevise/SVC
attributes	Name   Type   Use   Default   Fixed   Annotation ta_id   xs:integer
source	<xs:complexType name="ReviseSVC">   <xs:sequence>     <xs:element name="maxMVAR" type="xs:decimal"/>     <xs:element name="minMVAR" type="xs:decimal"/>   </xs:sequence>   <xs:attribute name="ta_id" type="xs:integer"/> </xs:complexType>

attribute ReviseSVC/@ta_id

type	xs:integer
source	<xs:attribute name="ta_id" type="xs:integer"/>

element ReviseSVC/maxMVAR

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="maxMVAR" type="xs:decimal"/>

element ReviseSVC/minMVAR

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="minMVAR" type="xs:decimal"/>

complexType rrcByDate

diagram
namespace	http://www.pjm.com/external/schemas/rrc/v2
children	rrcIds
used by	element  rrcByDate
source	<xs:complexType name="rrcByDate">   <xs:sequence>     <xs:element name="rrcIds" minOccurs="0">       <xs:complexType>         <xs:sequence>           <xs:element name="rrcId" minOccurs="0" maxOccurs="unbounded">             <xs:complexType>               <xs:sequence>                 <xs:element name="id" type="xs:long"/>                 <xs:element name="requestTimestamp" type="xs:dateTime"/>               </xs:sequence>             </xs:complexType>           </xs:element>         </xs:sequence>         <xs:attribute name="startDate" type="xs:dateTime" use="required"/>         <xs:attribute name="endDate" type="xs:dateTime" use="required"/>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element rrcByDate/rrcIds

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	rrcId
attributes	Name   Type   Use   Default   Fixed   Annotation startDate   xs:dateTime   required         endDate   xs:dateTime   required
source	<xs:element name="rrcIds" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="rrcId" minOccurs="0" maxOccurs="unbounded">         <xs:complexType>           <xs:sequence>             <xs:element name="id" type="xs:long"/>             <xs:element name="requestTimestamp" type="xs:dateTime"/>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>     <xs:attribute name="startDate" type="xs:dateTime" use="required"/>     <xs:attribute name="endDate" type="xs:dateTime" use="required"/>   </xs:complexType> </xs:element>

attribute rrcByDate/rrcIds/@startDate

type	xs:dateTime
properties	use  required
source	<xs:attribute name="startDate" type="xs:dateTime" use="required"/>

attribute rrcByDate/rrcIds/@endDate

type	xs:dateTime
properties	use  required
source	<xs:attribute name="endDate" type="xs:dateTime" use="required"/>

element rrcByDate/rrcIds/rrcId

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
children	id requestTimestamp
source	<xs:element name="rrcId" minOccurs="0" maxOccurs="unbounded">   <xs:complexType>     <xs:sequence>       <xs:element name="id" type="xs:long"/>       <xs:element name="requestTimestamp" type="xs:dateTime"/>     </xs:sequence>   </xs:complexType> </xs:element>

element rrcByDate/rrcIds/rrcId/id

diagram
type	xs:long
properties	content  simple
source	<xs:element name="id" type="xs:long"/>

element rrcByDate/rrcIds/rrcId/requestTimestamp

diagram
type	xs:dateTime
properties	content  simple
source	<xs:element name="requestTimestamp" type="xs:dateTime"/>

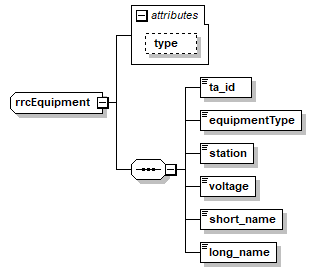

complexType rrcEquipment

diagram
namespace	http://www.pjm.com/external/schemas/rrc/v2
children	ta_id equipmentType station voltage short_name long_name
used by	element  rrcEquipmentList/rrcEquipment
attributes	Name   Type   Use   Default   Fixed   Annotation type   xs:string
source	<xs:complexType name="rrcEquipment">   <xs:sequence>     <xs:element name="ta_id" type="xs:integer"/>     <xs:element name="equipmentType" type="rrc:equipmentType" minOccurs="1" maxOccurs="1"/>     <xs:element name="station" type="xs:string"/>     <xs:element name="voltage" type="xs:string"/>     <xs:element name="short_name" type="xs:string"/>     <xs:element name="long_name" type="xs:string"/>   </xs:sequence>   <xs:attribute name="type" type="xs:string"/> </xs:complexType>

attribute rrcEquipment/@type

type	xs:string
source	<xs:attribute name="type" type="xs:string"/>

element rrcEquipment/ta_id

diagram
type	xs:integer
properties	content  simple
source	<xs:element name="ta_id" type="xs:integer"/>

element rrcEquipment/equipmentType

diagram
type	rrc:equipmentType
properties	content  simple
facets	Kind  Value  Annotation enumeration  GEN enumeration  CAP
source	<xs:element name="equipmentType" type="rrc:equipmentType" minOccurs="1" maxOccurs="1"/>

element rrcEquipment/station

diagram
type	xs:string
properties	content  simple
source	<xs:element name="station" type="xs:string"/>

element rrcEquipment/voltage

diagram
type	xs:string
properties	content  simple
source	<xs:element name="voltage" type="xs:string"/>

element rrcEquipment/short_name

diagram
type	xs:string
properties	content  simple
source	<xs:element name="short_name" type="xs:string"/>

element rrcEquipment/long_name

diagram
type	xs:string
properties	content  simple
source	<xs:element name="long_name" type="xs:string"/>

complexType rrcEquipmentList

diagram
namespace	http://www.pjm.com/external/schemas/rrc/v2
children	rrcEquipment
used by	element  rrcEquipmentList
source	<xs:complexType name="rrcEquipmentList">   <xs:sequence>     <xs:element name="rrcEquipment" type="rrc:rrcEquipment" minOccurs="0" maxOccurs="unbounded"/>   </xs:sequence> </xs:complexType>

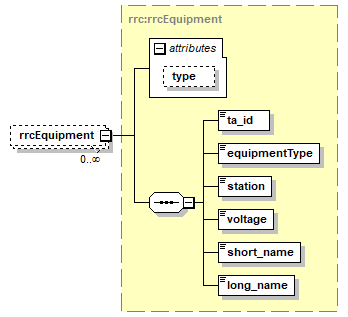

element rrcEquipmentList/rrcEquipment

diagram
type	rrc:rrcEquipment
properties	minOcc  0 maxOcc  unbounded content  complex
children	ta_id equipmentType station voltage short_name long_name
attributes	Name   Type   Use   Default   Fixed   Annotation type   xs:string
source	<xs:element name="rrcEquipment" type="rrc:rrcEquipment" minOccurs="0" maxOccurs="unbounded"/>

complexType rrcFull

diagram
namespace	http://www.pjm.com/external/schemas/rrc/v2
children	reportRequestId rrcType requestTimeStamp currentTimeStamp reportPostedTimestamp companyTimestamp description to_generic_note to_notes to_responses equipment
used by	element  rrcFull
source	<xs:complexType name="rrcFull">   <xs:sequence>     <xs:element name="reportRequestId" type="xs:integer"/>     <xs:element name="rrcType" type="xs:string"/>     <xs:element name="requestTimeStamp" type="xs:dateTime"/>     <xs:element name="currentTimeStamp" type="xs:dateTime"/>     <xs:element name="reportPostedTimestamp" type="xs:dateTime" minOccurs="0"/>     <xs:element name="companyTimestamp" type="xs:dateTime" minOccurs="0"/>     <xs:element name="description" type="xs:string" minOccurs="0"/>     <xs:element name="to_generic_note" type="xs:string" minOccurs="0"/>     <xs:element name="to_notes" minOccurs="0">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="unbounded">           <xs:element name="to_note">             <xs:complexType>               <xs:simpleContent>                 <xs:extension base="xs:string">                   <xs:attribute name="to_name" type="xs:string"/>                 </xs:extension>               </xs:simpleContent>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="to_responses" minOccurs="0">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="unbounded">           <xs:element name="to_response">             <xs:complexType>               <xs:simpleContent>                 <xs:extension base="xs:string">                   <xs:attribute name="to_name" type="xs:string" use="required"/>                 </xs:extension>               </xs:simpleContent>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="equipment" type="rrc:fullEquipment"/>   </xs:sequence> </xs:complexType>

element rrcFull/reportRequestId

diagram
type	xs:integer
properties	content  simple
source	<xs:element name="reportRequestId" type="xs:integer"/>

element rrcFull/rrcType

diagram
type	xs:string
properties	content  simple
source	<xs:element name="rrcType" type="xs:string"/>

element rrcFull/requestTimeStamp

diagram
type	xs:dateTime
properties	content  simple
source	<xs:element name="requestTimeStamp" type="xs:dateTime"/>

element rrcFull/currentTimeStamp

diagram
type	xs:dateTime
properties	content  simple
source	<xs:element name="currentTimeStamp" type="xs:dateTime"/>

element rrcFull/reportPostedTimestamp

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="reportPostedTimestamp" type="xs:dateTime" minOccurs="0"/>

element rrcFull/companyTimestamp

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="companyTimestamp" type="xs:dateTime" minOccurs="0"/>

element rrcFull/description

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="description" type="xs:string" minOccurs="0"/>

element rrcFull/to_generic_note

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="to_generic_note" type="xs:string" minOccurs="0"/>

element rrcFull/to_notes

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	to_note
source	<xs:element name="to_notes" minOccurs="0">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="unbounded">       <xs:element name="to_note">         <xs:complexType>           <xs:simpleContent>             <xs:extension base="xs:string">               <xs:attribute name="to_name" type="xs:string"/>             </xs:extension>           </xs:simpleContent>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element rrcFull/to_notes/to_note

diagram
type	extension of xs:string
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation to_name   xs:string
source	<xs:element name="to_note">   <xs:complexType>     <xs:simpleContent>       <xs:extension base="xs:string">         <xs:attribute name="to_name" type="xs:string"/>       </xs:extension>     </xs:simpleContent>   </xs:complexType> </xs:element>

attribute rrcFull/to_notes/to_note/@to_name

type	xs:string
source	<xs:attribute name="to_name" type="xs:string"/>

element rrcFull/to_responses

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	to_response
source	<xs:element name="to_responses" minOccurs="0">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="unbounded">       <xs:element name="to_response">         <xs:complexType>           <xs:simpleContent>             <xs:extension base="xs:string">               <xs:attribute name="to_name" type="xs:string" use="required"/>             </xs:extension>           </xs:simpleContent>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element rrcFull/to_responses/to_response

diagram
type	extension of xs:string
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation to_name   xs:string   required
source	<xs:element name="to_response">   <xs:complexType>     <xs:simpleContent>       <xs:extension base="xs:string">         <xs:attribute name="to_name" type="xs:string" use="required"/>       </xs:extension>     </xs:simpleContent>   </xs:complexType> </xs:element>

attribute rrcFull/to_responses/to_response/@to_name

type	xs:string
properties	use  required
source	<xs:attribute name="to_name" type="xs:string" use="required"/>

element rrcFull/equipment

diagram
type	rrc:fullEquipment
properties	content  complex
children	Capacitor Reactor SVC Unit
source	<xs:element name="equipment" type="rrc:fullEquipment"/>

complexType rrcRevise

diagram
namespace	http://www.pjm.com/external/schemas/rrc/v2
children	reportRequestId to_responses acknowledgeAllCapacitors acknowledgeAllReactors acknowledgeAllSVC Capacitor Reactor SVC
used by	element  rrcRevise
source	<xs:complexType name="rrcRevise">   <xs:sequence>     <xs:element name="reportRequestId" type="xs:integer" minOccurs="0"/>     <xs:element name="to_responses" minOccurs="0">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="unbounded">           <xs:element name="to_response">             <xs:complexType>               <xs:simpleContent>                 <xs:extension base="xs:string">                   <xs:attribute name="to_name" type="xs:string" use="required"/>                 </xs:extension>               </xs:simpleContent>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="acknowledgeAllCapacitors" type="xs:boolean" minOccurs="0"/>     <xs:element name="acknowledgeAllReactors" type="xs:boolean" minOccurs="0"/>     <xs:element name="acknowledgeAllSVC" type="xs:boolean" minOccurs="0"/>     <xs:choice minOccurs="0" maxOccurs="unbounded">       <xs:element name="Capacitor" type="rrc:ReviseCapacitor" minOccurs="0" maxOccurs="unbounded"/>       <xs:element name="Reactor" type="rrc:ReviseReactor" minOccurs="0" maxOccurs="unbounded"/>       <xs:element name="SVC" type="rrc:ReviseSVC" minOccurs="0" maxOccurs="unbounded"/>     </xs:choice>   </xs:sequence> </xs:complexType>

element rrcRevise/reportRequestId

diagram
type	xs:integer
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="reportRequestId" type="xs:integer" minOccurs="0"/>

element rrcRevise/to_responses

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	to_response
source	<xs:element name="to_responses" minOccurs="0">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="unbounded">       <xs:element name="to_response">         <xs:complexType>           <xs:simpleContent>             <xs:extension base="xs:string">               <xs:attribute name="to_name" type="xs:string" use="required"/>             </xs:extension>           </xs:simpleContent>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element rrcRevise/to_responses/to_response

diagram
type	extension of xs:string
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation to_name   xs:string   required
source	<xs:element name="to_response">   <xs:complexType>     <xs:simpleContent>       <xs:extension base="xs:string">         <xs:attribute name="to_name" type="xs:string" use="required"/>       </xs:extension>     </xs:simpleContent>   </xs:complexType> </xs:element>

attribute rrcRevise/to_responses/to_response/@to_name

type	xs:string
properties	use  required
source	<xs:attribute name="to_name" type="xs:string" use="required"/>

element rrcRevise/acknowledgeAllCapacitors

diagram
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="acknowledgeAllCapacitors" type="xs:boolean" minOccurs="0"/>

element rrcRevise/acknowledgeAllReactors

diagram
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="acknowledgeAllReactors" type="xs:boolean" minOccurs="0"/>

element rrcRevise/acknowledgeAllSVC

diagram
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="acknowledgeAllSVC" type="xs:boolean" minOccurs="0"/>

element rrcRevise/Capacitor

diagram
type	rrc:ReviseCapacitor
properties	minOcc  0 maxOcc  unbounded content  complex
children	ratedMVAR
attributes	Name   Type   Use   Default   Fixed   Annotation ta_id   xs:integer
source	<xs:element name="Capacitor" type="rrc:ReviseCapacitor" minOccurs="0" maxOccurs="unbounded"/>

element rrcRevise/Reactor

diagram
type	rrc:ReviseReactor
properties	minOcc  0 maxOcc  unbounded content  complex
children	ratedMVAR
attributes	Name   Type   Use   Default   Fixed   Annotation ta_id   xs:integer
source	<xs:element name="Reactor" type="rrc:ReviseReactor" minOccurs="0" maxOccurs="unbounded"/>

element rrcRevise/SVC

diagram
type	rrc:ReviseSVC
properties	minOcc  0 maxOcc  unbounded content  complex
children	maxMVAR minMVAR
attributes	Name   Type   Use   Default   Fixed   Annotation ta_id   xs:integer
source	<xs:element name="SVC" type="rrc:ReviseSVC" minOccurs="0" maxOccurs="unbounded"/>

complexType rrcReviseResponse

diagram
namespace	http://www.pjm.com/external/schemas/rrc/v2
children	status error
used by	element  rrcReviseResponse
source	<xs:complexType name="rrcReviseResponse">   <xs:choice maxOccurs="unbounded">     <xs:element name="status" type="rrc:ReviseStatus"/>     <xs:element name="error" type="rrc:ReviseError"/>   </xs:choice> </xs:complexType>

element rrcReviseResponse/status

diagram
type	rrc:ReviseStatus
properties	content  complex
children	message
attributes	Name   Type   Use   Default   Fixed   Annotation ta_id   xs:integer   optional
source	<xs:element name="status" type="rrc:ReviseStatus"/>

element rrcReviseResponse/error

diagram
type	rrc:ReviseError
properties	content  complex
children	message
attributes	Name   Type   Use   Default   Fixed   Annotation ta_id   xs:integer   optional
source	<xs:element name="error" type="rrc:ReviseError"/>

complexType rrcSelfCheckDownload

diagram
namespace	http://www.pjm.com/external/schemas/rrc/v2
children	last_updated_timestamp current_timestamp type equipment
used by	element  rrcSelfCheckDownload
source	<xs:complexType name="rrcSelfCheckDownload">   <xs:sequence>     <xs:element name="last_updated_timestamp" type="xs:dateTime"/>     <xs:element name="current_timestamp" type="xs:dateTime"/>     <!-- Peak or Valley -->     <xs:element name="type" type="xs:string"/>     <xs:element name="equipment" type="rrc:SelfCheckEquipment"/>   </xs:sequence> </xs:complexType>

element rrcSelfCheckDownload/last_updated_timestamp

diagram
type	xs:dateTime
properties	content  simple
source	<xs:element name="last_updated_timestamp" type="xs:dateTime"/>

element rrcSelfCheckDownload/current_timestamp

diagram
type	xs:dateTime
properties	content  simple
source	<xs:element name="current_timestamp" type="xs:dateTime"/>

element rrcSelfCheckDownload/type

diagram
type	xs:string
properties	content  simple
source	<xs:element name="type" type="xs:string"/>

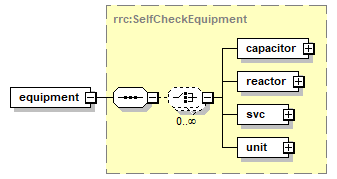

element rrcSelfCheckDownload/equipment

diagram
type	rrc:SelfCheckEquipment
properties	content  complex
children	capacitor reactor svc unit
source	<xs:element name="equipment" type="rrc:SelfCheckEquipment"/>

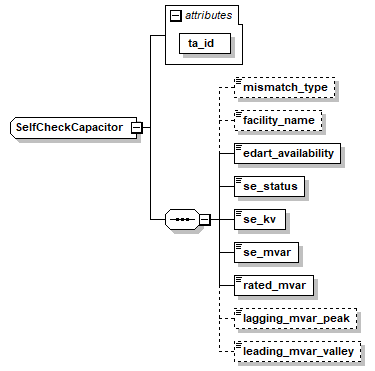

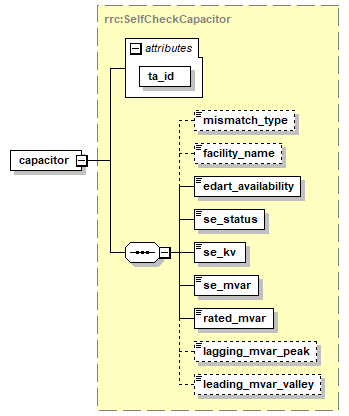

complexType SelfCheckCapacitor

diagram
namespace	http://www.pjm.com/external/schemas/rrc/v2
children	mismatch_type facility_name edart_availability se_status se_kv se_mvar rated_mvar lagging_mvar_peak leading_mvar_valley
used by	element  SelfCheckEquipment/capacitor
attributes	Name   Type   Use   Default   Fixed   Annotation ta_id   xs:decimal   required
source	<xs:complexType name="SelfCheckCapacitor">   <xs:sequence>     <xs:element name="mismatch_type" type="xs:string" minOccurs="0"/>     <xs:element name="facility_name" type="xs:string" minOccurs="0"/>     <xs:element name="edart_availability" type="xs:boolean"/>     <xs:element name="se_status" type="xs:string"/>     <xs:element name="se_kv" type="xs:decimal"/>     <xs:element name="se_mvar" type="xs:decimal"/>     <xs:element name="rated_mvar" type="xs:decimal"/>     <xs:element name="lagging_mvar_peak" type="xs:decimal" minOccurs="0"/>     <xs:element name="leading_mvar_valley" type="xs:decimal" minOccurs="0"/>   </xs:sequence>   <xs:attribute name="ta_id" type="xs:decimal" use="required"/> </xs:complexType>

attribute SelfCheckCapacitor/@ta_id

type	xs:decimal
properties	use  required
source	<xs:attribute name="ta_id" type="xs:decimal" use="required"/>

element SelfCheckCapacitor/mismatch_type

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="mismatch_type" type="xs:string" minOccurs="0"/>

element SelfCheckCapacitor/facility_name

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="facility_name" type="xs:string" minOccurs="0"/>

element SelfCheckCapacitor/edart_availability

diagram
type	xs:boolean
properties	content  simple
source	<xs:element name="edart_availability" type="xs:boolean"/>

element SelfCheckCapacitor/se_status

diagram
type	xs:string
properties	content  simple
source	<xs:element name="se_status" type="xs:string"/>

element SelfCheckCapacitor/se_kv

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="se_kv" type="xs:decimal"/>

element SelfCheckCapacitor/se_mvar

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="se_mvar" type="xs:decimal"/>

element SelfCheckCapacitor/rated_mvar

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="rated_mvar" type="xs:decimal"/>

element SelfCheckCapacitor/lagging_mvar_peak

diagram
type	xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="lagging_mvar_peak" type="xs:decimal" minOccurs="0"/>

element SelfCheckCapacitor/leading_mvar_valley

diagram
type	xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="leading_mvar_valley" type="xs:decimal" minOccurs="0"/>

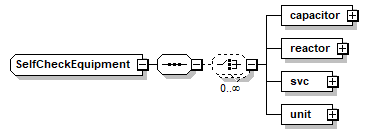

complexType SelfCheckEquipment

diagram
namespace	http://www.pjm.com/external/schemas/rrc/v2
children	capacitor reactor svc unit
used by	element  rrcSelfCheckDownload/equipment
source	<xs:complexType name="SelfCheckEquipment">   <xs:sequence>     <xs:choice minOccurs="0" maxOccurs="unbounded">       <xs:element name="capacitor" type="rrc:SelfCheckCapacitor"/>       <xs:element name="reactor" type="rrc:SelfCheckReactor"/>       <xs:element name="svc" type="rrc:SelfCheckSVC"/>       <xs:element name="unit" type="rrc:SelfCheckUnit"/>     </xs:choice>   </xs:sequence> </xs:complexType>

element SelfCheckEquipment/capacitor

diagram
type	rrc:SelfCheckCapacitor
properties	content  complex
children	mismatch_type facility_name edart_availability se_status se_kv se_mvar rated_mvar lagging_mvar_peak leading_mvar_valley
attributes	Name   Type   Use   Default   Fixed   Annotation ta_id   xs:decimal   required
source	<xs:element name="capacitor" type="rrc:SelfCheckCapacitor"/>

element SelfCheckEquipment/reactor

diagram
type	rrc:SelfCheckReactor
properties	content  complex
children	mismatch_type facility_name edart_availability se_status se_kv se_mvar rated_mvar lagging_mvar_peak leading_mvar_valley
attributes	Name   Type   Use   Default   Fixed   Annotation ta_id   xs:decimal   required
source	<xs:element name="reactor" type="rrc:SelfCheckReactor"/>

element SelfCheckEquipment/svc

diagram
type	rrc:SelfCheckSVC
properties	content  complex
children	mismatch_type facility_name edart_availability se_status se_mode se_mvar max_mvar min_mvar lagging_mvar_peak leading_mvar_valley
attributes	Name   Type   Use   Default   Fixed   Annotation ta_id   xs:decimal   required
source	<xs:element name="svc" type="rrc:SelfCheckSVC"/>

element SelfCheckEquipment/unit

diagram
type	rrc:SelfCheckUnit
properties	content  complex
children	mismatch_type facility_name edart_availability avr_auto unit_status avr_status se_mw se_mvar max_mvar min_mvar lagging_mvar_peak leading_mvar_valley
attributes	Name   Type   Use   Default   Fixed   Annotation ta_id   xs:decimal   required         unit_id   xs:long   required
source	<xs:element name="unit" type="rrc:SelfCheckUnit"/>

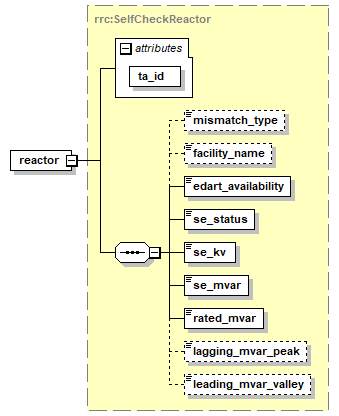

complexType SelfCheckReactor

diagram
namespace	http://www.pjm.com/external/schemas/rrc/v2
children	mismatch_type facility_name edart_availability se_status se_kv se_mvar rated_mvar lagging_mvar_peak leading_mvar_valley
used by	element  SelfCheckEquipment/reactor
attributes	Name   Type   Use   Default   Fixed   Annotation ta_id   xs:decimal   required
source	<xs:complexType name="SelfCheckReactor">   <xs:sequence>     <xs:element name="mismatch_type" type="xs:string" minOccurs="0"/>     <xs:element name="facility_name" type="xs:string" minOccurs="0"/>     <xs:element name="edart_availability" type="xs:boolean"/>     <xs:element name="se_status" type="xs:string"/>     <xs:element name="se_kv" type="xs:decimal"/>     <xs:element name="se_mvar" type="xs:decimal"/>     <xs:element name="rated_mvar" type="xs:decimal"/>     <xs:element name="lagging_mvar_peak" type="xs:decimal" minOccurs="0"/>     <xs:element name="leading_mvar_valley" type="xs:decimal" minOccurs="0"/>   </xs:sequence>   <xs:attribute name="ta_id" type="xs:decimal" use="required"/> </xs:complexType>

attribute SelfCheckReactor/@ta_id

type	xs:decimal
properties	use  required
source	<xs:attribute name="ta_id" type="xs:decimal" use="required"/>

element SelfCheckReactor/mismatch_type

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="mismatch_type" type="xs:string" minOccurs="0"/>

element SelfCheckReactor/facility_name

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="facility_name" type="xs:string" minOccurs="0"/>

element SelfCheckReactor/edart_availability

diagram
type	xs:boolean
properties	content  simple
source	<xs:element name="edart_availability" type="xs:boolean"/>

element SelfCheckReactor/se_status

diagram
type	xs:string
properties	content  simple
source	<xs:element name="se_status" type="xs:string"/>

element SelfCheckReactor/se_kv

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="se_kv" type="xs:decimal"/>

element SelfCheckReactor/se_mvar

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="se_mvar" type="xs:decimal"/>

element SelfCheckReactor/rated_mvar

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="rated_mvar" type="xs:decimal"/>

element SelfCheckReactor/lagging_mvar_peak

diagram
type	xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="lagging_mvar_peak" type="xs:decimal" minOccurs="0"/>

element SelfCheckReactor/leading_mvar_valley

diagram
type	xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="leading_mvar_valley" type="xs:decimal" minOccurs="0"/>

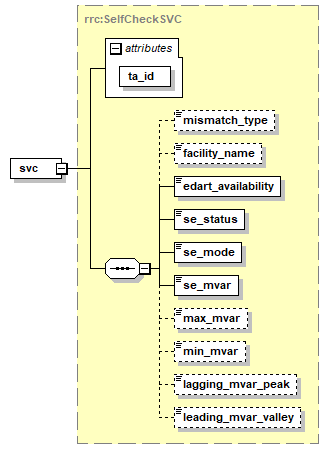

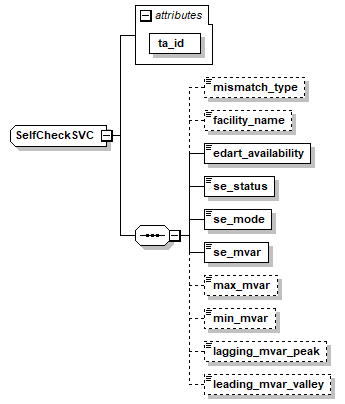

complexType SelfCheckSVC

diagram
namespace	http://www.pjm.com/external/schemas/rrc/v2
children	mismatch_type facility_name edart_availability se_status se_mode se_mvar max_mvar min_mvar lagging_mvar_peak leading_mvar_valley
used by	element  SelfCheckEquipment/svc
attributes	Name   Type   Use   Default   Fixed   Annotation ta_id   xs:decimal   required
source	<xs:complexType name="SelfCheckSVC">   <xs:sequence>     <xs:element name="mismatch_type" type="xs:string" minOccurs="0"/>     <xs:element name="facility_name" type="xs:string" minOccurs="0"/>     <xs:element name="edart_availability" type="xs:boolean"/>     <xs:element name="se_status" type="xs:string"/>     <xs:element name="se_mode" type="xs:string"/>     <xs:element name="se_mvar" type="xs:decimal"/>     <xs:element name="max_mvar" type="xs:decimal" minOccurs="0"/>     <xs:element name="min_mvar" type="xs:decimal" minOccurs="0"/>     <xs:element name="lagging_mvar_peak" type="xs:decimal" minOccurs="0"/>     <xs:element name="leading_mvar_valley" type="xs:decimal" minOccurs="0"/>   </xs:sequence>   <xs:attribute name="ta_id" type="xs:decimal" use="required"/> </xs:complexType>

attribute SelfCheckSVC/@ta_id

type	xs:decimal
properties	use  required
source	<xs:attribute name="ta_id" type="xs:decimal" use="required"/>

element SelfCheckSVC/mismatch_type

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="mismatch_type" type="xs:string" minOccurs="0"/>

element SelfCheckSVC/facility_name

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="facility_name" type="xs:string" minOccurs="0"/>

element SelfCheckSVC/edart_availability

diagram
type	xs:boolean
properties	content  simple
source	<xs:element name="edart_availability" type="xs:boolean"/>

element SelfCheckSVC/se_status

diagram
type	xs:string
properties	content  simple
source	<xs:element name="se_status" type="xs:string"/>

element SelfCheckSVC/se_mode

diagram
type	xs:string
properties	content  simple
source	<xs:element name="se_mode" type="xs:string"/>

element SelfCheckSVC/se_mvar

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="se_mvar" type="xs:decimal"/>

element SelfCheckSVC/max_mvar

diagram
type	xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="max_mvar" type="xs:decimal" minOccurs="0"/>

element SelfCheckSVC/min_mvar

diagram
type	xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="min_mvar" type="xs:decimal" minOccurs="0"/>

element SelfCheckSVC/lagging_mvar_peak

diagram
type	xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="lagging_mvar_peak" type="xs:decimal" minOccurs="0"/>

element SelfCheckSVC/leading_mvar_valley

diagram
type	xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="leading_mvar_valley" type="xs:decimal" minOccurs="0"/>

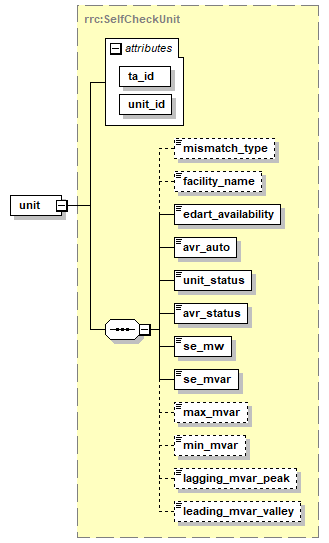

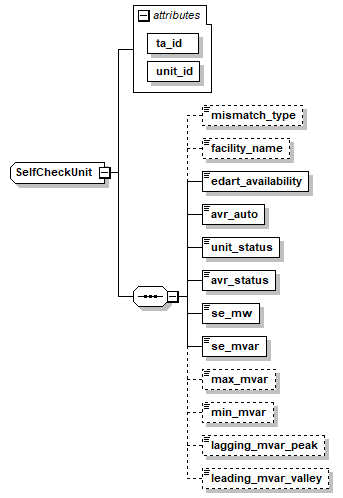

complexType SelfCheckUnit

diagram
namespace	http://www.pjm.com/external/schemas/rrc/v2
children	mismatch_type facility_name edart_availability avr_auto unit_status avr_status se_mw se_mvar max_mvar min_mvar lagging_mvar_peak leading_mvar_valley
used by	element  SelfCheckEquipment/unit
attributes	Name   Type   Use   Default   Fixed   Annotation ta_id   xs:decimal   required         unit_id   xs:long   required
source	<xs:complexType name="SelfCheckUnit">   <xs:sequence>     <xs:element name="mismatch_type" type="xs:string" minOccurs="0"/>     <xs:element name="facility_name" type="xs:string" minOccurs="0"/>     <xs:element name="edart_availability" type="xs:boolean"/>     <xs:element name="avr_auto" type="xs:string"/>     <xs:element name="unit_status" type="xs:string"/>     <xs:element name="avr_status" type="xs:string"/>     <xs:element name="se_mw" type="xs:decimal"/>     <xs:element name="se_mvar" type="xs:decimal"/>     <xs:element name="max_mvar" type="xs:decimal" minOccurs="0"/>     <xs:element name="min_mvar" type="xs:decimal" minOccurs="0"/>     <xs:element name="lagging_mvar_peak" type="xs:decimal" minOccurs="0"/>     <xs:element name="leading_mvar_valley" type="xs:decimal" minOccurs="0"/>   </xs:sequence>   <xs:attribute name="ta_id" type="xs:decimal" use="required"/>   <xs:attribute name="unit_id" type="xs:long" use="required"/> </xs:complexType>

attribute SelfCheckUnit/@ta_id

type	xs:decimal
properties	use  required
source	<xs:attribute name="ta_id" type="xs:decimal" use="required"/>

attribute SelfCheckUnit/@unit_id

type	xs:long
properties	use  required
source	<xs:attribute name="unit_id" type="xs:long" use="required"/>

element SelfCheckUnit/mismatch_type

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="mismatch_type" type="xs:string" minOccurs="0"/>

element SelfCheckUnit/facility_name

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="facility_name" type="xs:string" minOccurs="0"/>

element SelfCheckUnit/edart_availability

diagram
type	xs:boolean
properties	content  simple
source	<xs:element name="edart_availability" type="xs:boolean"/>

element SelfCheckUnit/avr_auto

diagram
type	xs:string
properties	content  simple
source	<xs:element name="avr_auto" type="xs:string"/>

element SelfCheckUnit/unit_status

diagram
type	xs:string
properties	content  simple
source	<xs:element name="unit_status" type="xs:string"/>

element SelfCheckUnit/avr_status

diagram
type	xs:string
properties	content  simple
source	<xs:element name="avr_status" type="xs:string"/>

element SelfCheckUnit/se_mw

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="se_mw" type="xs:decimal"/>

element SelfCheckUnit/se_mvar

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="se_mvar" type="xs:decimal"/>

element SelfCheckUnit/max_mvar

diagram
type	xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="max_mvar" type="xs:decimal" minOccurs="0"/>

element SelfCheckUnit/min_mvar

diagram
type	xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="min_mvar" type="xs:decimal" minOccurs="0"/>

element SelfCheckUnit/lagging_mvar_peak

diagram
type	xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="lagging_mvar_peak" type="xs:decimal" minOccurs="0"/>

element SelfCheckUnit/leading_mvar_valley

diagram
type	xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="leading_mvar_valley" type="xs:decimal" minOccurs="0"/>

simpleType acknowledge_type

namespace	http://www.pjm.com/external/schemas/rrc/v2
type	restriction of xs:string
properties	base  xs:string
used by	elements  FullCapacitor/acknowledge_type FullReactor/acknowledge_type FullSVC/acknowledge_type
facets	Kind  Value  Annotation enumeration  enumeration  I enumeration  X enumeration  U
source	<xs:simpleType name="acknowledge_type">   <xs:restriction base="xs:string">     <xs:enumeration value=""/>     <xs:enumeration value="I"/>     <xs:enumeration value="X"/>     <xs:enumeration value="U"/>   </xs:restriction> </xs:simpleType>

simpleType equipmentType

namespace	http://www.pjm.com/external/schemas/rrc/v2
type	restriction of xs:string
properties	base  xs:string
used by	element  rrcEquipment/equipmentType
facets	Kind  Value  Annotation enumeration  GEN enumeration  CAP
source	<xs:simpleType name="equipmentType">   <xs:restriction base="xs:string">     <xs:enumeration value="GEN"/>     <xs:enumeration value="CAP"/>   </xs:restriction> </xs:simpleType>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
