Schema termrxb.xsd

schema location:
attributeFormDefault:
elementFormDefault:

Elements	Complex types
edart	adjustmentType

element edart

diagram
properties	content  complex
children	facility
source	<xs:element name="edart">   <xs:complexType>     <xs:sequence>       <xs:element name="facility" minOccurs="0" maxOccurs="unbounded">         <xs:complexType>           <xs:sequence>             <xs:element name="company" type="xs:string"/>             <xs:element name="type" type="xs:string"/>             <xs:element name="station" type="xs:string"/>             <xs:element name="voltage" type="xs:string"/>             <xs:element name="equipment" type="xs:string"/>             <xs:element name="adjustment">               <xs:complexType>                 <xs:sequence>                   <xs:element name="r" type="adjustmentType"/>                   <xs:element name="x" type="adjustmentType"/>                   <xs:element name="b" type="adjustmentType"/>                   <xs:element name="comment" type="xs:string"/>                   <xs:element name="pjmComment" type="xs:string"/>                   <xs:element name="status" type="xs:string"/>                   <xs:element name="lastUpdated" type="xs:string"/>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="adjustmentHistory" minOccurs="0">               <xs:complexType>                 <xs:sequence>                   <xs:element name="history" minOccurs="0" maxOccurs="unbounded">                     <xs:complexType>                       <xs:sequence>                         <xs:element name="status" type="xs:string"/>                         <xs:element name="userId" type="xs:string"/>                         <xs:element name="timestamp" type="xs:string"/>                       </xs:sequence>                     </xs:complexType>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element edart/facility

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
children	company type station voltage equipment adjustment adjustmentHistory
source	<xs:element name="facility" minOccurs="0" maxOccurs="unbounded">   <xs:complexType>     <xs:sequence>       <xs:element name="company" type="xs:string"/>       <xs:element name="type" type="xs:string"/>       <xs:element name="station" type="xs:string"/>       <xs:element name="voltage" type="xs:string"/>       <xs:element name="equipment" type="xs:string"/>       <xs:element name="adjustment">         <xs:complexType>           <xs:sequence>             <xs:element name="r" type="adjustmentType"/>             <xs:element name="x" type="adjustmentType"/>             <xs:element name="b" type="adjustmentType"/>             <xs:element name="comment" type="xs:string"/>             <xs:element name="pjmComment" type="xs:string"/>             <xs:element name="status" type="xs:string"/>             <xs:element name="lastUpdated" type="xs:string"/>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="adjustmentHistory" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:element name="history" minOccurs="0" maxOccurs="unbounded">               <xs:complexType>                 <xs:sequence>                   <xs:element name="status" type="xs:string"/>                   <xs:element name="userId" type="xs:string"/>                   <xs:element name="timestamp" type="xs:string"/>                 </xs:sequence>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element edart/facility/company

diagram
type	xs:string
properties	content  simple
source	<xs:element name="company" type="xs:string"/>

element edart/facility/type

diagram
type	xs:string
properties	content  simple
source	<xs:element name="type" type="xs:string"/>

element edart/facility/station

diagram
type	xs:string
properties	content  simple
source	<xs:element name="station" type="xs:string"/>

element edart/facility/voltage

diagram
type	xs:string
properties	content  simple
source	<xs:element name="voltage" type="xs:string"/>

element edart/facility/equipment

diagram
type	xs:string
properties	content  simple
source	<xs:element name="equipment" type="xs:string"/>

element edart/facility/adjustment

diagram
properties	content  complex
children	r x b comment pjmComment status lastUpdated
source	<xs:element name="adjustment">   <xs:complexType>     <xs:sequence>       <xs:element name="r" type="adjustmentType"/>       <xs:element name="x" type="adjustmentType"/>       <xs:element name="b" type="adjustmentType"/>       <xs:element name="comment" type="xs:string"/>       <xs:element name="pjmComment" type="xs:string"/>       <xs:element name="status" type="xs:string"/>       <xs:element name="lastUpdated" type="xs:string"/>     </xs:sequence>   </xs:complexType> </xs:element>

element edart/facility/adjustment/r

diagram
type	adjustmentType
properties	content  complex
children	initial adjusted percentDifference
source	<xs:element name="r" type="adjustmentType"/>

element edart/facility/adjustment/x

diagram
type	adjustmentType
properties	content  complex
children	initial adjusted percentDifference
source	<xs:element name="x" type="adjustmentType"/>

element edart/facility/adjustment/b

diagram
type	adjustmentType
properties	content  complex
children	initial adjusted percentDifference
source	<xs:element name="b" type="adjustmentType"/>

element edart/facility/adjustment/comment

diagram
type	xs:string
properties	content  simple
source	<xs:element name="comment" type="xs:string"/>

element edart/facility/adjustment/pjmComment

diagram
type	xs:string
properties	content  simple
source	<xs:element name="pjmComment" type="xs:string"/>

element edart/facility/adjustment/status

diagram
type	xs:string
properties	content  simple
source	<xs:element name="status" type="xs:string"/>

element edart/facility/adjustment/lastUpdated

diagram
type	xs:string
properties	content  simple
source	<xs:element name="lastUpdated" type="xs:string"/>

element edart/facility/adjustmentHistory

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	history
source	<xs:element name="adjustmentHistory" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="history" minOccurs="0" maxOccurs="unbounded">         <xs:complexType>           <xs:sequence>             <xs:element name="status" type="xs:string"/>             <xs:element name="userId" type="xs:string"/>             <xs:element name="timestamp" type="xs:string"/>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element edart/facility/adjustmentHistory/history

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
children	status userId timestamp
source	<xs:element name="history" minOccurs="0" maxOccurs="unbounded">   <xs:complexType>     <xs:sequence>       <xs:element name="status" type="xs:string"/>       <xs:element name="userId" type="xs:string"/>       <xs:element name="timestamp" type="xs:string"/>     </xs:sequence>   </xs:complexType> </xs:element>

element edart/facility/adjustmentHistory/history/status

diagram
type	xs:string
properties	content  simple
source	<xs:element name="status" type="xs:string"/>

element edart/facility/adjustmentHistory/history/userId

diagram
type	xs:string
properties	content  simple
source	<xs:element name="userId" type="xs:string"/>

element edart/facility/adjustmentHistory/history/timestamp

diagram
type	xs:string
properties	content  simple
source	<xs:element name="timestamp" type="xs:string"/>

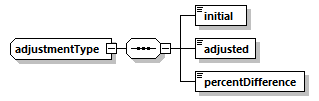

complexType adjustmentType

diagram
children	initial adjusted percentDifference
used by	elements  edart/facility/adjustment/b edart/facility/adjustment/r edart/facility/adjustment/x
source	<xs:complexType name="adjustmentType">   <xs:sequence>     <xs:element name="initial" type="xs:decimal"/>     <xs:element name="adjusted" type="xs:decimal"/>     <xs:element name="percentDifference" type="xs:double"/>   </xs:sequence> </xs:complexType>

element adjustmentType/initial

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="initial" type="xs:decimal"/>

element adjustmentType/adjusted

diagram
type	xs:decimal
properties	content  simple
source	<xs:element name="adjusted" type="xs:decimal"/>

element adjustmentType/percentDifference

diagram
type	xs:double
properties	content  simple
source	<xs:element name="percentDifference" type="xs:double"/>
