Schema transticnotifyreview.xsd

schema location:
attributeFormDefault:
elementFormDefault:	qualified

Elements	Complex types
conflict	equipment_default
cutInTask	FileList
date	modeling_requests
edart	ModelingRequest
interval_definition	restplan
time	takeout_restore

element conflict

diagram
properties	content  complex
children	ticket scenario
used by	element  edart/transticnotifyreview
source	<xsd:element name="conflict">   <xsd:complexType>     <xsd:sequence>       <xsd:element name="ticket" minOccurs="0" maxOccurs="unbounded">         <xsd:complexType>           <xsd:sequence>             <xsd:element name="ticket_type">               <xsd:simpleType>                 <xsd:restriction base="xsd:string">                   <xsd:enumeration value="transmission"/>                   <xsd:enumeration value="generation"/>                 </xsd:restriction>               </xsd:simpleType>             </xsd:element>             <xsd:element name="pjm_ticket_id" type="xsd:integer"/>             <xsd:element name="company_ticket_id" type="xsd:string" minOccurs="0"/>             <xsd:element name="scenario_id" type="xsd:integer"/>             <xsd:element name="status" type="xsd:string"/>             <xsd:element name="title" type="xsd:string"/>             <xsd:element name="mitigation_status" type="xsd:string" minOccurs="0"/>           </xsd:sequence>         </xsd:complexType>       </xsd:element>       <xsd:element name="scenario" minOccurs="0" maxOccurs="unbounded">         <xsd:complexType>           <xsd:sequence>             <xsd:element name="scenario_id" type="xsd:integer"/>             <xsd:element name="title" type="xsd:string"/>             <xsd:element name="mitigation_status" type="xsd:string" minOccurs="0"/>             <xsd:element name="potential_gap" minOccurs="0" maxOccurs="unbounded">               <xsd:complexType>                 <xsd:sequence>                   <xsd:element name="interval_start">                     <xsd:complexType>                       <xsd:sequence>                         <xsd:element ref="date"/>                         <xsd:element ref="time"/>                       </xsd:sequence>                     </xsd:complexType>                   </xsd:element>                   <xsd:element name="interval_end">                     <xsd:complexType>                       <xsd:sequence>                         <xsd:element ref="date"/>                         <xsd:element ref="time"/>                       </xsd:sequence>                     </xsd:complexType>                   </xsd:element>                   <xsd:element name="actual_out" type="xsd:int"/>                 </xsd:sequence>               </xsd:complexType>             </xsd:element>             <xsd:element name="gen_ticket" minOccurs="0" maxOccurs="unbounded">               <xsd:complexType>                 <xsd:sequence>                   <xsd:element name="pjm_ticket_id" type="xsd:integer"/>                   <xsd:element name="company_ticket_id" type="xsd:string" minOccurs="0"/>                 </xsd:sequence>               </xsd:complexType>             </xsd:element>           </xsd:sequence>         </xsd:complexType>       </xsd:element>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element conflict/ticket

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
children	ticket_type pjm_ticket_id company_ticket_id scenario_id status title mitigation_status
source	<xsd:element name="ticket" minOccurs="0" maxOccurs="unbounded">   <xsd:complexType>     <xsd:sequence>       <xsd:element name="ticket_type">         <xsd:simpleType>           <xsd:restriction base="xsd:string">             <xsd:enumeration value="transmission"/>             <xsd:enumeration value="generation"/>           </xsd:restriction>         </xsd:simpleType>       </xsd:element>       <xsd:element name="pjm_ticket_id" type="xsd:integer"/>       <xsd:element name="company_ticket_id" type="xsd:string" minOccurs="0"/>       <xsd:element name="scenario_id" type="xsd:integer"/>       <xsd:element name="status" type="xsd:string"/>       <xsd:element name="title" type="xsd:string"/>       <xsd:element name="mitigation_status" type="xsd:string" minOccurs="0"/>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element conflict/ticket/ticket_type

diagram
type	restriction of xsd:string
properties	content  simple
facets	Kind  Value  Annotation enumeration  transmission enumeration  generation
source	<xsd:element name="ticket_type">   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:enumeration value="transmission"/>       <xsd:enumeration value="generation"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element conflict/ticket/pjm_ticket_id

diagram
type	xsd:integer
properties	content  simple
source	<xsd:element name="pjm_ticket_id" type="xsd:integer"/>

element conflict/ticket/company_ticket_id

diagram
type	xsd:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="company_ticket_id" type="xsd:string" minOccurs="0"/>

element conflict/ticket/scenario_id

diagram
type	xsd:integer
properties	content  simple
source	<xsd:element name="scenario_id" type="xsd:integer"/>

element conflict/ticket/status

diagram
type	xsd:string
properties	content  simple
source	<xsd:element name="status" type="xsd:string"/>

element conflict/ticket/title

diagram
type	xsd:string
properties	content  simple
source	<xsd:element name="title" type="xsd:string"/>

element conflict/ticket/mitigation_status

diagram
type	xsd:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="mitigation_status" type="xsd:string" minOccurs="0"/>

element conflict/scenario

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
children	scenario_id title mitigation_status potential_gap gen_ticket
source	<xsd:element name="scenario" minOccurs="0" maxOccurs="unbounded">   <xsd:complexType>     <xsd:sequence>       <xsd:element name="scenario_id" type="xsd:integer"/>       <xsd:element name="title" type="xsd:string"/>       <xsd:element name="mitigation_status" type="xsd:string" minOccurs="0"/>       <xsd:element name="potential_gap" minOccurs="0" maxOccurs="unbounded">         <xsd:complexType>           <xsd:sequence>             <xsd:element name="interval_start">               <xsd:complexType>                 <xsd:sequence>                   <xsd:element ref="date"/>                   <xsd:element ref="time"/>                 </xsd:sequence>               </xsd:complexType>             </xsd:element>             <xsd:element name="interval_end">               <xsd:complexType>                 <xsd:sequence>                   <xsd:element ref="date"/>                   <xsd:element ref="time"/>                 </xsd:sequence>               </xsd:complexType>             </xsd:element>             <xsd:element name="actual_out" type="xsd:int"/>           </xsd:sequence>         </xsd:complexType>       </xsd:element>       <xsd:element name="gen_ticket" minOccurs="0" maxOccurs="unbounded">         <xsd:complexType>           <xsd:sequence>             <xsd:element name="pjm_ticket_id" type="xsd:integer"/>             <xsd:element name="company_ticket_id" type="xsd:string" minOccurs="0"/>           </xsd:sequence>         </xsd:complexType>       </xsd:element>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element conflict/scenario/scenario_id

diagram
type	xsd:integer
properties	content  simple
source	<xsd:element name="scenario_id" type="xsd:integer"/>

element conflict/scenario/title

diagram
type	xsd:string
properties	content  simple
source	<xsd:element name="title" type="xsd:string"/>

element conflict/scenario/mitigation_status

diagram
type	xsd:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="mitigation_status" type="xsd:string" minOccurs="0"/>

element conflict/scenario/potential_gap

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
children	interval_start interval_end actual_out
source	<xsd:element name="potential_gap" minOccurs="0" maxOccurs="unbounded">   <xsd:complexType>     <xsd:sequence>       <xsd:element name="interval_start">         <xsd:complexType>           <xsd:sequence>             <xsd:element ref="date"/>             <xsd:element ref="time"/>           </xsd:sequence>         </xsd:complexType>       </xsd:element>       <xsd:element name="interval_end">         <xsd:complexType>           <xsd:sequence>             <xsd:element ref="date"/>             <xsd:element ref="time"/>           </xsd:sequence>         </xsd:complexType>       </xsd:element>       <xsd:element name="actual_out" type="xsd:int"/>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element conflict/scenario/potential_gap/interval_start

diagram
properties	content  complex
children	date time
source	<xsd:element name="interval_start">   <xsd:complexType>     <xsd:sequence>       <xsd:element ref="date"/>       <xsd:element ref="time"/>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element conflict/scenario/potential_gap/interval_end

diagram
properties	content  complex
children	date time
source	<xsd:element name="interval_end">   <xsd:complexType>     <xsd:sequence>       <xsd:element ref="date"/>       <xsd:element ref="time"/>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element conflict/scenario/potential_gap/actual_out

diagram
type	xsd:int
properties	content  simple
source	<xsd:element name="actual_out" type="xsd:int"/>

element conflict/scenario/gen_ticket

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
children	pjm_ticket_id company_ticket_id
source	<xsd:element name="gen_ticket" minOccurs="0" maxOccurs="unbounded">   <xsd:complexType>     <xsd:sequence>       <xsd:element name="pjm_ticket_id" type="xsd:integer"/>       <xsd:element name="company_ticket_id" type="xsd:string" minOccurs="0"/>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element conflict/scenario/gen_ticket/pjm_ticket_id

diagram
type	xsd:integer
properties	content  simple
source	<xsd:element name="pjm_ticket_id" type="xsd:integer"/>

element conflict/scenario/gen_ticket/company_ticket_id

diagram
type	xsd:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="company_ticket_id" type="xsd:string" minOccurs="0"/>

element cutInTask

diagram
properties	content  complex
children	name status
used by	element  edart/transticnotifyreview/cutInInfo
source	<xsd:element name="cutInTask">   <xsd:complexType>     <xsd:sequence>       <xsd:element name="name" type="xsd:string"/>       <xsd:element name="status" type="xsd:string"/>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element cutInTask/name

diagram
type	xsd:string
properties	content  simple
source	<xsd:element name="name" type="xsd:string"/>

element cutInTask/status

diagram
type	xsd:string
properties	content  simple
source	<xsd:element name="status" type="xsd:string"/>

element date

diagram
type	xsd:string
properties	content  simple
used by	elements  edart/transticnotifyreview/company_actuals/interval_definition/interval_end interval_definition/interval_end conflict/scenario/potential_gap/interval_end edart/transticnotifyreview/company_actuals/interval_definition/interval_start interval_definition/interval_start conflict/scenario/potential_gap/interval_start
source	<xsd:element name="date" type="xsd:string"/>

element edart

diagram
properties	content  complex
children	error warning transticnotifyreview
source	<xsd:element name="edart">   <xsd:complexType>     <xsd:sequence>       <xsd:element name="error" type="xsd:string" minOccurs="0" maxOccurs="unbounded"/>       <xsd:element name="warning" type="xsd:string" minOccurs="0"/>       <xsd:element name="transticnotifyreview" maxOccurs="unbounded">         <xsd:complexType>           <xsd:sequence>             <xsd:element name="error" type="xsd:string" minOccurs="0" maxOccurs="unbounded"/>             <xsd:element name="company_name" type="xsd:string" minOccurs="0"/>             <xsd:element name="pjm_ticket_id" type="xsd:positiveInteger"/>             <xsd:element name="company_ticket_id" minOccurs="0">               <xsd:simpleType>                 <xsd:restriction base="xsd:string">                   <xsd:minLength value="1"/>                   <xsd:maxLength value="30"/>                 </xsd:restriction>               </xsd:simpleType>             </xsd:element>             <xsd:element name="description" type="xsd:string"/>             <xsd:element name="project_ids" type="xsd:string" minOccurs="0" maxOccurs="1"/>             <xsd:element name="pjm_comments" minOccurs="0">               <xsd:simpleType>                 <xsd:restriction base="xsd:string"/>               </xsd:simpleType>             </xsd:element>             <xsd:element name="at_risk" type="xsd:boolean" minOccurs="0"/>             <xsd:element name="availability" type="xsd:string"/>             <xsd:element name="lock_status" type="xsd:string"/>             <xsd:element name="ticket_status" type="xsd:string" minOccurs="0"/>             <xsd:element name="history_log" minOccurs="0">               <xsd:complexType>                 <xsd:sequence>                   <xsd:element name="ticketStatus" maxOccurs="unbounded">                     <xsd:complexType>                       <xsd:sequence>                         <xsd:element name="status" type="xsd:string"/>                         <xsd:element name="timestamp" type="xsd:string"/>                         <xsd:element name="user" type="xsd:string"/>                       </xsd:sequence>                     </xsd:complexType>                   </xsd:element>                 </xsd:sequence>               </xsd:complexType>             </xsd:element>             <xsd:element name="modeling_requests" type="modeling_requests"/>             <xsd:element ref="interval_definition"/>             <xsd:element name="outage_type">               <xsd:simpleType>                 <xsd:restriction base="xsd:string">                   <xsd:enumeration value="DailyIncludingWeekends"/>                   <xsd:enumeration value="DailyNoWeekends"/>                   <xsd:enumeration value="DailyWeekendsOnly"/>                   <xsd:enumeration value="ContinuousNoWeekends"/>                   <xsd:enumeration value="Continuous"/>                   <xsd:enumeration value="EMS Tripped"/>                 </xsd:restriction>               </xsd:simpleType>             </xsd:element>             <xsd:element name="ticket_type">               <xsd:complexType>                 <xsd:attribute name="info" type="xsd:boolean" use="optional"/>                 <xsd:attribute name="emergency" type="xsd:boolean" use="optional"/>                 <xsd:attribute name="auto_reclose" type="xsd:boolean" use="optional"/>                 <xsd:attribute name="potentially_incomplete" type="xsd:boolean"/>                 <xsd:attribute name="directBilling" type="xsd:boolean" use="optional"/>                 <xsd:attribute name="directBillingDecline" type="xsd:boolean" use="optional"/>               </xsd:complexType>             </xsd:element>             <xsd:element name="study_note" type="xsd:string" minOccurs="0"/>             <xsd:element name="equipment" maxOccurs="unbounded">               <xsd:complexType>                 <xsd:sequence>                   <xsd:element name="ta_id" type="xsd:string"/>                   <xsd:element name="warning" type="xsd:string" minOccurs="0"/>                   <xsd:element name="facility_information">                     <xsd:complexType>                       <xsd:sequence>                         <xsd:element name="type" type="xsd:string"/>                         <xsd:element name="station" type="xsd:string"/>                         <xsd:element name="voltage" type="xsd:string"/>                         <xsd:element name="short_name" type="xsd:string"/>                         <xsd:element name="long_name" type="xsd:string"/>                       </xsd:sequence>                     </xsd:complexType>                   </xsd:element>                   <xsd:element ref="interval_definition"/>                 </xsd:sequence>                 <xsd:attribute name="status" use="required">                   <xsd:simpleType>                     <xsd:restriction base="xsd:NMTOKEN">                       <xsd:enumeration value="C"/>                       <xsd:enumeration value="O"/>                       <xsd:enumeration value="E"/>                       <xsd:enumeration value="T"/>                       <xsd:enumeration value="R"/>                       <xsd:enumeration value="TR"/>                       <xsd:enumeration value="RE"/>                     </xsd:restriction>                   </xsd:simpleType>                 </xsd:attribute>                 <xsd:attribute name="primaryEquipFlag" type="xsd:boolean" use="optional"/>               </xsd:complexType>             </xsd:element>             <xsd:element name="active_dates" minOccurs="0">               <xsd:complexType>                 <xsd:sequence>                   <xsd:element ref="interval_definition" minOccurs="0" maxOccurs="unbounded"/>                 </xsd:sequence>               </xsd:complexType>             </xsd:element>             <xsd:element name="switch">               <xsd:complexType>                 <xsd:sequence>                   <xsd:element name="interval_definition">                     <xsd:complexType>                       <xsd:sequence>                         <xsd:element name="interval_start">                           <xsd:complexType>                             <xsd:sequence>                               <xsd:element name="date">                                 <xsd:simpleType>                                   <xsd:restriction base="xsd:string"/>                                 </xsd:simpleType>                               </xsd:element>                               <xsd:element name="time">                                 <xsd:simpleType>                                   <xsd:restriction base="xsd:string"/>                                 </xsd:simpleType>                               </xsd:element>                             </xsd:sequence>                           </xsd:complexType>                         </xsd:element>                       </xsd:sequence>                     </xsd:complexType>                   </xsd:element>                 </xsd:sequence>               </xsd:complexType>             </xsd:element>             <xsd:element name="congestionExpected" type="xsd:boolean" minOccurs="0"/>             <xsd:element name="submittedOnTime" type="xsd:boolean" minOccurs="0"/>             <xsd:element name="submitOnTimeComments" type="xsd:string" minOccurs="0"/>             <xsd:element name="vegetationFlag" type="xsd:boolean" minOccurs="0"/>             <xsd:element name="cause" maxOccurs="unbounded">               <xsd:complexType>                 <xsd:simpleContent>                   <xsd:extension base="xsd:int">                     <xsd:attribute name="description" type="xsd:string"/>                   </xsd:extension>                 </xsd:simpleContent>               </xsd:complexType>             </xsd:element>             <xsd:element name="totalSystemImpacts" type="xsd:integer" minOccurs="0"/>             <xsd:element name="unmitigatedSystemImpacts" type="xsd:integer" minOccurs="0"/>             <xsd:element name="systemImpacts" minOccurs="0">               <xsd:complexType>                 <xsd:sequence>                   <xsd:element name="impact" maxOccurs="unbounded">                     <xsd:complexType>                       <xsd:sequence>                         <xsd:element name="impactTitle" type="xsd:string"/>                         <xsd:element name="impactDescription" type="xsd:string"/>                         <xsd:element name="mitigationStatus" type="xsd:string"/>                       </xsd:sequence>                     </xsd:complexType>                   </xsd:element>                 </xsd:sequence>               </xsd:complexType>             </xsd:element>             <xsd:element name="cutInFlag" type="xsd:string" minOccurs="0"/>             <xsd:element name="cutInInfo" minOccurs="0">               <xsd:complexType>                 <xsd:sequence>                   <xsd:element name="cutInTitle" type="xsd:string" minOccurs="0"/>                   <xsd:element name="cutInStatus" type="xsd:string" minOccurs="0"/>                   <xsd:element ref="cutInTask" minOccurs="0" maxOccurs="unbounded"/>                 </xsd:sequence>               </xsd:complexType>             </xsd:element>             <xsd:element name="marketSensitiveFlag" type="xsd:boolean" minOccurs="0"/>             <xsd:element name="nerctads" minOccurs="0">               <xsd:complexType>                 <xsd:choice>                   <xsd:element name="planned">                     <xsd:simpleType>                       <xsd:restriction base="xsd:string">                         <xsd:enumeration value="Maintenance and Construction"/>                         <xsd:enumeration value="Other Planned Outage"/>                         <xsd:enumeration value="Third Party Request"/>                       </xsd:restriction>                     </xsd:simpleType>                   </xsd:element>                   <xsd:element name="operational">                     <xsd:simpleType>                       <xsd:restriction base="xsd:string">                         <xsd:enumeration value="Emergency"/>                         <xsd:enumeration value="Other Operational Outage"/>                         <xsd:enumeration value="System Operating Limit Mitigation, ex Voltage"/>                         <xsd:enumeration value="System Voltage Limit Mitigation"/>                         <xsd:enumeration value="N/A"/>                         <xsd:enumeration value="Human Error"/>                       </xsd:restriction>                     </xsd:simpleType>                   </xsd:element>                   <xsd:element name="autoReclose">                     <xsd:complexType>                       <xsd:sequence>                         <xsd:element name="faultType">                           <xsd:simpleType>                             <xsd:restriction base="xsd:integer">                               <xsd:minInclusive value="0"/>                               <xsd:maxInclusive value="5"/>                             </xsd:restriction>                           </xsd:simpleType>                         </xsd:element>                         <xsd:element name="outageInitCode">                           <xsd:simpleType>                             <xsd:restriction base="xsd:integer">                               <xsd:minInclusive value="0"/>                               <xsd:maxInclusive value="5"/>                             </xsd:restriction>                           </xsd:simpleType>                         </xsd:element>                         <xsd:element name="initCauseCode">                           <xsd:simpleType>                             <xsd:restriction base="xsd:integer">                               <xsd:minInclusive value="0"/>                               <xsd:maxInclusive value="17"/>                             </xsd:restriction>                           </xsd:simpleType>                         </xsd:element>                         <xsd:element name="sustainedCauseCode">                           <xsd:simpleType>                             <xsd:restriction base="xsd:integer">                               <xsd:minInclusive value="0"/>                               <xsd:maxInclusive value="18"/>                             </xsd:restriction>                           </xsd:simpleType>                         </xsd:element>                         <xsd:element name="outageModeCode">                           <xsd:simpleType>                             <xsd:restriction base="xsd:integer">                               <xsd:minInclusive value="0"/>                               <xsd:maxInclusive value="5"/>                             </xsd:restriction>                           </xsd:simpleType>                         </xsd:element>                       </xsd:sequence>                     </xsd:complexType>                   </xsd:element>                 </xsd:choice>               </xsd:complexType>             </xsd:element>             <xsd:element name="datelogs" minOccurs="0">               <xsd:complexType>                 <xsd:sequence>                   <xsd:element name="datelog" maxOccurs="unbounded">                     <xsd:complexType>                       <xsd:sequence>                         <xsd:element ref="interval_definition"/>                         <xsd:element name="timestamp" type="xsd:string"/>                         <xsd:element name="currentFlag" type="xsd:integer"/>                         <xsd:element name="user" type="xsd:string"/>                       </xsd:sequence>                     </xsd:complexType>                   </xsd:element>                 </xsd:sequence>               </xsd:complexType>             </xsd:element>             <xsd:element name="rtepQueueNumber" minOccurs="0">               <xsd:simpleType>                 <xsd:restriction base="xsd:string">                   <xsd:maxLength value="50"/>                 </xsd:restriction>               </xsd:simpleType>             </xsd:element>             <xsd:element name="totalConflicts" type="xsd:integer" minOccurs="0"/>             <xsd:element name="unmitigatedConflicts" type="xsd:integer" minOccurs="0"/>             <xsd:element ref="conflict" minOccurs="0" maxOccurs="2"/>             <xsd:element name="company_actuals" minOccurs="0">               <xsd:complexType>                 <xsd:sequence>                   <xsd:element name="interval_definition" maxOccurs="unbounded">                     <xsd:complexType>                       <xsd:sequence>                         <xsd:element name="interval_start">                           <xsd:complexType>                             <xsd:sequence>                               <xsd:element ref="date"/>                               <xsd:element ref="time"/>                             </xsd:sequence>                           </xsd:complexType>                         </xsd:element>                         <xsd:element name="interval_end" minOccurs="0">                           <xsd:complexType>                             <xsd:sequence>                               <xsd:element ref="date"/>                               <xsd:element ref="time"/>                             </xsd:sequence>                           </xsd:complexType>                         </xsd:element>                       </xsd:sequence>                     </xsd:complexType>                   </xsd:element>                 </xsd:sequence>               </xsd:complexType>             </xsd:element>             <xsd:element name="equipment_default" type="equipment_default"/>             <xsd:element name="takeout_restore" type="takeout_restore"/>             <xsd:element name="restplan" type="restplan" minOccurs="0"/>           </xsd:sequence>         </xsd:complexType>       </xsd:element>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element edart/error

diagram
type	xsd:string
properties	minOcc  0 maxOcc  unbounded content  simple
source	<xsd:element name="error" type="xsd:string" minOccurs="0" maxOccurs="unbounded"/>

element edart/warning

diagram
type	xsd:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="warning" type="xsd:string" minOccurs="0"/>

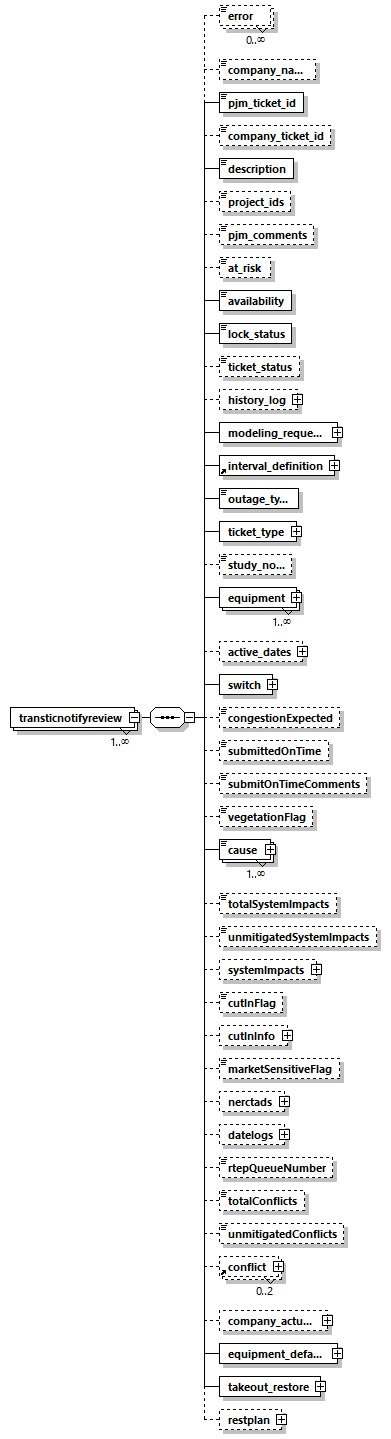

element edart/transticnotifyreview

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
children	error company_name pjm_ticket_id company_ticket_id description project_ids pjm_comments at_risk availability lock_status ticket_status history_log modeling_requests interval_definition outage_type ticket_type study_note equipment active_dates switch congestionExpected submittedOnTime submitOnTimeComments vegetationFlag cause totalSystemImpacts unmitigatedSystemImpacts systemImpacts cutInFlag cutInInfo marketSensitiveFlag nerctads datelogs rtepQueueNumber totalConflicts unmitigatedConflicts conflict company_actuals equipment_default takeout_restore restplan
source	<xsd:element name="transticnotifyreview" maxOccurs="unbounded">   <xsd:complexType>     <xsd:sequence>       <xsd:element name="error" type="xsd:string" minOccurs="0" maxOccurs="unbounded"/>       <xsd:element name="company_name" type="xsd:string" minOccurs="0"/>       <xsd:element name="pjm_ticket_id" type="xsd:positiveInteger"/>       <xsd:element name="company_ticket_id" minOccurs="0">         <xsd:simpleType>           <xsd:restriction base="xsd:string">             <xsd:minLength value="1"/>             <xsd:maxLength value="30"/>           </xsd:restriction>         </xsd:simpleType>       </xsd:element>       <xsd:element name="description" type="xsd:string"/>       <xsd:element name="project_ids" type="xsd:string" minOccurs="0" maxOccurs="1"/>       <xsd:element name="pjm_comments" minOccurs="0">         <xsd:simpleType>           <xsd:restriction base="xsd:string"/>         </xsd:simpleType>       </xsd:element>       <xsd:element name="at_risk" type="xsd:boolean" minOccurs="0"/>       <xsd:element name="availability" type="xsd:string"/>       <xsd:element name="lock_status" type="xsd:string"/>       <xsd:element name="ticket_status" type="xsd:string" minOccurs="0"/>       <xsd:element name="history_log" minOccurs="0">         <xsd:complexType>           <xsd:sequence>             <xsd:element name="ticketStatus" maxOccurs="unbounded">               <xsd:complexType>                 <xsd:sequence>                   <xsd:element name="status" type="xsd:string"/>                   <xsd:element name="timestamp" type="xsd:string"/>                   <xsd:element name="user" type="xsd:string"/>                 </xsd:sequence>               </xsd:complexType>             </xsd:element>           </xsd:sequence>         </xsd:complexType>       </xsd:element>       <xsd:element name="modeling_requests" type="modeling_requests"/>       <xsd:element ref="interval_definition"/>       <xsd:element name="outage_type">         <xsd:simpleType>           <xsd:restriction base="xsd:string">             <xsd:enumeration value="DailyIncludingWeekends"/>             <xsd:enumeration value="DailyNoWeekends"/>             <xsd:enumeration value="DailyWeekendsOnly"/>             <xsd:enumeration value="ContinuousNoWeekends"/>             <xsd:enumeration value="Continuous"/>             <xsd:enumeration value="EMS Tripped"/>           </xsd:restriction>         </xsd:simpleType>       </xsd:element>       <xsd:element name="ticket_type">         <xsd:complexType>           <xsd:attribute name="info" type="xsd:boolean" use="optional"/>           <xsd:attribute name="emergency" type="xsd:boolean" use="optional"/>           <xsd:attribute name="auto_reclose" type="xsd:boolean" use="optional"/>           <xsd:attribute name="potentially_incomplete" type="xsd:boolean"/>           <xsd:attribute name="directBilling" type="xsd:boolean" use="optional"/>           <xsd:attribute name="directBillingDecline" type="xsd:boolean" use="optional"/>         </xsd:complexType>       </xsd:element>       <xsd:element name="study_note" type="xsd:string" minOccurs="0"/>       <xsd:element name="equipment" maxOccurs="unbounded">         <xsd:complexType>           <xsd:sequence>             <xsd:element name="ta_id" type="xsd:string"/>             <xsd:element name="warning" type="xsd:string" minOccurs="0"/>             <xsd:element name="facility_information">               <xsd:complexType>                 <xsd:sequence>                   <xsd:element name="type" type="xsd:string"/>                   <xsd:element name="station" type="xsd:string"/>                   <xsd:element name="voltage" type="xsd:string"/>                   <xsd:element name="short_name" type="xsd:string"/>                   <xsd:element name="long_name" type="xsd:string"/>                 </xsd:sequence>               </xsd:complexType>             </xsd:element>             <xsd:element ref="interval_definition"/>           </xsd:sequence>           <xsd:attribute name="status" use="required">             <xsd:simpleType>               <xsd:restriction base="xsd:NMTOKEN">                 <xsd:enumeration value="C"/>                 <xsd:enumeration value="O"/>                 <xsd:enumeration value="E"/>                 <xsd:enumeration value="T"/>                 <xsd:enumeration value="R"/>                 <xsd:enumeration value="TR"/>                 <xsd:enumeration value="RE"/>               </xsd:restriction>             </xsd:simpleType>           </xsd:attribute>           <xsd:attribute name="primaryEquipFlag" type="xsd:boolean" use="optional"/>         </xsd:complexType>       </xsd:element>       <xsd:element name="active_dates" minOccurs="0">         <xsd:complexType>           <xsd:sequence>             <xsd:element ref="interval_definition" minOccurs="0" maxOccurs="unbounded"/>           </xsd:sequence>         </xsd:complexType>       </xsd:element>       <xsd:element name="switch">         <xsd:complexType>           <xsd:sequence>             <xsd:element name="interval_definition">               <xsd:complexType>                 <xsd:sequence>                   <xsd:element name="interval_start">                     <xsd:complexType>                       <xsd:sequence>                         <xsd:element name="date">                           <xsd:simpleType>                             <xsd:restriction base="xsd:string"/>                           </xsd:simpleType>                         </xsd:element>                         <xsd:element name="time">                           <xsd:simpleType>                             <xsd:restriction base="xsd:string"/>                           </xsd:simpleType>                         </xsd:element>                       </xsd:sequence>                     </xsd:complexType>                   </xsd:element>                 </xsd:sequence>               </xsd:complexType>             </xsd:element>           </xsd:sequence>         </xsd:complexType>       </xsd:element>       <xsd:element name="congestionExpected" type="xsd:boolean" minOccurs="0"/>       <xsd:element name="submittedOnTime" type="xsd:boolean" minOccurs="0"/>       <xsd:element name="submitOnTimeComments" type="xsd:string" minOccurs="0"/>       <xsd:element name="vegetationFlag" type="xsd:boolean" minOccurs="0"/>       <xsd:element name="cause" maxOccurs="unbounded">         <xsd:complexType>           <xsd:simpleContent>             <xsd:extension base="xsd:int">               <xsd:attribute name="description" type="xsd:string"/>             </xsd:extension>           </xsd:simpleContent>         </xsd:complexType>       </xsd:element>       <xsd:element name="totalSystemImpacts" type="xsd:integer" minOccurs="0"/>       <xsd:element name="unmitigatedSystemImpacts" type="xsd:integer" minOccurs="0"/>       <xsd:element name="systemImpacts" minOccurs="0">         <xsd:complexType>           <xsd:sequence>             <xsd:element name="impact" maxOccurs="unbounded">               <xsd:complexType>                 <xsd:sequence>                   <xsd:element name="impactTitle" type="xsd:string"/>                   <xsd:element name="impactDescription" type="xsd:string"/>                   <xsd:element name="mitigationStatus" type="xsd:string"/>                 </xsd:sequence>               </xsd:complexType>             </xsd:element>           </xsd:sequence>         </xsd:complexType>       </xsd:element>       <xsd:element name="cutInFlag" type="xsd:string" minOccurs="0"/>       <xsd:element name="cutInInfo" minOccurs="0">         <xsd:complexType>           <xsd:sequence>             <xsd:element name="cutInTitle" type="xsd:string" minOccurs="0"/>             <xsd:element name="cutInStatus" type="xsd:string" minOccurs="0"/>             <xsd:element ref="cutInTask" minOccurs="0" maxOccurs="unbounded"/>           </xsd:sequence>         </xsd:complexType>       </xsd:element>       <xsd:element name="marketSensitiveFlag" type="xsd:boolean" minOccurs="0"/>       <xsd:element name="nerctads" minOccurs="0">         <xsd:complexType>           <xsd:choice>             <xsd:element name="planned">               <xsd:simpleType>                 <xsd:restriction base="xsd:string">                   <xsd:enumeration value="Maintenance and Construction"/>                   <xsd:enumeration value="Other Planned Outage"/>                   <xsd:enumeration value="Third Party Request"/>                 </xsd:restriction>               </xsd:simpleType>             </xsd:element>             <xsd:element name="operational">               <xsd:simpleType>                 <xsd:restriction base="xsd:string">                   <xsd:enumeration value="Emergency"/>                   <xsd:enumeration value="Other Operational Outage"/>                   <xsd:enumeration value="System Operating Limit Mitigation, ex Voltage"/>                   <xsd:enumeration value="System Voltage Limit Mitigation"/>                   <xsd:enumeration value="N/A"/>                   <xsd:enumeration value="Human Error"/>                 </xsd:restriction>               </xsd:simpleType>             </xsd:element>             <xsd:element name="autoReclose">               <xsd:complexType>                 <xsd:sequence>                   <xsd:element name="faultType">                     <xsd:simpleType>                       <xsd:restriction base="xsd:integer">                         <xsd:minInclusive value="0"/>                         <xsd:maxInclusive value="5"/>                       </xsd:restriction>                     </xsd:simpleType>                   </xsd:element>                   <xsd:element name="outageInitCode">                     <xsd:simpleType>                       <xsd:restriction base="xsd:integer">                         <xsd:minInclusive value="0"/>                         <xsd:maxInclusive value="5"/>                       </xsd:restriction>                     </xsd:simpleType>                   </xsd:element>                   <xsd:element name="initCauseCode">                     <xsd:simpleType>                       <xsd:restriction base="xsd:integer">                         <xsd:minInclusive value="0"/>                         <xsd:maxInclusive value="17"/>                       </xsd:restriction>                     </xsd:simpleType>                   </xsd:element>                   <xsd:element name="sustainedCauseCode">                     <xsd:simpleType>                       <xsd:restriction base="xsd:integer">                         <xsd:minInclusive value="0"/>                         <xsd:maxInclusive value="18"/>                       </xsd:restriction>                     </xsd:simpleType>                   </xsd:element>                   <xsd:element name="outageModeCode">                     <xsd:simpleType>                       <xsd:restriction base="xsd:integer">                         <xsd:minInclusive value="0"/>                         <xsd:maxInclusive value="5"/>                       </xsd:restriction>                     </xsd:simpleType>                   </xsd:element>                 </xsd:sequence>               </xsd:complexType>             </xsd:element>           </xsd:choice>         </xsd:complexType>       </xsd:element>       <xsd:element name="datelogs" minOccurs="0">         <xsd:complexType>           <xsd:sequence>             <xsd:element name="datelog" maxOccurs="unbounded">               <xsd:complexType>                 <xsd:sequence>                   <xsd:element ref="interval_definition"/>                   <xsd:element name="timestamp" type="xsd:string"/>                   <xsd:element name="currentFlag" type="xsd:integer"/>                   <xsd:element name="user" type="xsd:string"/>                 </xsd:sequence>               </xsd:complexType>             </xsd:element>           </xsd:sequence>         </xsd:complexType>       </xsd:element>       <xsd:element name="rtepQueueNumber" minOccurs="0">         <xsd:simpleType>           <xsd:restriction base="xsd:string">             <xsd:maxLength value="50"/>           </xsd:restriction>         </xsd:simpleType>       </xsd:element>       <xsd:element name="totalConflicts" type="xsd:integer" minOccurs="0"/>       <xsd:element name="unmitigatedConflicts" type="xsd:integer" minOccurs="0"/>       <xsd:element ref="conflict" minOccurs="0" maxOccurs="2"/>       <xsd:element name="company_actuals" minOccurs="0">         <xsd:complexType>           <xsd:sequence>             <xsd:element name="interval_definition" maxOccurs="unbounded">               <xsd:complexType>                 <xsd:sequence>                   <xsd:element name="interval_start">                     <xsd:complexType>                       <xsd:sequence>                         <xsd:element ref="date"/>                         <xsd:element ref="time"/>                       </xsd:sequence>                     </xsd:complexType>                   </xsd:element>                   <xsd:element name="interval_end" minOccurs="0">                     <xsd:complexType>                       <xsd:sequence>                         <xsd:element ref="date"/>                         <xsd:element ref="time"/>                       </xsd:sequence>                     </xsd:complexType>                   </xsd:element>                 </xsd:sequence>               </xsd:complexType>             </xsd:element>           </xsd:sequence>         </xsd:complexType>       </xsd:element>       <xsd:element name="equipment_default" type="equipment_default"/>       <xsd:element name="takeout_restore" type="takeout_restore"/>       <xsd:element name="restplan" type="restplan" minOccurs="0"/>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element edart/transticnotifyreview/error

diagram
type	xsd:string
properties	minOcc  0 maxOcc  unbounded content  simple
source	<xsd:element name="error" type="xsd:string" minOccurs="0" maxOccurs="unbounded"/>

element edart/transticnotifyreview/company_name

diagram
type	xsd:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="company_name" type="xsd:string" minOccurs="0"/>

element edart/transticnotifyreview/pjm_ticket_id

diagram
type	xsd:positiveInteger
properties	content  simple
source	<xsd:element name="pjm_ticket_id" type="xsd:positiveInteger"/>

element edart/transticnotifyreview/company_ticket_id

diagram
type	restriction of xsd:string
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minLength  1 maxLength  30
source	<xsd:element name="company_ticket_id" minOccurs="0">   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:minLength value="1"/>       <xsd:maxLength value="30"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element edart/transticnotifyreview/description

diagram
type	xsd:string
properties	content  simple
source	<xsd:element name="description" type="xsd:string"/>

element edart/transticnotifyreview/project_ids

diagram
type	xsd:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="project_ids" type="xsd:string" minOccurs="0" maxOccurs="1"/>

element edart/transticnotifyreview/pjm_comments

diagram
type	restriction of xsd:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="pjm_comments" minOccurs="0">   <xsd:simpleType>     <xsd:restriction base="xsd:string"/>   </xsd:simpleType> </xsd:element>

element edart/transticnotifyreview/at_risk

diagram
type	xsd:boolean
properties	minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="at_risk" type="xsd:boolean" minOccurs="0"/>

element edart/transticnotifyreview/availability

diagram
type	xsd:string
properties	content  simple
source	<xsd:element name="availability" type="xsd:string"/>

element edart/transticnotifyreview/lock_status

diagram
type	xsd:string
properties	content  simple
source	<xsd:element name="lock_status" type="xsd:string"/>

element edart/transticnotifyreview/ticket_status

diagram
type	xsd:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="ticket_status" type="xsd:string" minOccurs="0"/>

element edart/transticnotifyreview/history_log

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	ticketStatus
source	<xsd:element name="history_log" minOccurs="0">   <xsd:complexType>     <xsd:sequence>       <xsd:element name="ticketStatus" maxOccurs="unbounded">         <xsd:complexType>           <xsd:sequence>             <xsd:element name="status" type="xsd:string"/>             <xsd:element name="timestamp" type="xsd:string"/>             <xsd:element name="user" type="xsd:string"/>           </xsd:sequence>         </xsd:complexType>       </xsd:element>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element edart/transticnotifyreview/history_log/ticketStatus

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
children	status timestamp user
source	<xsd:element name="ticketStatus" maxOccurs="unbounded">   <xsd:complexType>     <xsd:sequence>       <xsd:element name="status" type="xsd:string"/>       <xsd:element name="timestamp" type="xsd:string"/>       <xsd:element name="user" type="xsd:string"/>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element edart/transticnotifyreview/history_log/ticketStatus/status

diagram
type	xsd:string
properties	content  simple
source	<xsd:element name="status" type="xsd:string"/>

element edart/transticnotifyreview/history_log/ticketStatus/timestamp

diagram
type	xsd:string
properties	content  simple
source	<xsd:element name="timestamp" type="xsd:string"/>

element edart/transticnotifyreview/history_log/ticketStatus/user

diagram
type	xsd:string
properties	content  simple
source	<xsd:element name="user" type="xsd:string"/>

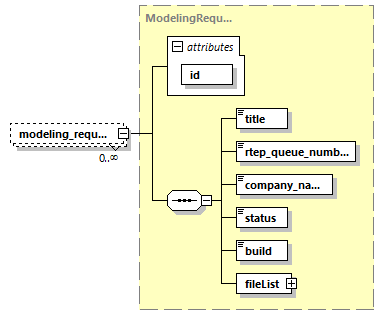

element edart/transticnotifyreview/modeling_requests

diagram
type	modeling_requests
properties	content  complex
children	modeling_request
source	<xsd:element name="modeling_requests" type="modeling_requests"/>

element edart/transticnotifyreview/outage_type

diagram
type	restriction of xsd:string
properties	content  simple
facets	Kind  Value  Annotation enumeration  DailyIncludingWeekends enumeration  DailyNoWeekends enumeration  DailyWeekendsOnly enumeration  ContinuousNoWeekends enumeration  Continuous enumeration  EMS Tripped
source	<xsd:element name="outage_type">   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:enumeration value="DailyIncludingWeekends"/>       <xsd:enumeration value="DailyNoWeekends"/>       <xsd:enumeration value="DailyWeekendsOnly"/>       <xsd:enumeration value="ContinuousNoWeekends"/>       <xsd:enumeration value="Continuous"/>       <xsd:enumeration value="EMS Tripped"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element edart/transticnotifyreview/ticket_type

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation info   xsd:boolean   optional         emergency   xsd:boolean   optional         auto_reclose   xsd:boolean   optional         potentially_incomplete   xsd:boolean            directBilling   xsd:boolean   optional         directBillingDecline   xsd:boolean   optional
source	<xsd:element name="ticket_type">   <xsd:complexType>     <xsd:attribute name="info" type="xsd:boolean" use="optional"/>     <xsd:attribute name="emergency" type="xsd:boolean" use="optional"/>     <xsd:attribute name="auto_reclose" type="xsd:boolean" use="optional"/>     <xsd:attribute name="potentially_incomplete" type="xsd:boolean"/>     <xsd:attribute name="directBilling" type="xsd:boolean" use="optional"/>     <xsd:attribute name="directBillingDecline" type="xsd:boolean" use="optional"/>   </xsd:complexType> </xsd:element>

attribute edart/transticnotifyreview/ticket_type/@info

type	xsd:boolean
properties	use  optional
source	<xsd:attribute name="info" type="xsd:boolean" use="optional"/>

attribute edart/transticnotifyreview/ticket_type/@emergency

type	xsd:boolean
properties	use  optional
source	<xsd:attribute name="emergency" type="xsd:boolean" use="optional"/>

attribute edart/transticnotifyreview/ticket_type/@auto_reclose

type	xsd:boolean
properties	use  optional
source	<xsd:attribute name="auto_reclose" type="xsd:boolean" use="optional"/>

attribute edart/transticnotifyreview/ticket_type/@potentially_incomplete

type	xsd:boolean
source	<xsd:attribute name="potentially_incomplete" type="xsd:boolean"/>

attribute edart/transticnotifyreview/ticket_type/@directBilling

type	xsd:boolean
properties	use  optional
source	<xsd:attribute name="directBilling" type="xsd:boolean" use="optional"/>

attribute edart/transticnotifyreview/ticket_type/@directBillingDecline

type	xsd:boolean
properties	use  optional
source	<xsd:attribute name="directBillingDecline" type="xsd:boolean" use="optional"/>

element edart/transticnotifyreview/study_note

diagram
type	xsd:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="study_note" type="xsd:string" minOccurs="0"/>

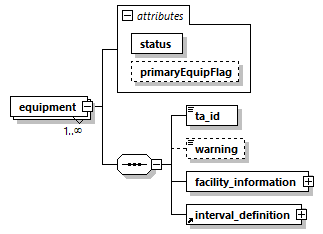

element edart/transticnotifyreview/equipment

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
children	ta_id warning facility_information interval_definition
attributes	Name   Type   Use   Default   Fixed   Annotation status   derived by: xsd:NMTOKEN   required         primaryEquipFlag   xsd:boolean   optional
source	<xsd:element name="equipment" maxOccurs="unbounded">   <xsd:complexType>     <xsd:sequence>       <xsd:element name="ta_id" type="xsd:string"/>       <xsd:element name="warning" type="xsd:string" minOccurs="0"/>       <xsd:element name="facility_information">         <xsd:complexType>           <xsd:sequence>             <xsd:element name="type" type="xsd:string"/>             <xsd:element name="station" type="xsd:string"/>             <xsd:element name="voltage" type="xsd:string"/>             <xsd:element name="short_name" type="xsd:string"/>             <xsd:element name="long_name" type="xsd:string"/>           </xsd:sequence>         </xsd:complexType>       </xsd:element>       <xsd:element ref="interval_definition"/>     </xsd:sequence>     <xsd:attribute name="status" use="required">       <xsd:simpleType>         <xsd:restriction base="xsd:NMTOKEN">           <xsd:enumeration value="C"/>           <xsd:enumeration value="O"/>           <xsd:enumeration value="E"/>           <xsd:enumeration value="T"/>           <xsd:enumeration value="R"/>           <xsd:enumeration value="TR"/>           <xsd:enumeration value="RE"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:attribute>     <xsd:attribute name="primaryEquipFlag" type="xsd:boolean" use="optional"/>   </xsd:complexType> </xsd:element>

attribute edart/transticnotifyreview/equipment/@status

type	restriction of xsd:NMTOKEN
properties	use  required
facets	Kind  Value  Annotation enumeration  C enumeration  O enumeration  E enumeration  T enumeration  R enumeration  TR enumeration  RE
source	<xsd:attribute name="status" use="required">   <xsd:simpleType>     <xsd:restriction base="xsd:NMTOKEN">       <xsd:enumeration value="C"/>       <xsd:enumeration value="O"/>       <xsd:enumeration value="E"/>       <xsd:enumeration value="T"/>       <xsd:enumeration value="R"/>       <xsd:enumeration value="TR"/>       <xsd:enumeration value="RE"/>     </xsd:restriction>   </xsd:simpleType> </xsd:attribute>

attribute edart/transticnotifyreview/equipment/@primaryEquipFlag

type	xsd:boolean
properties	use  optional
source	<xsd:attribute name="primaryEquipFlag" type="xsd:boolean" use="optional"/>

element edart/transticnotifyreview/equipment/ta_id

diagram
type	xsd:string
properties	content  simple
source	<xsd:element name="ta_id" type="xsd:string"/>

element edart/transticnotifyreview/equipment/warning

diagram
type	xsd:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="warning" type="xsd:string" minOccurs="0"/>

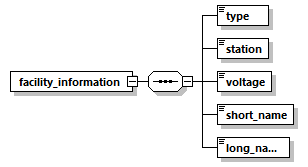

element edart/transticnotifyreview/equipment/facility_information

diagram
properties	content  complex
children	type station voltage short_name long_name
source	<xsd:element name="facility_information">   <xsd:complexType>     <xsd:sequence>       <xsd:element name="type" type="xsd:string"/>       <xsd:element name="station" type="xsd:string"/>       <xsd:element name="voltage" type="xsd:string"/>       <xsd:element name="short_name" type="xsd:string"/>       <xsd:element name="long_name" type="xsd:string"/>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element edart/transticnotifyreview/equipment/facility_information/type

diagram
type	xsd:string
properties	content  simple
source	<xsd:element name="type" type="xsd:string"/>

element edart/transticnotifyreview/equipment/facility_information/station

diagram
type	xsd:string
properties	content  simple
source	<xsd:element name="station" type="xsd:string"/>

element edart/transticnotifyreview/equipment/facility_information/voltage

diagram
type	xsd:string
properties	content  simple
source	<xsd:element name="voltage" type="xsd:string"/>

element edart/transticnotifyreview/equipment/facility_information/short_name

diagram
type	xsd:string
properties	content  simple
source	<xsd:element name="short_name" type="xsd:string"/>

element edart/transticnotifyreview/equipment/facility_information/long_name

diagram
type	xsd:string
properties	content  simple
source	<xsd:element name="long_name" type="xsd:string"/>

element edart/transticnotifyreview/active_dates

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	interval_definition
source	<xsd:element name="active_dates" minOccurs="0">   <xsd:complexType>     <xsd:sequence>       <xsd:element ref="interval_definition" minOccurs="0" maxOccurs="unbounded"/>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element edart/transticnotifyreview/switch

diagram
properties	content  complex
children	interval_definition
source	<xsd:element name="switch">   <xsd:complexType>     <xsd:sequence>       <xsd:element name="interval_definition">         <xsd:complexType>           <xsd:sequence>             <xsd:element name="interval_start">               <xsd:complexType>                 <xsd:sequence>                   <xsd:element name="date">                     <xsd:simpleType>                       <xsd:restriction base="xsd:string"/>                     </xsd:simpleType>                   </xsd:element>                   <xsd:element name="time">                     <xsd:simpleType>                       <xsd:restriction base="xsd:string"/>                     </xsd:simpleType>                   </xsd:element>                 </xsd:sequence>               </xsd:complexType>             </xsd:element>           </xsd:sequence>         </xsd:complexType>       </xsd:element>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element edart/transticnotifyreview/switch/interval_definition

diagram
properties	content  complex
children	interval_start
used by	elements  edart/transticnotifyreview/active_dates edart/transticnotifyreview/datelogs/datelog edart/transticnotifyreview/equipment edart/transticnotifyreview
source	<xsd:element name="interval_definition">   <xsd:complexType>     <xsd:sequence>       <xsd:element name="interval_start">         <xsd:complexType>           <xsd:sequence>             <xsd:element name="date">               <xsd:simpleType>                 <xsd:restriction base="xsd:string"/>               </xsd:simpleType>             </xsd:element>             <xsd:element name="time">               <xsd:simpleType>                 <xsd:restriction base="xsd:string"/>               </xsd:simpleType>             </xsd:element>           </xsd:sequence>         </xsd:complexType>       </xsd:element>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element edart/transticnotifyreview/switch/interval_definition/interval_start

diagram
properties	content  complex
children	date time
source	<xsd:element name="interval_start">   <xsd:complexType>     <xsd:sequence>       <xsd:element name="date">         <xsd:simpleType>           <xsd:restriction base="xsd:string"/>         </xsd:simpleType>       </xsd:element>       <xsd:element name="time">         <xsd:simpleType>           <xsd:restriction base="xsd:string"/>         </xsd:simpleType>       </xsd:element>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element edart/transticnotifyreview/switch/interval_definition/interval_start/date

diagram
type	restriction of xsd:string
properties	content  simple
used by	elements  edart/transticnotifyreview/company_actuals/interval_definition/interval_end interval_definition/interval_end conflict/scenario/potential_gap/interval_end edart/transticnotifyreview/company_actuals/interval_definition/interval_start interval_definition/interval_start conflict/scenario/potential_gap/interval_start
source	<xsd:element name="date">   <xsd:simpleType>     <xsd:restriction base="xsd:string"/>   </xsd:simpleType> </xsd:element>

element edart/transticnotifyreview/switch/interval_definition/interval_start/time

diagram
type	restriction of xsd:string
properties	content  simple
used by	elements  edart/transticnotifyreview/company_actuals/interval_definition/interval_end interval_definition/interval_end conflict/scenario/potential_gap/interval_end edart/transticnotifyreview/company_actuals/interval_definition/interval_start interval_definition/interval_start conflict/scenario/potential_gap/interval_start
source	<xsd:element name="time">   <xsd:simpleType>     <xsd:restriction base="xsd:string"/>   </xsd:simpleType> </xsd:element>

element edart/transticnotifyreview/congestionExpected

diagram
type	xsd:boolean
properties	minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="congestionExpected" type="xsd:boolean" minOccurs="0"/>

element edart/transticnotifyreview/submittedOnTime

diagram
type	xsd:boolean
properties	minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="submittedOnTime" type="xsd:boolean" minOccurs="0"/>

element edart/transticnotifyreview/submitOnTimeComments

diagram
type	xsd:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="submitOnTimeComments" type="xsd:string" minOccurs="0"/>

element edart/transticnotifyreview/vegetationFlag

diagram
type	xsd:boolean
properties	minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="vegetationFlag" type="xsd:boolean" minOccurs="0"/>

element edart/transticnotifyreview/cause

diagram
type	extension of xsd:int
properties	minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation description   xsd:string
source	<xsd:element name="cause" maxOccurs="unbounded">   <xsd:complexType>     <xsd:simpleContent>       <xsd:extension base="xsd:int">         <xsd:attribute name="description" type="xsd:string"/>       </xsd:extension>     </xsd:simpleContent>   </xsd:complexType> </xsd:element>

attribute edart/transticnotifyreview/cause/@description

type	xsd:string
source	<xsd:attribute name="description" type="xsd:string"/>

element edart/transticnotifyreview/totalSystemImpacts

diagram
type	xsd:integer
properties	minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="totalSystemImpacts" type="xsd:integer" minOccurs="0"/>

element edart/transticnotifyreview/unmitigatedSystemImpacts

diagram
type	xsd:integer
properties	minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="unmitigatedSystemImpacts" type="xsd:integer" minOccurs="0"/>

element edart/transticnotifyreview/systemImpacts

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	impact
source	<xsd:element name="systemImpacts" minOccurs="0">   <xsd:complexType>     <xsd:sequence>       <xsd:element name="impact" maxOccurs="unbounded">         <xsd:complexType>           <xsd:sequence>             <xsd:element name="impactTitle" type="xsd:string"/>             <xsd:element name="impactDescription" type="xsd:string"/>             <xsd:element name="mitigationStatus" type="xsd:string"/>           </xsd:sequence>         </xsd:complexType>       </xsd:element>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element edart/transticnotifyreview/systemImpacts/impact

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
children	impactTitle impactDescription mitigationStatus
source	<xsd:element name="impact" maxOccurs="unbounded">   <xsd:complexType>     <xsd:sequence>       <xsd:element name="impactTitle" type="xsd:string"/>       <xsd:element name="impactDescription" type="xsd:string"/>       <xsd:element name="mitigationStatus" type="xsd:string"/>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element edart/transticnotifyreview/systemImpacts/impact/impactTitle

diagram
type	xsd:string
properties	content  simple
source	<xsd:element name="impactTitle" type="xsd:string"/>

element edart/transticnotifyreview/systemImpacts/impact/impactDescription

diagram
type	xsd:string
properties	content  simple
source	<xsd:element name="impactDescription" type="xsd:string"/>

element edart/transticnotifyreview/systemImpacts/impact/mitigationStatus

diagram
type	xsd:string
properties	content  simple
source	<xsd:element name="mitigationStatus" type="xsd:string"/>

element edart/transticnotifyreview/cutInFlag

diagram
type	xsd:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="cutInFlag" type="xsd:string" minOccurs="0"/>

element edart/transticnotifyreview/cutInInfo

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	cutInTitle cutInStatus cutInTask
source	<xsd:element name="cutInInfo" minOccurs="0">   <xsd:complexType>     <xsd:sequence>       <xsd:element name="cutInTitle" type="xsd:string" minOccurs="0"/>       <xsd:element name="cutInStatus" type="xsd:string" minOccurs="0"/>       <xsd:element ref="cutInTask" minOccurs="0" maxOccurs="unbounded"/>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element edart/transticnotifyreview/cutInInfo/cutInTitle

diagram
type	xsd:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="cutInTitle" type="xsd:string" minOccurs="0"/>

element edart/transticnotifyreview/cutInInfo/cutInStatus

diagram
type	xsd:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="cutInStatus" type="xsd:string" minOccurs="0"/>

element edart/transticnotifyreview/marketSensitiveFlag

diagram
type	xsd:boolean
properties	minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="marketSensitiveFlag" type="xsd:boolean" minOccurs="0"/>

element edart/transticnotifyreview/nerctads

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	planned operational autoReclose
source	<xsd:element name="nerctads" minOccurs="0">   <xsd:complexType>     <xsd:choice>       <xsd:element name="planned">         <xsd:simpleType>           <xsd:restriction base="xsd:string">             <xsd:enumeration value="Maintenance and Construction"/>             <xsd:enumeration value="Other Planned Outage"/>             <xsd:enumeration value="Third Party Request"/>           </xsd:restriction>         </xsd:simpleType>       </xsd:element>       <xsd:element name="operational">         <xsd:simpleType>           <xsd:restriction base="xsd:string">             <xsd:enumeration value="Emergency"/>             <xsd:enumeration value="Other Operational Outage"/>             <xsd:enumeration value="System Operating Limit Mitigation, ex Voltage"/>             <xsd:enumeration value="System Voltage Limit Mitigation"/>             <xsd:enumeration value="N/A"/>             <xsd:enumeration value="Human Error"/>           </xsd:restriction>         </xsd:simpleType>       </xsd:element>       <xsd:element name="autoReclose">         <xsd:complexType>           <xsd:sequence>             <xsd:element name="faultType">               <xsd:simpleType>                 <xsd:restriction base="xsd:integer">                   <xsd:minInclusive value="0"/>                   <xsd:maxInclusive value="5"/>                 </xsd:restriction>               </xsd:simpleType>             </xsd:element>             <xsd:element name="outageInitCode">               <xsd:simpleType>                 <xsd:restriction base="xsd:integer">                   <xsd:minInclusive value="0"/>                   <xsd:maxInclusive value="5"/>                 </xsd:restriction>               </xsd:simpleType>             </xsd:element>             <xsd:element name="initCauseCode">               <xsd:simpleType>                 <xsd:restriction base="xsd:integer">                   <xsd:minInclusive value="0"/>                   <xsd:maxInclusive value="17"/>                 </xsd:restriction>               </xsd:simpleType>             </xsd:element>             <xsd:element name="sustainedCauseCode">               <xsd:simpleType>                 <xsd:restriction base="xsd:integer">                   <xsd:minInclusive value="0"/>                   <xsd:maxInclusive value="18"/>                 </xsd:restriction>               </xsd:simpleType>             </xsd:element>             <xsd:element name="outageModeCode">               <xsd:simpleType>                 <xsd:restriction base="xsd:integer">                   <xsd:minInclusive value="0"/>                   <xsd:maxInclusive value="5"/>                 </xsd:restriction>               </xsd:simpleType>             </xsd:element>           </xsd:sequence>         </xsd:complexType>       </xsd:element>     </xsd:choice>   </xsd:complexType> </xsd:element>

element edart/transticnotifyreview/nerctads/planned

diagram
type	restriction of xsd:string
properties	content  simple
facets	Kind  Value  Annotation enumeration  Maintenance and Construction enumeration  Other Planned Outage enumeration  Third Party Request
source	<xsd:element name="planned">   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:enumeration value="Maintenance and Construction"/>       <xsd:enumeration value="Other Planned Outage"/>       <xsd:enumeration value="Third Party Request"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element edart/transticnotifyreview/nerctads/operational

diagram
type	restriction of xsd:string
properties	content  simple
facets	Kind  Value  Annotation enumeration  Emergency enumeration  Other Operational Outage enumeration  System Operating Limit Mitigation, ex Voltage enumeration  System Voltage Limit Mitigation enumeration  N/A enumeration  Human Error
source	<xsd:element name="operational">   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:enumeration value="Emergency"/>       <xsd:enumeration value="Other Operational Outage"/>       <xsd:enumeration value="System Operating Limit Mitigation, ex Voltage"/>       <xsd:enumeration value="System Voltage Limit Mitigation"/>       <xsd:enumeration value="N/A"/>       <xsd:enumeration value="Human Error"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

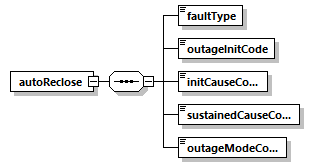

element edart/transticnotifyreview/nerctads/autoReclose

diagram
properties	content  complex
children	faultType outageInitCode initCauseCode sustainedCauseCode outageModeCode
source	<xsd:element name="autoReclose">   <xsd:complexType>     <xsd:sequence>       <xsd:element name="faultType">         <xsd:simpleType>           <xsd:restriction base="xsd:integer">             <xsd:minInclusive value="0"/>             <xsd:maxInclusive value="5"/>           </xsd:restriction>         </xsd:simpleType>       </xsd:element>       <xsd:element name="outageInitCode">         <xsd:simpleType>           <xsd:restriction base="xsd:integer">             <xsd:minInclusive value="0"/>             <xsd:maxInclusive value="5"/>           </xsd:restriction>         </xsd:simpleType>       </xsd:element>       <xsd:element name="initCauseCode">         <xsd:simpleType>           <xsd:restriction base="xsd:integer">             <xsd:minInclusive value="0"/>             <xsd:maxInclusive value="17"/>           </xsd:restriction>         </xsd:simpleType>       </xsd:element>       <xsd:element name="sustainedCauseCode">         <xsd:simpleType>           <xsd:restriction base="xsd:integer">             <xsd:minInclusive value="0"/>             <xsd:maxInclusive value="18"/>           </xsd:restriction>         </xsd:simpleType>       </xsd:element>       <xsd:element name="outageModeCode">         <xsd:simpleType>           <xsd:restriction base="xsd:integer">             <xsd:minInclusive value="0"/>             <xsd:maxInclusive value="5"/>           </xsd:restriction>         </xsd:simpleType>       </xsd:element>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element edart/transticnotifyreview/nerctads/autoReclose/faultType

diagram
type	restriction of xsd:integer
properties	content  simple
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  5
source	<xsd:element name="faultType">   <xsd:simpleType>     <xsd:restriction base="xsd:integer">       <xsd:minInclusive value="0"/>       <xsd:maxInclusive value="5"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element edart/transticnotifyreview/nerctads/autoReclose/outageInitCode

diagram
type	restriction of xsd:integer
properties	content  simple
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  5
source	<xsd:element name="outageInitCode">   <xsd:simpleType>     <xsd:restriction base="xsd:integer">       <xsd:minInclusive value="0"/>       <xsd:maxInclusive value="5"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element edart/transticnotifyreview/nerctads/autoReclose/initCauseCode

diagram
type	restriction of xsd:integer
properties	content  simple
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  17
source	<xsd:element name="initCauseCode">   <xsd:simpleType>     <xsd:restriction base="xsd:integer">       <xsd:minInclusive value="0"/>       <xsd:maxInclusive value="17"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element edart/transticnotifyreview/nerctads/autoReclose/sustainedCauseCode

diagram
type	restriction of xsd:integer
properties	content  simple
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  18
source	<xsd:element name="sustainedCauseCode">   <xsd:simpleType>     <xsd:restriction base="xsd:integer">       <xsd:minInclusive value="0"/>       <xsd:maxInclusive value="18"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element edart/transticnotifyreview/nerctads/autoReclose/outageModeCode

diagram
type	restriction of xsd:integer
properties	content  simple
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  5
source	<xsd:element name="outageModeCode">   <xsd:simpleType>     <xsd:restriction base="xsd:integer">       <xsd:minInclusive value="0"/>       <xsd:maxInclusive value="5"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element edart/transticnotifyreview/datelogs

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	datelog
source	<xsd:element name="datelogs" minOccurs="0">   <xsd:complexType>     <xsd:sequence>       <xsd:element name="datelog" maxOccurs="unbounded">         <xsd:complexType>           <xsd:sequence>             <xsd:element ref="interval_definition"/>             <xsd:element name="timestamp" type="xsd:string"/>             <xsd:element name="currentFlag" type="xsd:integer"/>             <xsd:element name="user" type="xsd:string"/>           </xsd:sequence>         </xsd:complexType>       </xsd:element>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element edart/transticnotifyreview/datelogs/datelog

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
children	interval_definition timestamp currentFlag user
source	<xsd:element name="datelog" maxOccurs="unbounded">   <xsd:complexType>     <xsd:sequence>       <xsd:element ref="interval_definition"/>       <xsd:element name="timestamp" type="xsd:string"/>       <xsd:element name="currentFlag" type="xsd:integer"/>       <xsd:element name="user" type="xsd:string"/>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element edart/transticnotifyreview/datelogs/datelog/timestamp

diagram
type	xsd:string
properties	content  simple
source	<xsd:element name="timestamp" type="xsd:string"/>

element edart/transticnotifyreview/datelogs/datelog/currentFlag

diagram
type	xsd:integer
properties	content  simple
source	<xsd:element name="currentFlag" type="xsd:integer"/>

element edart/transticnotifyreview/datelogs/datelog/user

diagram
type	xsd:string
properties	content  simple
source	<xsd:element name="user" type="xsd:string"/>

element edart/transticnotifyreview/rtepQueueNumber

diagram
type	restriction of xsd:string
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  50
source	<xsd:element name="rtepQueueNumber" minOccurs="0">   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="50"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element edart/transticnotifyreview/totalConflicts

diagram
type	xsd:integer
properties	minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="totalConflicts" type="xsd:integer" minOccurs="0"/>

element edart/transticnotifyreview/unmitigatedConflicts

diagram
type	xsd:integer
properties	minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="unmitigatedConflicts" type="xsd:integer" minOccurs="0"/>

element edart/transticnotifyreview/company_actuals

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	interval_definition
source	<xsd:element name="company_actuals" minOccurs="0">   <xsd:complexType>     <xsd:sequence>       <xsd:element name="interval_definition" maxOccurs="unbounded">         <xsd:complexType>           <xsd:sequence>             <xsd:element name="interval_start">               <xsd:complexType>                 <xsd:sequence>                   <xsd:element ref="date"/>                   <xsd:element ref="time"/>                 </xsd:sequence>               </xsd:complexType>             </xsd:element>             <xsd:element name="interval_end" minOccurs="0">               <xsd:complexType>                 <xsd:sequence>                   <xsd:element ref="date"/>                   <xsd:element ref="time"/>                 </xsd:sequence>               </xsd:complexType>             </xsd:element>           </xsd:sequence>         </xsd:complexType>       </xsd:element>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element edart/transticnotifyreview/company_actuals/interval_definition

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
children	interval_start interval_end
used by	elements  edart/transticnotifyreview/active_dates edart/transticnotifyreview/datelogs/datelog edart/transticnotifyreview/equipment edart/transticnotifyreview
source	<xsd:element name="interval_definition" maxOccurs="unbounded">   <xsd:complexType>     <xsd:sequence>       <xsd:element name="interval_start">         <xsd:complexType>           <xsd:sequence>             <xsd:element ref="date"/>             <xsd:element ref="time"/>           </xsd:sequence>         </xsd:complexType>       </xsd:element>       <xsd:element name="interval_end" minOccurs="0">         <xsd:complexType>           <xsd:sequence>             <xsd:element ref="date"/>             <xsd:element ref="time"/>           </xsd:sequence>         </xsd:complexType>       </xsd:element>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element edart/transticnotifyreview/company_actuals/interval_definition/interval_start

diagram
properties	content  complex
children	date time
source	<xsd:element name="interval_start">   <xsd:complexType>     <xsd:sequence>       <xsd:element ref="date"/>       <xsd:element ref="time"/>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element edart/transticnotifyreview/company_actuals/interval_definition/interval_end

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	date time
source	<xsd:element name="interval_end" minOccurs="0">   <xsd:complexType>     <xsd:sequence>       <xsd:element ref="date"/>       <xsd:element ref="time"/>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element edart/transticnotifyreview/equipment_default

diagram
type	equipment_default
properties	content  complex
children	equipment
source	<xsd:element name="equipment_default" type="equipment_default"/>

element edart/transticnotifyreview/takeout_restore

diagram
type	takeout_restore
properties	content  complex
children	equipment
source	<xsd:element name="takeout_restore" type="takeout_restore"/>

element edart/transticnotifyreview/restplan

diagram
type	restplan
properties	minOcc  0 maxOcc  1 content  complex
children	restplanreview
source	<xsd:element name="restplan" type="restplan" minOccurs="0"/>

element interval_definition

diagram
properties	content  complex
children	interval_start interval_end
used by	elements  edart/transticnotifyreview/active_dates edart/transticnotifyreview/datelogs/datelog edart/transticnotifyreview/equipment edart/transticnotifyreview
source	<xsd:element name="interval_definition">   <xsd:complexType>     <xsd:sequence>       <xsd:element name="interval_start">         <xsd:complexType>           <xsd:sequence>             <xsd:element ref="date"/>             <xsd:element ref="time"/>           </xsd:sequence>         </xsd:complexType>       </xsd:element>       <xsd:element name="interval_end" minOccurs="0">         <xsd:complexType>           <xsd:sequence>             <xsd:element ref="date"/>             <xsd:element ref="time"/>           </xsd:sequence>         </xsd:complexType>       </xsd:element>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element interval_definition/interval_start

diagram
properties	content  complex
children	date time
source	<xsd:element name="interval_start">   <xsd:complexType>     <xsd:sequence>       <xsd:element ref="date"/>       <xsd:element ref="time"/>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element interval_definition/interval_end

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	date time
source	<xsd:element name="interval_end" minOccurs="0">   <xsd:complexType>     <xsd:sequence>       <xsd:element ref="date"/>       <xsd:element ref="time"/>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element time

diagram
type	restriction of xsd:string
properties	content  simple
used by	elements  edart/transticnotifyreview/company_actuals/interval_definition/interval_end interval_definition/interval_end conflict/scenario/potential_gap/interval_end edart/transticnotifyreview/company_actuals/interval_definition/interval_start interval_definition/interval_start conflict/scenario/potential_gap/interval_start
source	<xsd:element name="time">   <xsd:simpleType>     <xsd:restriction base="xsd:string"/>   </xsd:simpleType> </xsd:element>

complexType equipment_default

diagram
children	equipment
used by	element  edart/transticnotifyreview/equipment_default
source	<xsd:complexType name="equipment_default">   <xsd:choice minOccurs="0" maxOccurs="unbounded">     <xsd:element name="equipment">       <xsd:complexType>         <xsd:all>           <xsd:element name="default_status" type="xsd:string"/>         </xsd:all>         <xsd:attribute name="ta_id" type="xsd:long" use="required"/>       </xsd:complexType>     </xsd:element>   </xsd:choice> </xsd:complexType>

element equipment_default/equipment

diagram
properties	content  complex
children	default_status
attributes	Name   Type   Use   Default   Fixed   Annotation ta_id   xsd:long   required
source	<xsd:element name="equipment">   <xsd:complexType>     <xsd:all>       <xsd:element name="default_status" type="xsd:string"/>     </xsd:all>     <xsd:attribute name="ta_id" type="xsd:long" use="required"/>   </xsd:complexType> </xsd:element>

attribute equipment_default/equipment/@ta_id

type	xsd:long
properties	use  required
source	<xsd:attribute name="ta_id" type="xsd:long" use="required"/>

element equipment_default/equipment/default_status

diagram
type	xsd:string
properties	content  simple
source	<xsd:element name="default_status" type="xsd:string"/>

complexType FileList

diagram
children	fileName
used by	element  ModelingRequest/fileList
source	<xsd:complexType name="FileList">   <xsd:sequence>     <xsd:element name="fileName" type="xsd:string" minOccurs="0" maxOccurs="unbounded"/>   </xsd:sequence> </xsd:complexType>

element FileList/fileName

diagram
type	xsd:string
properties	minOcc  0 maxOcc  unbounded content  simple
source	<xsd:element name="fileName" type="xsd:string" minOccurs="0" maxOccurs="unbounded"/>

complexType modeling_requests

diagram
children	modeling_request
used by	element  edart/transticnotifyreview/modeling_requests
source	<xsd:complexType name="modeling_requests">   <xsd:sequence>     <xsd:element name="modeling_request" type="ModelingRequest" minOccurs="0" maxOccurs="unbounded"/>   </xsd:sequence> </xsd:complexType>

element modeling_requests/modeling_request

diagram
type	ModelingRequest
properties	minOcc  0 maxOcc  unbounded content  complex
children	title rtep_queue_number company_name status build fileList
attributes	Name   Type   Use   Default   Fixed   Annotation id   xsd:long   required
source	<xsd:element name="modeling_request" type="ModelingRequest" minOccurs="0" maxOccurs="unbounded"/>

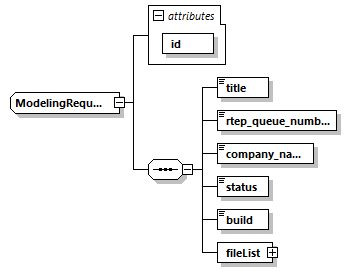

complexType ModelingRequest

diagram
children	title rtep_queue_number company_name status build fileList
used by	element  modeling_requests/modeling_request
attributes	Name   Type   Use   Default   Fixed   Annotation id   xsd:long   required
source	<xsd:complexType name="ModelingRequest">   <xsd:sequence>     <xsd:element name="title" type="xsd:string"/>     <xsd:element name="rtep_queue_number" type="xsd:string"/>     <xsd:element name="company_name" type="xsd:string"/>     <xsd:element name="status" type="xsd:string"/>     <xsd:element name="build" type="xsd:string"/>     <xsd:element name="fileList" type="FileList"/>   </xsd:sequence>   <xsd:attribute name="id" type="xsd:long" use="required"/> </xsd:complexType>

attribute ModelingRequest/@id

type	xsd:long
properties	use  required
source	<xsd:attribute name="id" type="xsd:long" use="required"/>

element ModelingRequest/title

diagram
type	xsd:string
properties	content  simple
source	<xsd:element name="title" type="xsd:string"/>

element ModelingRequest/rtep_queue_number

diagram
type	xsd:string
properties	content  simple
source	<xsd:element name="rtep_queue_number" type="xsd:string"/>

element ModelingRequest/company_name

diagram
type	xsd:string
properties	content  simple
source	<xsd:element name="company_name" type="xsd:string"/>

element ModelingRequest/status

diagram
type	xsd:string
properties	content  simple
source	<xsd:element name="status" type="xsd:string"/>

element ModelingRequest/build

diagram
type	xsd:string
properties	content  simple
source	<xsd:element name="build" type="xsd:string"/>

element ModelingRequest/fileList

diagram
type	FileList
properties	content  complex
children	fileName
source	<xsd:element name="fileList" type="FileList"/>

complexType restplan

diagram
children	restplanreview
used by	element  edart/transticnotifyreview/restplan
source	<xsd:complexType name="restplan">   <xsd:sequence>     <xsd:element name="restplanreview" type="xsd:string"/>   </xsd:sequence> </xsd:complexType>

element restplan/restplanreview

diagram
type	xsd:string
properties	content  simple
source	<xsd:element name="restplanreview" type="xsd:string"/>

complexType takeout_restore

diagram
children	equipment
used by	element  edart/transticnotifyreview/takeout_restore
source	<xsd:complexType name="takeout_restore">   <xsd:choice minOccurs="0" maxOccurs="unbounded">     <xsd:element name="equipment">       <xsd:complexType>         <xsd:all>           <xsd:element name="status">             <xsd:simpleType>               <xsd:restriction base="xsd:NMTOKEN">                 <xsd:enumeration value="T"/>                 <xsd:enumeration value="R"/>                 <xsd:enumeration value="TR"/>               </xsd:restriction>             </xsd:simpleType>           </xsd:element>         </xsd:all>         <xsd:attribute name="ta_id" type="xsd:long" use="required"/>       </xsd:complexType>     </xsd:element>   </xsd:choice> </xsd:complexType>

element takeout_restore/equipment

diagram
properties	content  complex
children	status
attributes	Name   Type   Use   Default   Fixed   Annotation ta_id   xsd:long   required
source	<xsd:element name="equipment">   <xsd:complexType>     <xsd:all>       <xsd:element name="status">         <xsd:simpleType>           <xsd:restriction base="xsd:NMTOKEN">             <xsd:enumeration value="T"/>             <xsd:enumeration value="R"/>             <xsd:enumeration value="TR"/>           </xsd:restriction>         </xsd:simpleType>       </xsd:element>     </xsd:all>     <xsd:attribute name="ta_id" type="xsd:long" use="required"/>   </xsd:complexType> </xsd:element>

attribute takeout_restore/equipment/@ta_id

type	xsd:long
properties	use  required
source	<xsd:attribute name="ta_id" type="xsd:long" use="required"/>

element takeout_restore/equipment/status

diagram
type	restriction of xsd:NMTOKEN
properties	content  simple
facets	Kind  Value  Annotation enumeration  T enumeration  R enumeration  TR
source	<xsd:element name="status">   <xsd:simpleType>     <xsd:restriction base="xsd:NMTOKEN">       <xsd:enumeration value="T"/>       <xsd:enumeration value="R"/>       <xsd:enumeration value="TR"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
