Schema voltageschedule.xsd


schema location:
attributeFormDefault:  unqualified
elementFormDefault:  unqualified
targetNamespace:

Elements  Complex types
voltageSchedules  valueType
voltageSchedule
voltageSchedules


element voltageSchedules
diagram voltageschedule_p1.png
namespace http://www.pjm.com/external/schemas/voltageschedule/v1
type vs:voltageSchedules
properties
content complex
children voltageSchedule
source <xs:element name="voltageSchedules" type="vs:voltageSchedules"/>

complexType valueType
diagram voltageschedule_p2.png
namespace http://www.pjm.com/external/schemas/voltageschedule/v1
children target pfType lowerBound lowerValue lowerPfType upperBound upperValue upperPfType
used by
elements voltageSchedule/heavyValues voltageSchedule/lightValues voltageSchedule/normalValues
source <xs:complexType name="valueType">
  <xs:sequence>
    <xs:element name="target" type="xs:decimal" minOccurs="0"/>
    <xs:element name="pfType" type="xs:string" minOccurs="0"/>
    <xs:element name="lowerBound" type="xs:decimal" minOccurs="0"/>
    <xs:element name="lowerValue" type="xs:decimal" minOccurs="0"/>
    <xs:element name="lowerPfType" type="xs:string" minOccurs="0"/>
    <xs:element name="upperBound" type="xs:decimal" minOccurs="0"/>
    <xs:element name="upperValue" type="xs:decimal" minOccurs="0"/>
    <xs:element name="upperPfType" type="xs:string" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element valueType/target
diagram voltageschedule_p3.png
type xs:decimal
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="target" type="xs:decimal" minOccurs="0"/>

element valueType/pfType
diagram voltageschedule_p4.png
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="pfType" type="xs:string" minOccurs="0"/>

element valueType/lowerBound
diagram voltageschedule_p5.png
type xs:decimal
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="lowerBound" type="xs:decimal" minOccurs="0"/>

element valueType/lowerValue
diagram voltageschedule_p6.png
type xs:decimal
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="lowerValue" type="xs:decimal" minOccurs="0"/>

element valueType/lowerPfType
diagram voltageschedule_p7.png
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="lowerPfType" type="xs:string" minOccurs="0"/>

element valueType/upperBound
diagram voltageschedule_p8.png
type xs:decimal
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="upperBound" type="xs:decimal" minOccurs="0"/>

element valueType/upperValue
diagram voltageschedule_p9.png
type xs:decimal
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="upperValue" type="xs:decimal" minOccurs="0"/>

element valueType/upperPfType
diagram voltageschedule_p10.png
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="upperPfType" type="xs:string" minOccurs="0"/>

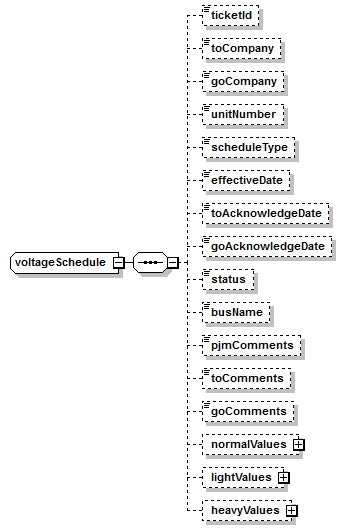

complexType voltageSchedule
diagram voltageschedule_p11.png
namespace http://www.pjm.com/external/schemas/voltageschedule/v1
children ticketId toCompany goCompany unitNumber scheduleType effectiveDate toAcknowledgeDate goAcknowledgeDate status busName pjmComments toComments goComments normalValues lightValues heavyValues
used by
element voltageSchedules/voltageSchedule
source <xs:complexType name="voltageSchedule">
  <xs:sequence>
    <xs:element name="ticketId" type="xs:long" minOccurs="0"/>
    <xs:element name="toCompany" type="xs:string" minOccurs="0"/>
    <xs:element name="goCompany" type="xs:string" minOccurs="0"/>
    <xs:element name="unitNumber" type="xs:long" minOccurs="0"/>
    <xs:element name="scheduleType" type="xs:string" minOccurs="0"/>
    <xs:element name="effectiveDate" type="xs:date" minOccurs="0"/>
    <xs:element name="toAcknowledgeDate" type="xs:date" minOccurs="0"/>
    <xs:element name="goAcknowledgeDate" type="xs:date" minOccurs="0"/>
    <xs:element name="status" type="xs:string" minOccurs="0"/>
    <xs:element name="busName" type="xs:string" minOccurs="0"/>
    <xs:element name="pjmComments" type="xs:string" minOccurs="0"/>
    <xs:element name="toComments" type="xs:string" minOccurs="0"/>
    <xs:element name="goComments" type="xs:string" minOccurs="0"/>
    <xs:element name="normalValues" type="vs:valueType" minOccurs="0"/>
    <xs:element name="lightValues" type="vs:valueType" minOccurs="0"/>
    <xs:element name="heavyValues" type="vs:valueType" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element voltageSchedule/ticketId
diagram voltageschedule_p12.png
type xs:long
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="ticketId" type="xs:long" minOccurs="0"/>

element voltageSchedule/toCompany
diagram voltageschedule_p13.png
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="toCompany" type="xs:string" minOccurs="0"/>

element voltageSchedule/goCompany
diagram voltageschedule_p14.png
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="goCompany" type="xs:string" minOccurs="0"/>

element voltageSchedule/unitNumber
diagram voltageschedule_p15.png
type xs:long
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="unitNumber" type="xs:long" minOccurs="0"/>

element voltageSchedule/scheduleType
diagram voltageschedule_p16.png
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="scheduleType" type="xs:string" minOccurs="0"/>

element voltageSchedule/effectiveDate
diagram voltageschedule_p17.png
type xs:date
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="effectiveDate" type="xs:date" minOccurs="0"/>

element voltageSchedule/toAcknowledgeDate
diagram voltageschedule_p18.png
type xs:date
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="toAcknowledgeDate" type="xs:date" minOccurs="0"/>

element voltageSchedule/goAcknowledgeDate
diagram voltageschedule_p19.png
type xs:date
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="goAcknowledgeDate" type="xs:date" minOccurs="0"/>

element voltageSchedule/status
diagram voltageschedule_p20.png
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="status" type="xs:string" minOccurs="0"/>

element voltageSchedule/busName
diagram voltageschedule_p21.png
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="busName" type="xs:string" minOccurs="0"/>

element voltageSchedule/pjmComments
diagram voltageschedule_p22.png
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="pjmComments" type="xs:string" minOccurs="0"/>

element voltageSchedule/toComments
diagram voltageschedule_p23.png
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="toComments" type="xs:string" minOccurs="0"/>

element voltageSchedule/goComments
diagram voltageschedule_p24.png
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="goComments" type="xs:string" minOccurs="0"/>

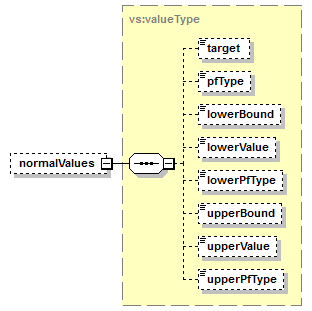

element voltageSchedule/normalValues
diagram voltageschedule_p25.png
type vs:valueType
properties
minOcc 0
maxOcc 1
content complex
children target pfType lowerBound lowerValue lowerPfType upperBound upperValue upperPfType
source <xs:element name="normalValues" type="vs:valueType" minOccurs="0"/>

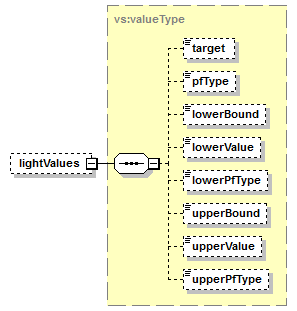

element voltageSchedule/lightValues
diagram voltageschedule_p26.png
type vs:valueType
properties
minOcc 0
maxOcc 1
content complex
children target pfType lowerBound lowerValue lowerPfType upperBound upperValue upperPfType
source <xs:element name="lightValues" type="vs:valueType" minOccurs="0"/>

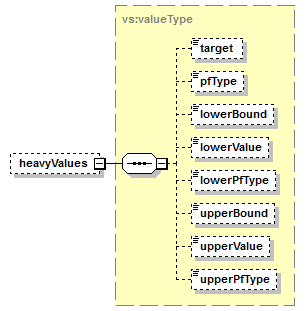

element voltageSchedule/heavyValues
diagram voltageschedule_p27.png
type vs:valueType
properties
minOcc 0
maxOcc 1
content complex
children target pfType lowerBound lowerValue lowerPfType upperBound upperValue upperPfType
source <xs:element name="heavyValues" type="vs:valueType" minOccurs="0"/>

complexType voltageSchedules
diagram voltageschedule_p28.png
namespace http://www.pjm.com/external/schemas/voltageschedule/v1
children voltageSchedule
used by
element voltageSchedules
source <xs:complexType name="voltageSchedules">
  <xs:sequence>
    <xs:element name="voltageSchedule" type="vs:voltageSchedule" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

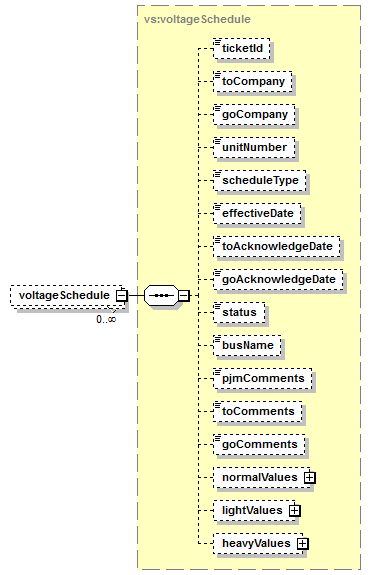

element voltageSchedules/voltageSchedule
diagram voltageschedule_p29.png
type vs:voltageSchedule
properties
minOcc 0
maxOcc unbounded
content complex
children ticketId toCompany goCompany unitNumber scheduleType effectiveDate toAcknowledgeDate goAcknowledgeDate status busName pjmComments toComments goComments normalValues lightValues heavyValues
source <xs:element name="voltageSchedule" type="vs:voltageSchedule" minOccurs="0" maxOccurs="unbounded"/>
