Schema zonalreport.xsd


schema location:  ..\zonalreport.xsd
attributeFormDefault:
elementFormDefault:

Elements  Complex types
zonalData  errorsType
zonalReport  messagesType


element zonalData

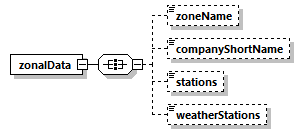

diagram zonalreport_p1.png
properties
content complex
children zoneName companyShortName stations weatherStations
used by
element zonalReport
source <xs:element name="zonalData">
  <xs:complexType>
    <xs:all>
      <xs:element name="zoneName" type="xs:string" minOccurs="0"/>
      <xs:element name="companyShortName" type="xs:string" minOccurs="0"/>
      <xs:element name="stations" type="xs:string" minOccurs="0"/>
      <xs:element name="weatherStations" type="xs:string" minOccurs="0"/>
    </xs:all>
  </xs:complexType>
</xs:element>

element zonalData/zoneName
diagram zonalreport_p2.png
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="zoneName" type="xs:string" minOccurs="0"/>

element zonalData/companyShortName
diagram zonalreport_p3.png
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="companyShortName" type="xs:string" minOccurs="0"/>

element zonalData/stations
diagram zonalreport_p4.png
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="stations" type="xs:string" minOccurs="0"/>

element zonalData/weatherStations
diagram zonalreport_p5.png
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="weatherStations" type="xs:string" minOccurs="0"/>

element zonalReport
diagram zonalreport_p6.png
properties
content complex
children errors messages zonalData
source <xs:element name="zonalReport">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="errors" type="errorsType" minOccurs="0"/>
      <xs:element name="messages" type="messagesType" minOccurs="0"/>
      <xs:element ref="zonalData" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element zonalReport/errors
diagram zonalreport_p7.png
type errorsType
properties
minOcc 0
maxOcc 1
content complex
children error
source <xs:element name="errors" type="errorsType" minOccurs="0"/>

element zonalReport/messages
diagram zonalreport_p8.png
type messagesType
properties
minOcc 0
maxOcc 1
content complex
children message
source <xs:element name="messages" type="messagesType" minOccurs="0"/>

complexType errorsType
diagram zonalreport_p9.png
children error
used by
element zonalReport/errors
source <xs:complexType name="errorsType">
  <xs:sequence>
    <xs:element name="error" type="xs:string" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

element errorsType/error
diagram zonalreport_p10.png
type xs:string
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="error" type="xs:string" maxOccurs="unbounded"/>

complexType messagesType
diagram zonalreport_p11.png
children message
used by
element zonalReport/messages
source <xs:complexType name="messagesType">
  <xs:sequence>
    <xs:element name="message" type="xs:string" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

element messagesType/message
diagram zonalreport_p12.png
type xs:string
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="message" type="xs:string" maxOccurs="unbounded"/>
