Schema generators.xsd


schema location:  http://www.pjm.com/edart/generators.xsd
attributeFormDefault:
elementFormDefault:  qualified

Elements
edart


element edart
diagram generators_files/generators_p1.png
properties
content complex
children generators
source <xs:element name="edart">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="generators">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="generator_list" maxOccurs="unbounded">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="gen_unit">
                    <xs:complexType>
                      <xs:sequence>
                        <xs:element name="generator_id" type="xs:string"/>
                        <xs:element name="generator_name" type="xs:string"/>
                        <xs:element name="generator_type" type="xs:string"/>
                        <xs:element name="capacity" type="xs:string"/>
                        <xs:element name="company_name" type="xs:string"/>
                        <xs:element name="mvar_ratings">
                          <xs:complexType>
                            <xs:sequence>
                              <xs:element name="rating" minOccurs="0" maxOccurs="unbounded">
                                <xs:complexType>
                                  <xs:sequence>
                                    <xs:element name="ta_id" type="xs:string" minOccurs="0"/>
                                    <xs:element name="ems_equip_name" type="xs:string" minOccurs="0"/>
                                    <xs:element name="mw_point" type="xs:string" minOccurs="0"/>
                                    <xs:element name="mvar_max" type="xs:string" minOccurs="0"/>
                                    <xs:element name="mvar_min" type="xs:string" minOccurs="0"/>
                                  </xs:sequence>
                                </xs:complexType>
                              </xs:element>
                            </xs:sequence>
                          </xs:complexType>
                        </xs:element>
                        <xs:element name="voltageControlPhilosophy" type="xs:string" minOccurs="0"/>
                        <xs:element name="meteredMVARValue" type="xs:string" minOccurs="0"/>
                        <xs:element name="pss" type="xs:string" minOccurs="0"/>
                      </xs:sequence>
                    </xs:complexType>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element edart/generators
diagram generators_files/generators_p2.png
properties
content complex
children generator_list
source <xs:element name="generators">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="generator_list" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="gen_unit">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="generator_id" type="xs:string"/>
                  <xs:element name="generator_name" type="xs:string"/>
                  <xs:element name="generator_type" type="xs:string"/>
                  <xs:element name="capacity" type="xs:string"/>
                  <xs:element name="company_name" type="xs:string"/>
                  <xs:element name="mvar_ratings">
                    <xs:complexType>
                      <xs:sequence>
                        <xs:element name="rating" minOccurs="0" maxOccurs="unbounded">
                          <xs:complexType>
                            <xs:sequence>
                              <xs:element name="ta_id" type="xs:string" minOccurs="0"/>
                              <xs:element name="ems_equip_name" type="xs:string" minOccurs="0"/>
                              <xs:element name="mw_point" type="xs:string" minOccurs="0"/>
                              <xs:element name="mvar_max" type="xs:string" minOccurs="0"/>
                              <xs:element name="mvar_min" type="xs:string" minOccurs="0"/>
                            </xs:sequence>
                          </xs:complexType>
                        </xs:element>
                      </xs:sequence>
                    </xs:complexType>
                  </xs:element>
                  <xs:element name="voltageControlPhilosophy" type="xs:string" minOccurs="0"/>
                  <xs:element name="meteredMVARValue" type="xs:string" minOccurs="0"/>
                  <xs:element name="pss" type="xs:string" minOccurs="0"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element edart/generators/generator_list
diagram generators_files/generators_p3.png
properties
minOcc 1
maxOcc unbounded
content complex
children gen_unit
source <xs:element name="generator_list" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="gen_unit">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="generator_id" type="xs:string"/>
            <xs:element name="generator_name" type="xs:string"/>
            <xs:element name="generator_type" type="xs:string"/>
            <xs:element name="capacity" type="xs:string"/>
            <xs:element name="company_name" type="xs:string"/>
            <xs:element name="mvar_ratings">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="rating" minOccurs="0" maxOccurs="unbounded">
                    <xs:complexType>
                      <xs:sequence>
                        <xs:element name="ta_id" type="xs:string" minOccurs="0"/>
                        <xs:element name="ems_equip_name" type="xs:string" minOccurs="0"/>
                        <xs:element name="mw_point" type="xs:string" minOccurs="0"/>
                        <xs:element name="mvar_max" type="xs:string" minOccurs="0"/>
                        <xs:element name="mvar_min" type="xs:string" minOccurs="0"/>
                      </xs:sequence>
                    </xs:complexType>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="voltageControlPhilosophy" type="xs:string" minOccurs="0"/>
            <xs:element name="meteredMVARValue" type="xs:string" minOccurs="0"/>
            <xs:element name="pss" type="xs:string" minOccurs="0"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

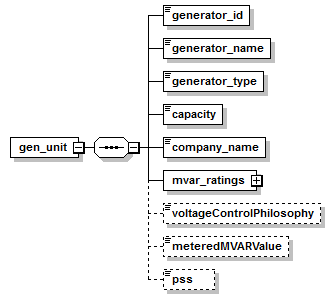

element edart/generators/generator_list/gen_unit
diagram generators_files/generators_p4.png
properties
content complex
children generator_id generator_name generator_type capacity company_name mvar_ratings voltageControlPhilosophy meteredMVARValue pss
source <xs:element name="gen_unit">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="generator_id" type="xs:string"/>
      <xs:element name="generator_name" type="xs:string"/>
      <xs:element name="generator_type" type="xs:string"/>
      <xs:element name="capacity" type="xs:string"/>
      <xs:element name="company_name" type="xs:string"/>
      <xs:element name="mvar_ratings">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="rating" minOccurs="0" maxOccurs="unbounded">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="ta_id" type="xs:string" minOccurs="0"/>
                  <xs:element name="ems_equip_name" type="xs:string" minOccurs="0"/>
                  <xs:element name="mw_point" type="xs:string" minOccurs="0"/>
                  <xs:element name="mvar_max" type="xs:string" minOccurs="0"/>
                  <xs:element name="mvar_min" type="xs:string" minOccurs="0"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="voltageControlPhilosophy" type="xs:string" minOccurs="0"/>
      <xs:element name="meteredMVARValue" type="xs:string" minOccurs="0"/>
      <xs:element name="pss" type="xs:string" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element edart/generators/generator_list/gen_unit/generator_id
diagram generators_files/generators_p5.png
type xs:string
properties
content simple
source <xs:element name="generator_id" type="xs:string"/>

element edart/generators/generator_list/gen_unit/generator_name
diagram generators_files/generators_p6.png
type xs:string
properties
content simple
source <xs:element name="generator_name" type="xs:string"/>

element edart/generators/generator_list/gen_unit/generator_type
diagram generators_files/generators_p7.png
type xs:string
properties
content simple
source <xs:element name="generator_type" type="xs:string"/>

element edart/generators/generator_list/gen_unit/capacity
diagram generators_files/generators_p8.png
type xs:string
properties
content simple
source <xs:element name="capacity" type="xs:string"/>

element edart/generators/generator_list/gen_unit/company_name
diagram generators_files/generators_p9.png
type xs:string
properties
content simple
source <xs:element name="company_name" type="xs:string"/>

element edart/generators/generator_list/gen_unit/mvar_ratings
diagram generators_files/generators_p10.png
properties
content complex
children rating
source <xs:element name="mvar_ratings">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="rating" minOccurs="0" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="ta_id" type="xs:string" minOccurs="0"/>
            <xs:element name="ems_equip_name" type="xs:string" minOccurs="0"/>
            <xs:element name="mw_point" type="xs:string" minOccurs="0"/>
            <xs:element name="mvar_max" type="xs:string" minOccurs="0"/>
            <xs:element name="mvar_min" type="xs:string" minOccurs="0"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element edart/generators/generator_list/gen_unit/mvar_ratings/rating
diagram generators_files/generators_p11.png
properties
minOcc 0
maxOcc unbounded
content complex
children ta_id ems_equip_name mw_point mvar_max mvar_min
source <xs:element name="rating" minOccurs="0" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="ta_id" type="xs:string" minOccurs="0"/>
      <xs:element name="ems_equip_name" type="xs:string" minOccurs="0"/>
      <xs:element name="mw_point" type="xs:string" minOccurs="0"/>
      <xs:element name="mvar_max" type="xs:string" minOccurs="0"/>
      <xs:element name="mvar_min" type="xs:string" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element edart/generators/generator_list/gen_unit/mvar_ratings/rating/ta_id
diagram generators_files/generators_p12.png
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="ta_id" type="xs:string" minOccurs="0"/>

element edart/generators/generator_list/gen_unit/mvar_ratings/rating/ems_equip_name
diagram generators_files/generators_p13.png
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="ems_equip_name" type="xs:string" minOccurs="0"/>

element edart/generators/generator_list/gen_unit/mvar_ratings/rating/mw_point
diagram generators_files/generators_p14.png
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="mw_point" type="xs:string" minOccurs="0"/>

element edart/generators/generator_list/gen_unit/mvar_ratings/rating/mvar_max
diagram generators_files/generators_p15.png
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="mvar_max" type="xs:string" minOccurs="0"/>

element edart/generators/generator_list/gen_unit/mvar_ratings/rating/mvar_min
diagram generators_files/generators_p16.png
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="mvar_min" type="xs:string" minOccurs="0"/>

element edart/generators/generator_list/gen_unit/voltageControlPhilosophy
diagram generators_files/generators_p17.png
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="voltageControlPhilosophy" type="xs:string" minOccurs="0"/>

element edart/generators/generator_list/gen_unit/meteredMVARValue
diagram generators_files/generators_p18.png
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="meteredMVARValue" type="xs:string" minOccurs="0"/>

element edart/generators/generator_list/gen_unit/pss
diagram generators_files/generators_p19.png
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="pss" type="xs:string" minOccurs="0"/>
