Schema genticcreate.xsd


schema location C:\Personal\workspace\projects\webapps\eDart\mainApp\src\main\resources\schema\genticcreate.xsd
attributeFormDefault
elementFormDefault qualified

Elements
adj_rating
cause
company
company_ticket_id
date
description
edart
emergency
info_flag
interval_definition
interval_end
interval_start
mvar_adjustments
mvar_max
mvar_min
mw_point
new_default
newgentic
operational_data
outage_type
reduction
ticket_type
time
unitnumber
unknown_end


element adj_rating
diagram genticcreate_p1.png
properties
content complex
children ta_id mw_point mvar_min mvar_max
used by
element mvar_adjustments
source <xs:element name="adj_rating">

<xs:complexType>

<xs:sequence>

<xs:element name="ta_id" type="xs:positiveInteger"/>

<xs:element ref="mw_point"/>

<xs:element ref="mvar_min"/>

<xs:element ref="mvar_max"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element adj_rating/ta_id
diagram genticcreate_p2.png
type xs:positiveInteger
properties
content simple
source <xs:element name="ta_id" type="xs:positiveInteger"/>

element cause
diagram genticcreate_p3.png
type restriction of xs:integer
properties
content simple
used by
element newgentic
facets
Kind Value Annotation
minInclusive -1
maxInclusive 100
source <xs:element name="cause">

<xs:simpleType>

<xs:restriction base="xs:integer">

<xs:minInclusive value="-1"/>

<xs:maxInclusive value="100"/>

</xs:restriction>

</xs:simpleType>
</xs:element>

element company
diagram genticcreate_p4.png
type xs:positiveInteger
properties
content simple
used by
element newgentic
source <xs:element name="company" type="xs:positiveInteger"/>

element company_ticket_id
diagram genticcreate_p5.png
type restriction of xs:string
properties
content simple
used by
element newgentic
facets
Kind Value Annotation
minLength 1
maxLength 30
source <xs:element name="company_ticket_id">

<xs:simpleType>

<xs:restriction base="xs:string">

<xs:maxLength value="30"/>

<xs:minLength value="1"/>

</xs:restriction>

</xs:simpleType>
</xs:element>

element date
diagram genticcreate_p6.png
type xs:string
properties
content simple
used by
elements interval_end interval_start
source <xs:element name="date" type="xs:string"/>

element description
diagram genticcreate_p7.png
type xs:string
properties
content simple
used by
element newgentic
source <xs:element name="description" type="xs:string"/>

element edart
diagram genticcreate_p8.png
properties
content complex
children newgentic
source <xs:element name="edart">

<xs:complexType>

<xs:sequence>

<xs:element ref="newgentic" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element emergency
diagram genticcreate_p9.png
type restriction of xs:string
properties
content simple
used by
element newgentic
facets
Kind Value Annotation
enumeration true
enumeration false
source <xs:element name="emergency">

<xs:simpleType>

<xs:restriction base="xs:string">

<xs:enumeration value="true"/>

<xs:enumeration value="false"/>

</xs:restriction>

</xs:simpleType>
</xs:element>

element info_flag
diagram genticcreate_p10.png
type restriction of xs:string
properties
content simple
used by
element newgentic
facets
Kind Value Annotation
enumeration true
enumeration false
source <xs:element name="info_flag">

<xs:simpleType>

<xs:restriction base="xs:string">

<xs:enumeration value="true"/>

<xs:enumeration value="false"/>

</xs:restriction>

</xs:simpleType>
</xs:element>

element interval_definition
diagram genticcreate_p11.png
properties
content complex
children interval_start interval_end
used by
elements newgentic newgentic/switch
source <xs:element name="interval_definition">

<xs:complexType>

<xs:sequence>

<xs:element ref="interval_start" minOccurs="0"/>

<xs:element ref="interval_end" minOccurs="0"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element interval_end
diagram genticcreate_p12.png
properties
content complex
children date time
used by
element interval_definition
source <xs:element name="interval_end">

<xs:complexType>

<xs:sequence>

<xs:element ref="date"/>

<xs:element ref="time"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element interval_start
diagram genticcreate_p13.png
properties
content complex
children date time
used by
elements interval_definition newgentic/ramp_down_time/interval_definition
source <xs:element name="interval_start">

<xs:complexType>

<xs:sequence>

<xs:element ref="date"/>

<xs:element ref="time"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element mvar_adjustments
diagram genticcreate_p14.png
properties
content complex
children adj_rating
used by
element newgentic
source <xs:element name="mvar_adjustments">

<xs:complexType>

<xs:sequence>

<xs:element ref="adj_rating" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element mvar_max
diagram genticcreate_p15.png
type xs:decimal
properties
content simple
used by
element adj_rating
source <xs:element name="mvar_max" type="xs:decimal"/>

element mvar_min
diagram genticcreate_p16.png
type xs:decimal
properties
content simple
used by
element adj_rating
source <xs:element name="mvar_min" type="xs:decimal"/>

element mw_point
diagram genticcreate_p17.png
type xs:integer
properties
content simple
used by
element adj_rating
source <xs:element name="mw_point" type="xs:integer"/>

element new_default
diagram genticcreate_p18.png
type restriction of xs:string
properties
content simple
facets
Kind Value Annotation
enumeration true
enumeration false
source <xs:element name="new_default">

<xs:simpleType>

<xs:restriction base="xs:string">

<xs:enumeration value="true"/>

<xs:enumeration value="false"/>

</xs:restriction>

</xs:simpleType>
</xs:element>

element newgentic

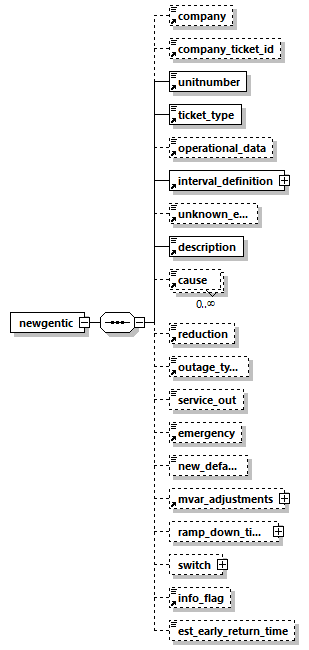

diagram genticcreate_p19.png
properties
content complex
children company company_ticket_id unitnumber ticket_type operational_data interval_definition unknown_end description cause reduction outage_type service_out emergency new_default mvar_adjustments ramp_down_time switch info_flag est_early_return_time
used by
element edart
source <xs:element name="newgentic">

<xs:complexType>

<xs:sequence>

<xs:element ref="company" minOccurs="0"/>

<xs:element ref="company_ticket_id" minOccurs="0"/>

<xs:element ref="unitnumber"/>

<xs:element ref="ticket_type"/>

<xs:element ref="operational_data" minOccurs="0"/>

<xs:element ref="interval_definition"/>

<xs:element ref="unknown_end" minOccurs="0"/>

<xs:element ref="description"/>

<xs:element ref="cause" minOccurs="0" maxOccurs="unbounded"/>

<xs:element ref="reduction" minOccurs="0"/>

<xs:element ref="outage_type" minOccurs="0"/>

<xs:element name="service_out" type="xs:string" minOccurs="0"/>

<xs:element ref="emergency" minOccurs="0"/>

<xs:element name="new_default" type="xs:string" minOccurs="0"/>

<xs:element ref="mvar_adjustments" minOccurs="0"/>

<xs:element name="ramp_down_time" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="interval_definition">

<xs:complexType>

<xs:sequence>

<xs:element ref="interval_start"/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="switch" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element ref="interval_definition"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element ref="info_flag" minOccurs="0"/>

<xs:element name="est_early_return_time" type="xs:dateTime" minOccurs="0" maxOccurs="1"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element newgentic/service_out
diagram genticcreate_p20.png
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="service_out" type="xs:string" minOccurs="0"/>

element newgentic/new_default
diagram genticcreate_p21.png
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="new_default" type="xs:string" minOccurs="0"/>

element newgentic/ramp_down_time
diagram genticcreate_p22.png
properties
minOcc 0
maxOcc 1
content complex
children interval_definition
source <xs:element name="ramp_down_time" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="interval_definition">

<xs:complexType>

<xs:sequence>

<xs:element ref="interval_start"/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element newgentic/ramp_down_time/interval_definition
diagram genticcreate_p23.png
properties
content complex
children interval_start
used by
elements newgentic newgentic/switch
source <xs:element name="interval_definition">

<xs:complexType>

<xs:sequence>

<xs:element ref="interval_start"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element newgentic/switch
diagram genticcreate_p24.png
properties
minOcc 0
maxOcc 1
content complex
children interval_definition
source <xs:element name="switch" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element ref="interval_definition"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element newgentic/est_early_return_time
diagram genticcreate_p25.png
type xs:dateTime
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="est_early_return_time" type="xs:dateTime" minOccurs="0" maxOccurs="1"/>

element operational_data
diagram genticcreate_p26.png
type restriction of xs:boolean
properties
content simple
used by
element newgentic
source <xs:element name="operational_data">

<xs:simpleType>

<xs:restriction base="xs:boolean"/>

</xs:simpleType>
</xs:element>

element outage_type
diagram genticcreate_p27.png
type restriction of xs:string
properties
content simple
used by
element newgentic
facets
Kind Value Annotation
enumeration forecasted planned
enumeration unplanned
enumeration maintenance
enumeration N/A
source <xs:element name="outage_type">

<xs:simpleType>

<xs:restriction base="xs:string">

<xs:enumeration value="forecasted planned"/>

<xs:enumeration value="unplanned"/>

<xs:enumeration value="maintenance"/>

<xs:enumeration value="N/A"/>

</xs:restriction>

</xs:simpleType>
</xs:element>

element reduction
diagram genticcreate_p28.png
type xs:short
properties
content simple
used by
element newgentic
source <xs:element name="reduction" type="xs:short"/>

element ticket_type
diagram genticcreate_p29.png
type restriction of xs:byte
properties
content simple
used by
element newgentic
facets
Kind Value Annotation
enumeration 1
enumeration 2
enumeration 3
enumeration 4
enumeration 5
enumeration 6
source <xs:element name="ticket_type">

<xs:simpleType>

<xs:restriction base="xs:byte">

<xs:enumeration value="1"/>

<xs:enumeration value="2"/>

<xs:enumeration value="3"/>

<xs:enumeration value="4"/>

<xs:enumeration value="5"/>

<xs:enumeration value="6"/>

</xs:restriction>

</xs:simpleType>
</xs:element>

element time
diagram genticcreate_p30.png
type xs:string
properties
content simple
used by
elements interval_end interval_start
source <xs:element name="time" type="xs:string"/>

element unitnumber
diagram genticcreate_p31.png
type xs:integer
properties
content simple
used by
element newgentic
source <xs:element name="unitnumber" type="xs:integer"/>

element unknown_end
diagram genticcreate_p32.png
type restriction of xs:string
properties
content simple
used by
element newgentic
facets
Kind Value Annotation
enumeration true
enumeration false
source <xs:element name="unknown_end">

<xs:simpleType>

<xs:restriction base="xs:string">

<xs:enumeration value="true"/>

<xs:enumeration value="false"/>

</xs:restriction>

</xs:simpleType>
</xs:element>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
