Schema transticnotifyreview.xsd


schema location
attributeFormDefault
elementFormDefault qualified

Elements  Complex types
date  equipment_default
edart  FileList
interval_definition  modeling_requests
time  ModelingRequest


element date
diagram transticnotifyreview_p1.png
type xsd:date
properties
content  simple
used by
elements  edart/transticnotifyreview/genoff_conflict/scenario/potential_gaps/interval_end edart/transticnotifyreview/company_actuals/interval_definition/interval_end interval_definition/interval_end edart/transticnotifyreview/genoff_conflict/scenario/potential_gaps/interval_start edart/transticnotifyreview/company_actuals/interval_definition/interval_start interval_definition/interval_start
source <xsd:element name="date" type="xsd:date"/>

element edart
diagram transticnotifyreview_p2.png
properties
content  complex
children transticnotifyreview
source <xsd:element name="edart">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="transticnotifyreview" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="company_name" minOccurs="0"/>

<xsd:element name="pjm_ticket_id" type="xsd:positiveInteger"/>

<xsd:element name="company_ticket_id" minOccurs="0">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:minLength value="1"/>

<xsd:maxLength value="30"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="description" type="xsd:string"/>

<xsd:element name="pjm_comments" minOccurs="0">

<xsd:simpleType>

<xsd:restriction base="xsd:string"/>

</xsd:simpleType>

</xsd:element>

<xsd:element name="availability" type="xsd:string"/>

<xsd:element name="lock_status" type="xsd:string"/>

<xsd:element name="ticket_status">

<xsd:complexType>

<xsd:all>

<xsd:element name="status" type="xsd:string"/>

<xsd:element name="submittime" type="xsd:string"/>

<xsd:element name="submituser" type="xsd:string"/>

<xsd:element name="receivedtime" type="xsd:string" minOccurs="0"/>

<xsd:element name="receiveduser" type="xsd:string" minOccurs="0"/>

<xsd:element name="revisedtime" type="xsd:string" minOccurs="0"/>

<xsd:element name="reviseduser" type="xsd:string" minOccurs="0"/>

<xsd:element name="activetime" minOccurs="0"/>

<xsd:element name="activeuser" minOccurs="0"/>

<xsd:element name="approvedtime" minOccurs="0"/>

<xsd:element name="approveduser" minOccurs="0"/>

<xsd:element name="cancelledbycompanytime" minOccurs="0"/>

<xsd:element name="cancelledbycompanyuser" minOccurs="0"/>

<xsd:element name="cancelledbypjmtime" minOccurs="0"/>

<xsd:element name="cancelledbypjmuser" minOccurs="0"/>

<xsd:element name="completedtime" minOccurs="0"/>

<xsd:element name="completeduser" minOccurs="0"/>

<xsd:element name="deniedtime" minOccurs="0"/>

<xsd:element name="denieduser" minOccurs="0"/>

<xsd:element name="plannedoutagetime" minOccurs="0"/>

<xsd:element name="plannedoutageuser" minOccurs="0"/>

</xsd:all>

</xsd:complexType>

</xsd:element>

<xsd:element name="modeling_requests" type="modeling_requests"/>

<xsd:element ref="interval_definition"/>

<xsd:element name="outage_type">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="DailyIncludingWeekends"/>

<xsd:enumeration value="DailyNoWeekends"/>

<xsd:enumeration value="DailyWeekendsOnly"/>

<xsd:enumeration value="ContinuousNoWeekends"/>

<xsd:enumeration value="Continuous"/>

<xsd:enumeration value="EMS Tripped"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="ticket_type">

<xsd:complexType>

<xsd:attribute name="info" type="xsd:boolean" use="optional"/>

<xsd:attribute name="emergency" type="xsd:boolean" use="optional"/>

<xsd:attribute name="auto_reclose" type="xsd:boolean" use="optional"/>

<xsd:attribute name="potentially_incomplete" type="xsd:boolean"/>

<xsd:attribute name="directBilling" type="xsd:boolean" use="optional"/>

<xsd:attribute name="directBillingDecline" type="xsd:boolean" use="optional"/>

</xsd:complexType>

</xsd:element>

<xsd:element name="study_note" type="xsd:string" minOccurs="0"/>

<xsd:element name="equipment" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="ta_id" type="xsd:string"/>

<xsd:element name="warning" type="xsd:string" minOccurs="0"/>

<xsd:element name="facility_information">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="type"/>

<xsd:element name="station"/>

<xsd:element name="voltage"/>

<xsd:element name="short_name"/>

<xsd:element name="long_name"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element ref="interval_definition"/>

</xsd:sequence>

<xsd:attribute name="status" type="xsd:string" use="required"/>

</xsd:complexType>

</xsd:element>

<xsd:element name="active_dates" minOccurs="0" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="interval_definition"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="switch">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_definition">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="date">

<xsd:simpleType>

<xsd:restriction base="xsd:date"/>

</xsd:simpleType>

</xsd:element>

<xsd:element name="time">

<xsd:simpleType>

<xsd:restriction base="xsd:time"/>

</xsd:simpleType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="congestionExpected" type="xsd:boolean" minOccurs="0"/>

<xsd:element name="submittedOnTime" type="xsd:boolean" minOccurs="0"/>

<xsd:element name="vegetationFlag" type="xsd:boolean" minOccurs="0"/>

<xsd:element name="cause" type="xsd:int" maxOccurs="unbounded"/>

<xsd:element name="systemImpacts" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="impact" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="impactTitle"/>

<xsd:element name="impactDescription"/>

<xsd:element name="mitigationStatus" type="xsd:string"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="cutInFlag" type="xsd:string" minOccurs="0"/>

<xsd:element name="marketSensitiveFlag" type="xsd:boolean" minOccurs="0"/>

<xsd:element name="at_risk" type="xsd:boolean" minOccurs="0"/>

<xsd:element name="nerctads" minOccurs="0">

<xsd:complexType>

<xsd:choice>

<xsd:element name="planned">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="Maintenance and Construction"/>

<xsd:enumeration value="Other Planned Outage"/>

<xsd:enumeration value="Third Party Request"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="operational">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="Emergency"/>

<xsd:enumeration value="Other Operational Outage"/>

<xsd:enumeration value="System Operating Limit Mitigation, ex Voltage"/>

<xsd:enumeration value="System Voltage Limit Mitigation"/>

<xsd:enumeration value="N/A"/>

<xsd:enumeration value="Human Error"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="autoReclose">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="faultType">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="5"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="outageInitCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="5"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="initCauseCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="17"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="sustainedCauseCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="18"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="outageModeCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="5"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:choice>

</xsd:complexType>

</xsd:element>

<xsd:element name="datelogs" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="datelog" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="interval_definition"/>

<xsd:element name="timestamp" type="xsd:string"/>

<xsd:element name="currentFlag" type="xsd:integer"/>

<xsd:element name="user" type="xsd:string"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="rtepQueueNumber" minOccurs="0">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:maxLength value="50"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="conflict" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="ticket" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="pjm_ticket_id" type="xsd:integer"/>

<xsd:element name="company_ticket_id" type="xsd:string" minOccurs="0"/>

<xsd:element name="ticket_type">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="transmission"/>

<xsd:enumeration value="generation"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="scenario_id" type="xsd:integer"/>

<xsd:element name="title" type="xsd:string"/>

<xsd:element name="status" type="xsd:string"/>

<xsd:element name="mitigation_status" type="xsd:string" minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="genoff_conflict" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="scenario" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="scenario_id" type="xsd:integer"/>

<xsd:element name="scenario_title" type="xsd:string"/>

<xsd:element name="mitigation_status" type="xsd:string"/>

<xsd:element name="tickets" minOccurs="0" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="pjm_ticket_id" type="xsd:integer"/>

<xsd:element name="company_ticket_id" type="xsd:string" minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="potential_gaps" minOccurs="0" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="interval_end">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="actual_out" type="xsd:int"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="company_actuals" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_definition" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="interval_end" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="equipment_default" type="equipment_default"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticnotifyreview

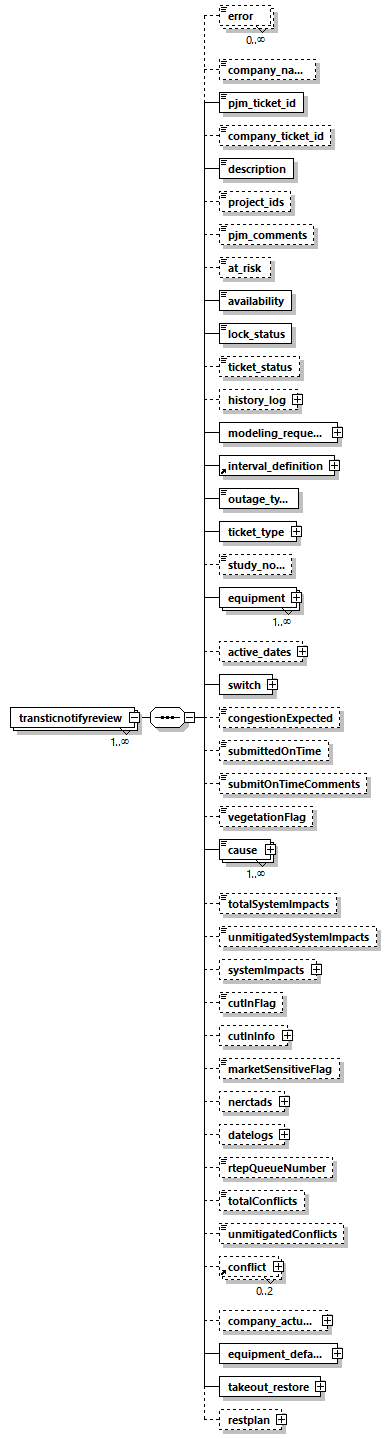

diagram transticnotifyreview_p3.png
properties
minOcc  1
maxOcc  unbounded
content  complex
children company_name pjm_ticket_id company_ticket_id description pjm_comments availability lock_status ticket_status modeling_requests interval_definition outage_type ticket_type study_note equipment active_dates switch congestionExpected submittedOnTime vegetationFlag cause systemImpacts cutInFlag marketSensitiveFlag at_risk nerctads datelogs rtepQueueNumber conflict genoff_conflict company_actuals equipment_default
source <xsd:element name="transticnotifyreview" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="company_name" minOccurs="0"/>

<xsd:element name="pjm_ticket_id" type="xsd:positiveInteger"/>

<xsd:element name="company_ticket_id" minOccurs="0">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:minLength value="1"/>

<xsd:maxLength value="30"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="description" type="xsd:string"/>

<xsd:element name="pjm_comments" minOccurs="0">

<xsd:simpleType>

<xsd:restriction base="xsd:string"/>

</xsd:simpleType>

</xsd:element>

<xsd:element name="availability" type="xsd:string"/>

<xsd:element name="lock_status" type="xsd:string"/>

<xsd:element name="ticket_status">

<xsd:complexType>

<xsd:all>

<xsd:element name="status" type="xsd:string"/>

<xsd:element name="submittime" type="xsd:string"/>

<xsd:element name="submituser" type="xsd:string"/>

<xsd:element name="receivedtime" type="xsd:string" minOccurs="0"/>

<xsd:element name="receiveduser" type="xsd:string" minOccurs="0"/>

<xsd:element name="revisedtime" type="xsd:string" minOccurs="0"/>

<xsd:element name="reviseduser" type="xsd:string" minOccurs="0"/>

<xsd:element name="activetime" minOccurs="0"/>

<xsd:element name="activeuser" minOccurs="0"/>

<xsd:element name="approvedtime" minOccurs="0"/>

<xsd:element name="approveduser" minOccurs="0"/>

<xsd:element name="cancelledbycompanytime" minOccurs="0"/>

<xsd:element name="cancelledbycompanyuser" minOccurs="0"/>

<xsd:element name="cancelledbypjmtime" minOccurs="0"/>

<xsd:element name="cancelledbypjmuser" minOccurs="0"/>

<xsd:element name="completedtime" minOccurs="0"/>

<xsd:element name="completeduser" minOccurs="0"/>

<xsd:element name="deniedtime" minOccurs="0"/>

<xsd:element name="denieduser" minOccurs="0"/>

<xsd:element name="plannedoutagetime" minOccurs="0"/>

<xsd:element name="plannedoutageuser" minOccurs="0"/>

</xsd:all>

</xsd:complexType>

</xsd:element>

<xsd:element name="modeling_requests" type="modeling_requests"/>

<xsd:element ref="interval_definition"/>

<xsd:element name="outage_type">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="DailyIncludingWeekends"/>

<xsd:enumeration value="DailyNoWeekends"/>

<xsd:enumeration value="DailyWeekendsOnly"/>

<xsd:enumeration value="ContinuousNoWeekends"/>

<xsd:enumeration value="Continuous"/>

<xsd:enumeration value="EMS Tripped"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="ticket_type">

<xsd:complexType>

<xsd:attribute name="info" type="xsd:boolean" use="optional"/>

<xsd:attribute name="emergency" type="xsd:boolean" use="optional"/>

<xsd:attribute name="auto_reclose" type="xsd:boolean" use="optional"/>

<xsd:attribute name="potentially_incomplete" type="xsd:boolean"/>

<xsd:attribute name="directBilling" type="xsd:boolean" use="optional"/>

<xsd:attribute name="directBillingDecline" type="xsd:boolean" use="optional"/>

</xsd:complexType>

</xsd:element>

<xsd:element name="study_note" type="xsd:string" minOccurs="0"/>

<xsd:element name="equipment" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="ta_id" type="xsd:string"/>

<xsd:element name="warning" type="xsd:string" minOccurs="0"/>

<xsd:element name="facility_information">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="type"/>

<xsd:element name="station"/>

<xsd:element name="voltage"/>

<xsd:element name="short_name"/>

<xsd:element name="long_name"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element ref="interval_definition"/>

</xsd:sequence>

<xsd:attribute name="status" type="xsd:string" use="required"/>

</xsd:complexType>

</xsd:element>

<xsd:element name="active_dates" minOccurs="0" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="interval_definition"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="switch">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_definition">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="date">

<xsd:simpleType>

<xsd:restriction base="xsd:date"/>

</xsd:simpleType>

</xsd:element>

<xsd:element name="time">

<xsd:simpleType>

<xsd:restriction base="xsd:time"/>

</xsd:simpleType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="congestionExpected" type="xsd:boolean" minOccurs="0"/>

<xsd:element name="submittedOnTime" type="xsd:boolean" minOccurs="0"/>

<xsd:element name="vegetationFlag" type="xsd:boolean" minOccurs="0"/>

<xsd:element name="cause" type="xsd:int" maxOccurs="unbounded"/>

<xsd:element name="systemImpacts" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="impact" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="impactTitle"/>

<xsd:element name="impactDescription"/>

<xsd:element name="mitigationStatus" type="xsd:string"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="cutInFlag" type="xsd:string" minOccurs="0"/>

<xsd:element name="marketSensitiveFlag" type="xsd:boolean" minOccurs="0"/>

<xsd:element name="at_risk" type="xsd:boolean" minOccurs="0"/>

<xsd:element name="nerctads" minOccurs="0">

<xsd:complexType>

<xsd:choice>

<xsd:element name="planned">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="Maintenance and Construction"/>

<xsd:enumeration value="Other Planned Outage"/>

<xsd:enumeration value="Third Party Request"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="operational">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="Emergency"/>

<xsd:enumeration value="Other Operational Outage"/>

<xsd:enumeration value="System Operating Limit Mitigation, ex Voltage"/>

<xsd:enumeration value="System Voltage Limit Mitigation"/>

<xsd:enumeration value="N/A"/>

<xsd:enumeration value="Human Error"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="autoReclose">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="faultType">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="5"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="outageInitCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="5"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="initCauseCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="17"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="sustainedCauseCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="18"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="outageModeCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="5"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:choice>

</xsd:complexType>

</xsd:element>

<xsd:element name="datelogs" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="datelog" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="interval_definition"/>

<xsd:element name="timestamp" type="xsd:string"/>

<xsd:element name="currentFlag" type="xsd:integer"/>

<xsd:element name="user" type="xsd:string"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="rtepQueueNumber" minOccurs="0">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:maxLength value="50"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="conflict" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="ticket" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="pjm_ticket_id" type="xsd:integer"/>

<xsd:element name="company_ticket_id" type="xsd:string" minOccurs="0"/>

<xsd:element name="ticket_type">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="transmission"/>

<xsd:enumeration value="generation"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="scenario_id" type="xsd:integer"/>

<xsd:element name="title" type="xsd:string"/>

<xsd:element name="status" type="xsd:string"/>

<xsd:element name="mitigation_status" type="xsd:string" minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="genoff_conflict" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="scenario" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="scenario_id" type="xsd:integer"/>

<xsd:element name="scenario_title" type="xsd:string"/>

<xsd:element name="mitigation_status" type="xsd:string"/>

<xsd:element name="tickets" minOccurs="0" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="pjm_ticket_id" type="xsd:integer"/>

<xsd:element name="company_ticket_id" type="xsd:string" minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="potential_gaps" minOccurs="0" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="interval_end">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="actual_out" type="xsd:int"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="company_actuals" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_definition" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="interval_end" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="equipment_default" type="equipment_default"/>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticnotifyreview/company_name
diagram transticnotifyreview_p4.png
properties
minOcc  0
maxOcc  1
source <xsd:element name="company_name" minOccurs="0"/>

element edart/transticnotifyreview/pjm_ticket_id
diagram transticnotifyreview_p5.png
type xsd:positiveInteger
properties
content  simple
source <xsd:element name="pjm_ticket_id" type="xsd:positiveInteger"/>

element edart/transticnotifyreview/company_ticket_id
diagram transticnotifyreview_p6.png
type restriction of xsd:string
properties
minOcc  0
maxOcc  1
content  simple
facets
Kind  Value  Annotation
minLength  1
maxLength  30
source <xsd:element name="company_ticket_id" minOccurs="0">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:minLength value="1"/>

<xsd:maxLength value="30"/>

</xsd:restriction>

</xsd:simpleType>
</xsd:element>

element edart/transticnotifyreview/description
diagram transticnotifyreview_p7.png
type xsd:string
properties
content  simple
source <xsd:element name="description" type="xsd:string"/>

element edart/transticnotifyreview/pjm_comments
diagram transticnotifyreview_p8.png
type restriction of xsd:string
properties
minOcc  0
maxOcc  1
content  simple
source <xsd:element name="pjm_comments" minOccurs="0">

<xsd:simpleType>

<xsd:restriction base="xsd:string"/>

</xsd:simpleType>
</xsd:element>

element edart/transticnotifyreview/availability
diagram transticnotifyreview_p9.png
type xsd:string
properties
content  simple
source <xsd:element name="availability" type="xsd:string"/>

element edart/transticnotifyreview/lock_status
diagram transticnotifyreview_p10.png
type xsd:string
properties
content  simple
source <xsd:element name="lock_status" type="xsd:string"/>

element edart/transticnotifyreview/ticket_status
diagram transticnotifyreview_p11.png
properties
content  complex
children status submittime submituser receivedtime receiveduser revisedtime reviseduser activetime activeuser approvedtime approveduser cancelledbycompanytime cancelledbycompanyuser cancelledbypjmtime cancelledbypjmuser completedtime completeduser deniedtime denieduser plannedoutagetime plannedoutageuser
source <xsd:element name="ticket_status">

<xsd:complexType>

<xsd:all>

<xsd:element name="status" type="xsd:string"/>

<xsd:element name="submittime" type="xsd:string"/>

<xsd:element name="submituser" type="xsd:string"/>

<xsd:element name="receivedtime" type="xsd:string" minOccurs="0"/>

<xsd:element name="receiveduser" type="xsd:string" minOccurs="0"/>

<xsd:element name="revisedtime" type="xsd:string" minOccurs="0"/>

<xsd:element name="reviseduser" type="xsd:string" minOccurs="0"/>

<xsd:element name="activetime" minOccurs="0"/>

<xsd:element name="activeuser" minOccurs="0"/>

<xsd:element name="approvedtime" minOccurs="0"/>

<xsd:element name="approveduser" minOccurs="0"/>

<xsd:element name="cancelledbycompanytime" minOccurs="0"/>

<xsd:element name="cancelledbycompanyuser" minOccurs="0"/>

<xsd:element name="cancelledbypjmtime" minOccurs="0"/>

<xsd:element name="cancelledbypjmuser" minOccurs="0"/>

<xsd:element name="completedtime" minOccurs="0"/>

<xsd:element name="completeduser" minOccurs="0"/>

<xsd:element name="deniedtime" minOccurs="0"/>

<xsd:element name="denieduser" minOccurs="0"/>

<xsd:element name="plannedoutagetime" minOccurs="0"/>

<xsd:element name="plannedoutageuser" minOccurs="0"/>

</xsd:all>

</xsd:complexType>
</xsd:element>

element edart/transticnotifyreview/ticket_status/status
diagram transticnotifyreview_p12.png
type xsd:string
properties
content  simple
source <xsd:element name="status" type="xsd:string"/>

element edart/transticnotifyreview/ticket_status/submittime
diagram transticnotifyreview_p13.png
type xsd:string
properties
content  simple
source <xsd:element name="submittime" type="xsd:string"/>

element edart/transticnotifyreview/ticket_status/submituser
diagram transticnotifyreview_p14.png
type xsd:string
properties
content  simple
source <xsd:element name="submituser" type="xsd:string"/>

element edart/transticnotifyreview/ticket_status/receivedtime
diagram transticnotifyreview_p15.png
type xsd:string
properties
minOcc  0
maxOcc  1
content  simple
source <xsd:element name="receivedtime" type="xsd:string" minOccurs="0"/>

element edart/transticnotifyreview/ticket_status/receiveduser
diagram transticnotifyreview_p16.png
type xsd:string
properties
minOcc  0
maxOcc  1
content  simple
source <xsd:element name="receiveduser" type="xsd:string" minOccurs="0"/>

element edart/transticnotifyreview/ticket_status/revisedtime
diagram transticnotifyreview_p17.png
type xsd:string
properties
minOcc  0
maxOcc  1
content  simple
source <xsd:element name="revisedtime" type="xsd:string" minOccurs="0"/>

element edart/transticnotifyreview/ticket_status/reviseduser
diagram transticnotifyreview_p18.png
type xsd:string
properties
minOcc  0
maxOcc  1
content  simple
source <xsd:element name="reviseduser" type="xsd:string" minOccurs="0"/>

element edart/transticnotifyreview/ticket_status/activetime
diagram transticnotifyreview_p19.png
properties
minOcc  0
maxOcc  1
source <xsd:element name="activetime" minOccurs="0"/>

element edart/transticnotifyreview/ticket_status/activeuser
diagram transticnotifyreview_p20.png
properties
minOcc  0
maxOcc  1
source <xsd:element name="activeuser" minOccurs="0"/>

element edart/transticnotifyreview/ticket_status/approvedtime
diagram transticnotifyreview_p21.png
properties
minOcc  0
maxOcc  1
source <xsd:element name="approvedtime" minOccurs="0"/>

element edart/transticnotifyreview/ticket_status/approveduser
diagram transticnotifyreview_p22.png
properties
minOcc  0
maxOcc  1
source <xsd:element name="approveduser" minOccurs="0"/>

element edart/transticnotifyreview/ticket_status/cancelledbycompanytime
diagram transticnotifyreview_p23.png
properties
minOcc  0
maxOcc  1
source <xsd:element name="cancelledbycompanytime" minOccurs="0"/>

element edart/transticnotifyreview/ticket_status/cancelledbycompanyuser
diagram transticnotifyreview_p24.png
properties
minOcc  0
maxOcc  1
source <xsd:element name="cancelledbycompanyuser" minOccurs="0"/>

element edart/transticnotifyreview/ticket_status/cancelledbypjmtime
diagram transticnotifyreview_p25.png
properties
minOcc  0
maxOcc  1
source <xsd:element name="cancelledbypjmtime" minOccurs="0"/>

element edart/transticnotifyreview/ticket_status/cancelledbypjmuser
diagram transticnotifyreview_p26.png
properties
minOcc  0
maxOcc  1
source <xsd:element name="cancelledbypjmuser" minOccurs="0"/>

element edart/transticnotifyreview/ticket_status/completedtime
diagram transticnotifyreview_p27.png
properties
minOcc  0
maxOcc  1
source <xsd:element name="completedtime" minOccurs="0"/>

element edart/transticnotifyreview/ticket_status/completeduser
diagram transticnotifyreview_p28.png
properties
minOcc  0
maxOcc  1
source <xsd:element name="completeduser" minOccurs="0"/>

element edart/transticnotifyreview/ticket_status/deniedtime
diagram transticnotifyreview_p29.png
properties
minOcc  0
maxOcc  1
source <xsd:element name="deniedtime" minOccurs="0"/>

element edart/transticnotifyreview/ticket_status/denieduser
diagram transticnotifyreview_p30.png
properties
minOcc  0
maxOcc  1
source <xsd:element name="denieduser" minOccurs="0"/>

element edart/transticnotifyreview/ticket_status/plannedoutagetime
diagram transticnotifyreview_p31.png
properties
minOcc  0
maxOcc  1
source <xsd:element name="plannedoutagetime" minOccurs="0"/>

element edart/transticnotifyreview/ticket_status/plannedoutageuser
diagram transticnotifyreview_p32.png
properties
minOcc  0
maxOcc  1
source <xsd:element name="plannedoutageuser" minOccurs="0"/>

element edart/transticnotifyreview/modeling_requests
diagram transticnotifyreview_p33.png
type modeling_requests
properties
content  complex
children modeling_request
source <xsd:element name="modeling_requests" type="modeling_requests"/>

element edart/transticnotifyreview/outage_type
diagram transticnotifyreview_p34.png
type restriction of xsd:string
properties
content  simple
facets
Kind  Value  Annotation
enumeration  DailyIncludingWeekends
enumeration  DailyNoWeekends
enumeration  DailyWeekendsOnly
enumeration  ContinuousNoWeekends
enumeration  Continuous
enumeration  EMS Tripped
source <xsd:element name="outage_type">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="DailyIncludingWeekends"/>

<xsd:enumeration value="DailyNoWeekends"/>

<xsd:enumeration value="DailyWeekendsOnly"/>

<xsd:enumeration value="ContinuousNoWeekends"/>

<xsd:enumeration value="Continuous"/>

<xsd:enumeration value="EMS Tripped"/>

</xsd:restriction>

</xsd:simpleType>
</xsd:element>

element edart/transticnotifyreview/ticket_type
diagram transticnotifyreview_p35.png
properties
content  complex
attributes
Name   Type   Use   Default   Fixed   Annotation
info   xsd:boolean   optional
emergency   xsd:boolean   optional
auto_reclose   xsd:boolean   optional
potentially_incomplete   xsd:boolean
directBilling   xsd:boolean   optional
directBillingDecline   xsd:boolean   optional
source <xsd:element name="ticket_type">

<xsd:complexType>

<xsd:attribute name="info" type="xsd:boolean" use="optional"/>

<xsd:attribute name="emergency" type="xsd:boolean" use="optional"/>

<xsd:attribute name="auto_reclose" type="xsd:boolean" use="optional"/>

<xsd:attribute name="potentially_incomplete" type="xsd:boolean"/>

<xsd:attribute name="directBilling" type="xsd:boolean" use="optional"/>

<xsd:attribute name="directBillingDecline" type="xsd:boolean" use="optional"/>

</xsd:complexType>
</xsd:element>

attribute edart/transticnotifyreview/ticket_type/@info
type xsd:boolean
properties
use  optional
source <xsd:attribute name="info" type="xsd:boolean" use="optional"/>

attribute edart/transticnotifyreview/ticket_type/@emergency
type xsd:boolean
properties
use  optional
source <xsd:attribute name="emergency" type="xsd:boolean" use="optional"/>

attribute edart/transticnotifyreview/ticket_type/@auto_reclose
type xsd:boolean
properties
use  optional
source <xsd:attribute name="auto_reclose" type="xsd:boolean" use="optional"/>

attribute edart/transticnotifyreview/ticket_type/@potentially_incomplete
type xsd:boolean
source <xsd:attribute name="potentially_incomplete" type="xsd:boolean"/>

attribute edart/transticnotifyreview/ticket_type/@directBilling
type xsd:boolean
properties
use  optional
source <xsd:attribute name="directBilling" type="xsd:boolean" use="optional"/>

attribute edart/transticnotifyreview/ticket_type/@directBillingDecline
type xsd:boolean
properties
use  optional
source <xsd:attribute name="directBillingDecline" type="xsd:boolean" use="optional"/>

element edart/transticnotifyreview/study_note
diagram transticnotifyreview_p36.png
type xsd:string
properties
minOcc  0
maxOcc  1
content  simple
source <xsd:element name="study_note" type="xsd:string" minOccurs="0"/>

element edart/transticnotifyreview/equipment
diagram transticnotifyreview_p37.png
properties
minOcc  1
maxOcc  unbounded
content  complex
children ta_id warning facility_information interval_definition
attributes
Name   Type   Use   Default   Fixed   Annotation
status   xsd:string   required
source <xsd:element name="equipment" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="ta_id" type="xsd:string"/>

<xsd:element name="warning" type="xsd:string" minOccurs="0"/>

<xsd:element name="facility_information">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="type"/>

<xsd:element name="station"/>

<xsd:element name="voltage"/>

<xsd:element name="short_name"/>

<xsd:element name="long_name"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element ref="interval_definition"/>

</xsd:sequence>

<xsd:attribute name="status" type="xsd:string" use="required"/>

</xsd:complexType>
</xsd:element>

attribute edart/transticnotifyreview/equipment/@status
type xsd:string
properties
use  required
source <xsd:attribute name="status" type="xsd:string" use="required"/>

element edart/transticnotifyreview/equipment/ta_id
diagram transticnotifyreview_p38.png
type xsd:string
properties
content  simple
source <xsd:element name="ta_id" type="xsd:string"/>

element edart/transticnotifyreview/equipment/warning
diagram transticnotifyreview_p39.png
type xsd:string
properties
minOcc  0
maxOcc  1
content  simple
source <xsd:element name="warning" type="xsd:string" minOccurs="0"/>

element edart/transticnotifyreview/equipment/facility_information
diagram transticnotifyreview_p40.png
properties
content  complex
children type station voltage short_name long_name
source <xsd:element name="facility_information">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="type"/>

<xsd:element name="station"/>

<xsd:element name="voltage"/>

<xsd:element name="short_name"/>

<xsd:element name="long_name"/>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticnotifyreview/equipment/facility_information/type
diagram transticnotifyreview_p41.png
source <xsd:element name="type"/>

element edart/transticnotifyreview/equipment/facility_information/station
diagram transticnotifyreview_p42.png
source <xsd:element name="station"/>

element edart/transticnotifyreview/equipment/facility_information/voltage
diagram transticnotifyreview_p43.png
source <xsd:element name="voltage"/>

element edart/transticnotifyreview/equipment/facility_information/short_name
diagram transticnotifyreview_p44.png
source <xsd:element name="short_name"/>

element edart/transticnotifyreview/equipment/facility_information/long_name
diagram transticnotifyreview_p45.png
source <xsd:element name="long_name"/>

element edart/transticnotifyreview/active_dates
diagram transticnotifyreview_p46.png
properties
minOcc  0
maxOcc  unbounded
content  complex
children interval_definition
source <xsd:element name="active_dates" minOccurs="0" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="interval_definition"/>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticnotifyreview/switch
diagram transticnotifyreview_p47.png
properties
content  complex
children interval_definition
source <xsd:element name="switch">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_definition">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="date">

<xsd:simpleType>

<xsd:restriction base="xsd:date"/>

</xsd:simpleType>

</xsd:element>

<xsd:element name="time">

<xsd:simpleType>

<xsd:restriction base="xsd:time"/>

</xsd:simpleType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticnotifyreview/switch/interval_definition
diagram transticnotifyreview_p48.png
properties
content  complex
children interval_start
used by
elements  edart/transticnotifyreview/active_dates edart/transticnotifyreview/datelogs/datelog edart/transticnotifyreview/equipment edart/transticnotifyreview
source <xsd:element name="interval_definition">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="date">

<xsd:simpleType>

<xsd:restriction base="xsd:date"/>

</xsd:simpleType>

</xsd:element>

<xsd:element name="time">

<xsd:simpleType>

<xsd:restriction base="xsd:time"/>

</xsd:simpleType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticnotifyreview/switch/interval_definition/interval_start
diagram transticnotifyreview_p49.png
properties
content  complex
children date time
source <xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="date">

<xsd:simpleType>

<xsd:restriction base="xsd:date"/>

</xsd:simpleType>

</xsd:element>

<xsd:element name="time">

<xsd:simpleType>

<xsd:restriction base="xsd:time"/>

</xsd:simpleType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticnotifyreview/switch/interval_definition/interval_start/date
diagram transticnotifyreview_p50.png
type restriction of xsd:date
properties
content  simple
used by
elements  edart/transticnotifyreview/genoff_conflict/scenario/potential_gaps/interval_end edart/transticnotifyreview/company_actuals/interval_definition/interval_end interval_definition/interval_end edart/transticnotifyreview/genoff_conflict/scenario/potential_gaps/interval_start edart/transticnotifyreview/company_actuals/interval_definition/interval_start interval_definition/interval_start
source <xsd:element name="date">

<xsd:simpleType>

<xsd:restriction base="xsd:date"/>

</xsd:simpleType>
</xsd:element>

element edart/transticnotifyreview/switch/interval_definition/interval_start/time
diagram transticnotifyreview_p51.png
type restriction of xsd:time
properties
content  simple
used by
elements  edart/transticnotifyreview/genoff_conflict/scenario/potential_gaps/interval_end edart/transticnotifyreview/company_actuals/interval_definition/interval_end interval_definition/interval_end edart/transticnotifyreview/genoff_conflict/scenario/potential_gaps/interval_start edart/transticnotifyreview/company_actuals/interval_definition/interval_start interval_definition/interval_start
source <xsd:element name="time">

<xsd:simpleType>

<xsd:restriction base="xsd:time"/>

</xsd:simpleType>
</xsd:element>

element edart/transticnotifyreview/congestionExpected
diagram transticnotifyreview_p52.png
type xsd:boolean
properties
minOcc  0
maxOcc  1
content  simple
source <xsd:element name="congestionExpected" type="xsd:boolean" minOccurs="0"/>

element edart/transticnotifyreview/submittedOnTime
diagram transticnotifyreview_p53.png
type xsd:boolean
properties
minOcc  0
maxOcc  1
content  simple
source <xsd:element name="submittedOnTime" type="xsd:boolean" minOccurs="0"/>

element edart/transticnotifyreview/vegetationFlag
diagram transticnotifyreview_p54.png
type xsd:boolean
properties
minOcc  0
maxOcc  1
content  simple
source <xsd:element name="vegetationFlag" type="xsd:boolean" minOccurs="0"/>

element edart/transticnotifyreview/cause
diagram transticnotifyreview_p55.png
type xsd:int
properties
minOcc  1
maxOcc  unbounded
content  simple
source <xsd:element name="cause" type="xsd:int" maxOccurs="unbounded"/>

element edart/transticnotifyreview/systemImpacts
diagram transticnotifyreview_p56.png
properties
minOcc  0
maxOcc  1
content  complex
children impact
source <xsd:element name="systemImpacts" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="impact" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="impactTitle"/>

<xsd:element name="impactDescription"/>

<xsd:element name="mitigationStatus" type="xsd:string"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticnotifyreview/systemImpacts/impact
diagram transticnotifyreview_p57.png
properties
minOcc  1
maxOcc  unbounded
content  complex
children impactTitle impactDescription mitigationStatus
source <xsd:element name="impact" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="impactTitle"/>

<xsd:element name="impactDescription"/>

<xsd:element name="mitigationStatus" type="xsd:string"/>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticnotifyreview/systemImpacts/impact/impactTitle
diagram transticnotifyreview_p58.png
source <xsd:element name="impactTitle"/>

element edart/transticnotifyreview/systemImpacts/impact/impactDescription
diagram transticnotifyreview_p59.png
source <xsd:element name="impactDescription"/>

element edart/transticnotifyreview/systemImpacts/impact/mitigationStatus
diagram transticnotifyreview_p60.png
type xsd:string
properties
content  simple
source <xsd:element name="mitigationStatus" type="xsd:string"/>

element edart/transticnotifyreview/cutInFlag
diagram transticnotifyreview_p61.png
type xsd:string
properties
minOcc  0
maxOcc  1
content  simple
source <xsd:element name="cutInFlag" type="xsd:string" minOccurs="0"/>

element edart/transticnotifyreview/marketSensitiveFlag
diagram transticnotifyreview_p62.png
type xsd:boolean
properties
minOcc  0
maxOcc  1
content  simple
source <xsd:element name="marketSensitiveFlag" type="xsd:boolean" minOccurs="0"/>

element edart/transticnotifyreview/at_risk
diagram transticnotifyreview_p63.png
type xsd:boolean
properties
minOcc  0
maxOcc  1
content  simple
source <xsd:element name="at_risk" type="xsd:boolean" minOccurs="0"/>

element edart/transticnotifyreview/nerctads
diagram transticnotifyreview_p64.png
properties
minOcc  0
maxOcc  1
content  complex
children planned operational autoReclose
source <xsd:element name="nerctads" minOccurs="0">

<xsd:complexType>

<xsd:choice>

<xsd:element name="planned">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="Maintenance and Construction"/>

<xsd:enumeration value="Other Planned Outage"/>

<xsd:enumeration value="Third Party Request"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="operational">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="Emergency"/>

<xsd:enumeration value="Other Operational Outage"/>

<xsd:enumeration value="System Operating Limit Mitigation, ex Voltage"/>

<xsd:enumeration value="System Voltage Limit Mitigation"/>

<xsd:enumeration value="N/A"/>

<xsd:enumeration value="Human Error"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="autoReclose">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="faultType">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="5"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="outageInitCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="5"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="initCauseCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="17"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="sustainedCauseCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="18"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="outageModeCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="5"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:choice>

</xsd:complexType>
</xsd:element>

element edart/transticnotifyreview/nerctads/planned
diagram transticnotifyreview_p65.png
type restriction of xsd:string
properties
content  simple
facets
Kind  Value  Annotation
enumeration  Maintenance and Construction
enumeration  Other Planned Outage
enumeration  Third Party Request
source <xsd:element name="planned">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="Maintenance and Construction"/>

<xsd:enumeration value="Other Planned Outage"/>

<xsd:enumeration value="Third Party Request"/>

</xsd:restriction>

</xsd:simpleType>
</xsd:element>

element edart/transticnotifyreview/nerctads/operational
diagram transticnotifyreview_p66.png
type restriction of xsd:string
properties
content  simple
facets
Kind  Value  Annotation
enumeration  Emergency
enumeration  Other Operational Outage
enumeration  System Operating Limit Mitigation, ex Voltage
enumeration  System Voltage Limit Mitigation
enumeration  N/A
enumeration  Human Error
source <xsd:element name="operational">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="Emergency"/>

<xsd:enumeration value="Other Operational Outage"/>

<xsd:enumeration value="System Operating Limit Mitigation, ex Voltage"/>

<xsd:enumeration value="System Voltage Limit Mitigation"/>

<xsd:enumeration value="N/A"/>

<xsd:enumeration value="Human Error"/>

</xsd:restriction>

</xsd:simpleType>
</xsd:element>

element edart/transticnotifyreview/nerctads/autoReclose
diagram transticnotifyreview_p67.png
properties
content  complex
children faultType outageInitCode initCauseCode sustainedCauseCode outageModeCode
source <xsd:element name="autoReclose">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="faultType">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="5"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="outageInitCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="5"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="initCauseCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="17"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="sustainedCauseCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="18"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="outageModeCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="5"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticnotifyreview/nerctads/autoReclose/faultType
diagram transticnotifyreview_p68.png
type restriction of xsd:integer
properties
content  simple
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  5
source <xsd:element name="faultType">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="5"/>

</xsd:restriction>

</xsd:simpleType>
</xsd:element>

element edart/transticnotifyreview/nerctads/autoReclose/outageInitCode
diagram transticnotifyreview_p69.png
type restriction of xsd:integer
properties
content  simple
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  5
source <xsd:element name="outageInitCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="5"/>

</xsd:restriction>

</xsd:simpleType>
</xsd:element>

element edart/transticnotifyreview/nerctads/autoReclose/initCauseCode
diagram transticnotifyreview_p70.png
type restriction of xsd:integer
properties
content  simple
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  17
source <xsd:element name="initCauseCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="17"/>

</xsd:restriction>

</xsd:simpleType>
</xsd:element>

element edart/transticnotifyreview/nerctads/autoReclose/sustainedCauseCode
diagram transticnotifyreview_p71.png
type restriction of xsd:integer
properties
content  simple
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  18
source <xsd:element name="sustainedCauseCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="18"/>

</xsd:restriction>

</xsd:simpleType>
</xsd:element>

element edart/transticnotifyreview/nerctads/autoReclose/outageModeCode
diagram transticnotifyreview_p72.png
type restriction of xsd:integer
properties
content  simple
facets
Kind  Value  Annotation
minInclusive  0
maxInclusive  5
source <xsd:element name="outageModeCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="5"/>

</xsd:restriction>

</xsd:simpleType>
</xsd:element>

element edart/transticnotifyreview/datelogs
diagram transticnotifyreview_p73.png
properties
minOcc  0
maxOcc  1
content  complex
children datelog
source <xsd:element name="datelogs" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="datelog" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="interval_definition"/>

<xsd:element name="timestamp" type="xsd:string"/>

<xsd:element name="currentFlag" type="xsd:integer"/>

<xsd:element name="user" type="xsd:string"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticnotifyreview/datelogs/datelog
diagram transticnotifyreview_p74.png
properties
minOcc  1
maxOcc  unbounded
content  complex
children interval_definition timestamp currentFlag user
source <xsd:element name="datelog" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="interval_definition"/>

<xsd:element name="timestamp" type="xsd:string"/>

<xsd:element name="currentFlag" type="xsd:integer"/>

<xsd:element name="user" type="xsd:string"/>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticnotifyreview/datelogs/datelog/timestamp
diagram transticnotifyreview_p75.png
type xsd:string
properties
content  simple
source <xsd:element name="timestamp" type="xsd:string"/>

element edart/transticnotifyreview/datelogs/datelog/currentFlag
diagram transticnotifyreview_p76.png
type xsd:integer
properties
content  simple
source <xsd:element name="currentFlag" type="xsd:integer"/>

element edart/transticnotifyreview/datelogs/datelog/user
diagram transticnotifyreview_p77.png
type xsd:string
properties
content  simple
source <xsd:element name="user" type="xsd:string"/>

element edart/transticnotifyreview/rtepQueueNumber
diagram transticnotifyreview_p78.png
type restriction of xsd:string
properties
minOcc  0
maxOcc  1
content  simple
facets
Kind  Value  Annotation
maxLength  50
source <xsd:element name="rtepQueueNumber" minOccurs="0">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:maxLength value="50"/>

</xsd:restriction>

</xsd:simpleType>
</xsd:element>

element edart/transticnotifyreview/conflict
diagram transticnotifyreview_p79.png
properties
minOcc  0
maxOcc  1
content  complex
children ticket
source <xsd:element name="conflict" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="ticket" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="pjm_ticket_id" type="xsd:integer"/>

<xsd:element name="company_ticket_id" type="xsd:string" minOccurs="0"/>

<xsd:element name="ticket_type">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="transmission"/>

<xsd:enumeration value="generation"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="scenario_id" type="xsd:integer"/>

<xsd:element name="title" type="xsd:string"/>

<xsd:element name="status" type="xsd:string"/>

<xsd:element name="mitigation_status" type="xsd:string" minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticnotifyreview/conflict/ticket
diagram transticnotifyreview_p80.png
properties
minOcc  1
maxOcc  unbounded
content  complex
children pjm_ticket_id company_ticket_id ticket_type scenario_id title status mitigation_status
source <xsd:element name="ticket" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="pjm_ticket_id" type="xsd:integer"/>

<xsd:element name="company_ticket_id" type="xsd:string" minOccurs="0"/>

<xsd:element name="ticket_type">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="transmission"/>

<xsd:enumeration value="generation"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="scenario_id" type="xsd:integer"/>

<xsd:element name="title" type="xsd:string"/>

<xsd:element name="status" type="xsd:string"/>

<xsd:element name="mitigation_status" type="xsd:string" minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticnotifyreview/conflict/ticket/pjm_ticket_id
diagram transticnotifyreview_p81.png
type xsd:integer
properties
content  simple
source <xsd:element name="pjm_ticket_id" type="xsd:integer"/>

element edart/transticnotifyreview/conflict/ticket/company_ticket_id
diagram transticnotifyreview_p82.png
type xsd:string
properties
minOcc  0
maxOcc  1
content  simple
source <xsd:element name="company_ticket_id" type="xsd:string" minOccurs="0"/>

element edart/transticnotifyreview/conflict/ticket/ticket_type
diagram transticnotifyreview_p83.png
type restriction of xsd:string
properties
content  simple
facets
Kind  Value  Annotation
enumeration  transmission
enumeration  generation
source <xsd:element name="ticket_type">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="transmission"/>

<xsd:enumeration value="generation"/>

</xsd:restriction>

</xsd:simpleType>
</xsd:element>

element edart/transticnotifyreview/conflict/ticket/scenario_id
diagram transticnotifyreview_p84.png
type xsd:integer
properties
content  simple
source <xsd:element name="scenario_id" type="xsd:integer"/>

element edart/transticnotifyreview/conflict/ticket/title
diagram transticnotifyreview_p85.png
type xsd:string
properties
content  simple
source <xsd:element name="title" type="xsd:string"/>

element edart/transticnotifyreview/conflict/ticket/status
diagram transticnotifyreview_p86.png
type xsd:string
properties
content  simple
source <xsd:element name="status" type="xsd:string"/>

element edart/transticnotifyreview/conflict/ticket/mitigation_status
diagram transticnotifyreview_p87.png
type xsd:string
properties
minOcc  0
maxOcc  1
content  simple
source <xsd:element name="mitigation_status" type="xsd:string" minOccurs="0"/>

element edart/transticnotifyreview/genoff_conflict
diagram transticnotifyreview_p88.png
properties
minOcc  0
maxOcc  1
content  complex
children scenario
source <xsd:element name="genoff_conflict" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="scenario" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="scenario_id" type="xsd:integer"/>

<xsd:element name="scenario_title" type="xsd:string"/>

<xsd:element name="mitigation_status" type="xsd:string"/>

<xsd:element name="tickets" minOccurs="0" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="pjm_ticket_id" type="xsd:integer"/>

<xsd:element name="company_ticket_id" type="xsd:string" minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="potential_gaps" minOccurs="0" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="interval_end">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="actual_out" type="xsd:int"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticnotifyreview/genoff_conflict/scenario
diagram transticnotifyreview_p89.png
properties
minOcc  1
maxOcc  unbounded
content  complex
children scenario_id scenario_title mitigation_status tickets potential_gaps
source <xsd:element name="scenario" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="scenario_id" type="xsd:integer"/>

<xsd:element name="scenario_title" type="xsd:string"/>

<xsd:element name="mitigation_status" type="xsd:string"/>

<xsd:element name="tickets" minOccurs="0" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="pjm_ticket_id" type="xsd:integer"/>

<xsd:element name="company_ticket_id" type="xsd:string" minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="potential_gaps" minOccurs="0" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="interval_end">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="actual_out" type="xsd:int"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticnotifyreview/genoff_conflict/scenario/scenario_id
diagram transticnotifyreview_p90.png
type xsd:integer
properties
content  simple
source <xsd:element name="scenario_id" type="xsd:integer"/>

element edart/transticnotifyreview/genoff_conflict/scenario/scenario_title
diagram transticnotifyreview_p91.png
type xsd:string
properties
content  simple
source <xsd:element name="scenario_title" type="xsd:string"/>

element edart/transticnotifyreview/genoff_conflict/scenario/mitigation_status
diagram transticnotifyreview_p92.png
type xsd:string
properties
content  simple
source <xsd:element name="mitigation_status" type="xsd:string"/>

element edart/transticnotifyreview/genoff_conflict/scenario/tickets
diagram transticnotifyreview_p93.png
properties
minOcc  0
maxOcc  unbounded
content  complex
children pjm_ticket_id company_ticket_id
source <xsd:element name="tickets" minOccurs="0" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="pjm_ticket_id" type="xsd:integer"/>

<xsd:element name="company_ticket_id" type="xsd:string" minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticnotifyreview/genoff_conflict/scenario/tickets/pjm_ticket_id
diagram transticnotifyreview_p94.png
type xsd:integer
properties
content  simple
source <xsd:element name="pjm_ticket_id" type="xsd:integer"/>

element edart/transticnotifyreview/genoff_conflict/scenario/tickets/company_ticket_id
diagram transticnotifyreview_p95.png
type xsd:string
properties
minOcc  0
maxOcc  1
content  simple
source <xsd:element name="company_ticket_id" type="xsd:string" minOccurs="0"/>

element edart/transticnotifyreview/genoff_conflict/scenario/potential_gaps
diagram transticnotifyreview_p96.png
properties
minOcc  0
maxOcc  unbounded
content  complex
children interval_start interval_end actual_out
source <xsd:element name="potential_gaps" minOccurs="0" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="interval_end">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="actual_out" type="xsd:int"/>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticnotifyreview/genoff_conflict/scenario/potential_gaps/interval_start
diagram transticnotifyreview_p97.png
properties
content  complex
children date time
source <xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticnotifyreview/genoff_conflict/scenario/potential_gaps/interval_end
diagram transticnotifyreview_p98.png
properties
content  complex
children date time
source <xsd:element name="interval_end">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticnotifyreview/genoff_conflict/scenario/potential_gaps/actual_out
diagram transticnotifyreview_p99.png
type xsd:int
properties
content  simple
source <xsd:element name="actual_out" type="xsd:int"/>

element edart/transticnotifyreview/company_actuals
diagram transticnotifyreview_p100.png
properties
minOcc  0
maxOcc  1
content  complex
children interval_definition
source <xsd:element name="company_actuals" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_definition" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="interval_end" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticnotifyreview/company_actuals/interval_definition
diagram transticnotifyreview_p101.png
properties
minOcc  1
maxOcc  unbounded
content  complex
children interval_start interval_end
used by
elements  edart/transticnotifyreview/active_dates edart/transticnotifyreview/datelogs/datelog edart/transticnotifyreview/equipment edart/transticnotifyreview
source <xsd:element name="interval_definition" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="interval_end" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticnotifyreview/company_actuals/interval_definition/interval_start
diagram transticnotifyreview_p102.png
properties
content  complex
children date time
source <xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticnotifyreview/company_actuals/interval_definition/interval_end
diagram transticnotifyreview_p103.png
properties
minOcc  0
maxOcc  1
content  complex
children date time
source <xsd:element name="interval_end" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticnotifyreview/equipment_default
diagram transticnotifyreview_p104.png
type equipment_default
properties
content  complex
children equipment
source <xsd:element name="equipment_default" type="equipment_default"/>

element interval_definition
diagram transticnotifyreview_p105.png
properties
content  complex
children interval_start interval_end
used by
elements  edart/transticnotifyreview/active_dates edart/transticnotifyreview/datelogs/datelog edart/transticnotifyreview/equipment edart/transticnotifyreview
source <xsd:element name="interval_definition">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="interval_end" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element interval_definition/interval_start
diagram transticnotifyreview_p106.png
properties
content  complex
children date time
source <xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element interval_definition/interval_end
diagram transticnotifyreview_p107.png
properties
minOcc  0
maxOcc  1
content  complex
children date time
source <xsd:element name="interval_end" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element time
diagram transticnotifyreview_p108.png
type restriction of xsd:time
properties
content  simple
used by
elements  edart/transticnotifyreview/genoff_conflict/scenario/potential_gaps/interval_end edart/transticnotifyreview/company_actuals/interval_definition/interval_end interval_definition/interval_end edart/transticnotifyreview/genoff_conflict/scenario/potential_gaps/interval_start edart/transticnotifyreview/company_actuals/interval_definition/interval_start interval_definition/interval_start
source <xsd:element name="time">

<xsd:simpleType>

<xsd:restriction base="xsd:time"/>

</xsd:simpleType>
</xsd:element>

complexType equipment_default
diagram transticnotifyreview_p109.png
children equipment
used by
element  edart/transticnotifyreview/equipment_default
source <xsd:complexType name="equipment_default">

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element name="equipment">

<xsd:complexType>

<xsd:all>

<xsd:element name="default_status" type="xsd:string"/>

</xsd:all>

<xsd:attribute name="ta_id" type="xsd:long" use="required"/>

</xsd:complexType>

</xsd:element>

</xsd:choice>
</xsd:complexType>

element equipment_default/equipment
diagram transticnotifyreview_p110.png
properties
content  complex
children default_status
attributes
Name   Type   Use   Default   Fixed   Annotation
ta_id   xsd:long   required
source <xsd:element name="equipment">

<xsd:complexType>

<xsd:all>

<xsd:element name="default_status" type="xsd:string"/>

</xsd:all>

<xsd:attribute name="ta_id" type="xsd:long" use="required"/>

</xsd:complexType>
</xsd:element>

attribute equipment_default/equipment/@ta_id
type xsd:long
properties
use  required
source <xsd:attribute name="ta_id" type="xsd:long" use="required"/>

element equipment_default/equipment/default_status
diagram transticnotifyreview_p111.png
type xsd:string
properties
content  simple
source <xsd:element name="default_status" type="xsd:string"/>

complexType FileList
diagram transticnotifyreview_p112.png
children fileName
used by
element  ModelingRequest/fileList
source <xsd:complexType name="FileList">

<xsd:sequence>

<xsd:element name="fileName" type="xsd:string" minOccurs="0" maxOccurs="unbounded"/>

</xsd:sequence>
</xsd:complexType>

element FileList/fileName
diagram transticnotifyreview_p113.png
type xsd:string
properties
minOcc  0
maxOcc  unbounded
content  simple
source <xsd:element name="fileName" type="xsd:string" minOccurs="0" maxOccurs="unbounded"/>

complexType modeling_requests
diagram transticnotifyreview_p114.png
children modeling_request
used by
element  edart/transticnotifyreview/modeling_requests
source <xsd:complexType name="modeling_requests">

<xsd:sequence>

<xsd:element name="modeling_request" type="ModelingRequest" minOccurs="0" maxOccurs="unbounded"/>

</xsd:sequence>
</xsd:complexType>

element modeling_requests/modeling_request
diagram transticnotifyreview_p115.png
type ModelingRequest
properties
minOcc  0
maxOcc  unbounded
content  complex
children title rtep_queue_number company_name status build fileList
attributes
Name   Type   Use   Default   Fixed   Annotation
id   xsd:long   required
source <xsd:element name="modeling_request" type="ModelingRequest" minOccurs="0" maxOccurs="unbounded"/>

complexType ModelingRequest
diagram transticnotifyreview_p116.png
children title rtep_queue_number company_name status build fileList
used by
element  modeling_requests/modeling_request
attributes
Name   Type   Use   Default   Fixed   Annotation
id   xsd:long   required
source <xsd:complexType name="ModelingRequest">

<xsd:sequence>

<xsd:element name="title" type="xsd:string"/>

<xsd:element name="rtep_queue_number" type="xsd:string"/>

<xsd:element name="company_name" type="xsd:string"/>

<xsd:element name="status" type="xsd:string"/>

<xsd:element name="build" type="xsd:string"/>

<xsd:element name="fileList" type="FileList"/>

</xsd:sequence>

<xsd:attribute name="id" type="xsd:long" use="required"/>
</xsd:complexType>

attribute ModelingRequest/@id
type xsd:long
properties
use  required
source <xsd:attribute name="id" type="xsd:long" use="required"/>

element ModelingRequest/title
diagram transticnotifyreview_p117.png
type xsd:string
properties
content  simple
source <xsd:element name="title" type="xsd:string"/>

element ModelingRequest/rtep_queue_number
diagram transticnotifyreview_p118.png
type xsd:string
properties
content  simple
source <xsd:element name="rtep_queue_number" type="xsd:string"/>

element ModelingRequest/company_name
diagram transticnotifyreview_p119.png
type xsd:string
properties
content  simple
source <xsd:element name="company_name" type="xsd:string"/>

element ModelingRequest/status
diagram transticnotifyreview_p120.png
type xsd:string
properties
content  simple
source <xsd:element name="status" type="xsd:string"/>

element ModelingRequest/build
diagram transticnotifyreview_p121.png
type xsd:string
properties
content  simple
source <xsd:element name="build" type="xsd:string"/>

element ModelingRequest/fileList
diagram transticnotifyreview_p122.png
type FileList
properties
content  complex
children fileName
source <xsd:element name="fileList" type="FileList"/>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
