Schema transticreview.xsd


schema location C:\Personal\workspace\edart\application\src\main\resources\schema\transticreview.xsd
attributeFormDefault
elementFormDefault qualified

Elements  Complex types
date  equipment_default
edart  FileList
interval_definition  modeling_requests
time  ModelingRequest
restplan


element date
diagram transticreview_p1.png
type xsd:date
properties
content simple
used by
elements edart/transticreview/genoff_conflict/scenario/potential_gaps/interval_end edart/transticreview/company_actuals/interval_definition/interval_end interval_definition/interval_end edart/transticreview/genoff_conflict/scenario/potential_gaps/interval_start edart/transticreview/company_actuals/interval_definition/interval_start interval_definition/interval_start
source <xsd:element name="date" type="xsd:date"/>

element edart
diagram transticreview_p2.png
properties
content complex
children warning transticreview
source <xsd:element name="edart">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="warning" type="xsd:string" minOccurs="0"/>

<xsd:element name="transticreview" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="warning" type="xsd:string" minOccurs="0"/>

<xsd:element name="company_name" type="xsd:string" minOccurs="0"/>

<xsd:element name="pjm_ticket_id" type="xsd:integer"/>

<xsd:element name="company_ticket_id" minOccurs="0">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:minLength value="1"/>

<xsd:maxLength value="30"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="description" type="xsd:string"/>

<xsd:element name="pjm_comments" minOccurs="0">

<xsd:simpleType>

<xsd:restriction base="xsd:string"/>

</xsd:simpleType>

</xsd:element>

<xsd:element name="availability" type="xsd:string"/>

<xsd:element name="lock_status" type="xsd:string"/>

<xsd:element name="ticket_status">

<xsd:complexType>

<xsd:all>

<xsd:element name="status" type="xsd:string"/>

<xsd:element name="submittime" type="xsd:string" minOccurs="0"/>

<xsd:element name="submituser" type="xsd:string" minOccurs="0"/>

<xsd:element name="receivedtime" type="xsd:string" minOccurs="0"/>

<xsd:element name="receiveduser" type="xsd:string" minOccurs="0"/>

<xsd:element name="revisedtime" type="xsd:string" minOccurs="0"/>

<xsd:element name="reviseduser" type="xsd:string" minOccurs="0"/>

<xsd:element name="activetime" type="xsd:string" minOccurs="0"/>

<xsd:element name="activeuser" type="xsd:string" minOccurs="0"/>

<xsd:element name="approvedtime" type="xsd:string" minOccurs="0"/>

<xsd:element name="approveduser" type="xsd:string" minOccurs="0"/>

<xsd:element name="cancelledbycompanytime" type="xsd:string" minOccurs="0"/>

<xsd:element name="cancelledbycompanyuser" type="xsd:string" minOccurs="0"/>

<xsd:element name="cancelledbypjmtime" type="xsd:string" minOccurs="0"/>

<xsd:element name="cancelledbypjmuser" type="xsd:string" minOccurs="0"/>

<xsd:element name="completedtime" type="xsd:string" minOccurs="0"/>

<xsd:element name="completeduser" type="xsd:string" minOccurs="0"/>

<xsd:element name="deniedtime" type="xsd:string" minOccurs="0"/>

<xsd:element name="denieduser" type="xsd:string" minOccurs="0"/>

<xsd:element name="plannedoutagetime" type="xsd:string" minOccurs="0"/>

<xsd:element name="plannedoutageuser" type="xsd:string" minOccurs="0"/>

</xsd:all>

</xsd:complexType>

</xsd:element>

<xsd:element ref="interval_definition"/>

<xsd:element name="outage_type">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="DailyIncludingWeekends"/>

<xsd:enumeration value="DailyNoWeekends"/>

<xsd:enumeration value="DailyWeekendsOnly"/>

<xsd:enumeration value="ContinuousNoWeekends"/>

<xsd:enumeration value="Continuous"/>

<xsd:enumeration value="EMS Tripped"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="ticket_type">

<xsd:complexType>

<xsd:attribute name="info" type="xsd:boolean" use="optional"/>

<xsd:attribute name="emergency" type="xsd:boolean" use="optional"/>

<xsd:attribute name="auto_reclose" type="xsd:boolean" use="optional"/>

<xsd:attribute name="potentially_incomplete" type="xsd:boolean"/>

<xsd:attribute name="directBilling" type="xsd:boolean"/>

<xsd:attribute name="directBillingDecline" type="xsd:boolean"/>

</xsd:complexType>

</xsd:element>

<xsd:element name="study_note" type="xsd:string" minOccurs="0"/>

<xsd:element name="equipment" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="ta_id" type="xsd:string"/>

<xsd:element name="warning" type="xsd:string" minOccurs="0"/>

<xsd:element name="min_var" type="xsd:integer" minOccurs="0"/>

<xsd:element name="max_var" type="xsd:integer" minOccurs="0"/>

<xsd:element ref="interval_definition"/>

</xsd:sequence>

<xsd:attribute name="status" use="required">

<xsd:simpleType>

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="C"/>

<xsd:enumeration value="O"/>

<xsd:enumeration value="E"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:attribute>

<xsd:attribute name="primaryEquipFlag" type="xsd:boolean" use="optional"/>

</xsd:complexType>

</xsd:element>

<xsd:element name="active_dates" minOccurs="0" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="interval_definition"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="switch">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_definition">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="date">

<xsd:simpleType>

<xsd:restriction base="xsd:date"/>

</xsd:simpleType>

</xsd:element>

<xsd:element name="time">

<xsd:simpleType>

<xsd:restriction base="xsd:time"/>

</xsd:simpleType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="congestionExpected" type="xsd:boolean" minOccurs="0"/>

<xsd:element name="submittedOnTime" type="xsd:boolean" minOccurs="0"/>

<xsd:element name="submitOnTimeComments" type="xsd:string" minOccurs="0"/>

<xsd:element name="vegetationFlag" type="xsd:boolean" minOccurs="0"/>

<xsd:element name="cause" type="xsd:int" maxOccurs="unbounded"/>

<xsd:element name="totalSystemImpacts" type="xsd:integer" minOccurs="0"/>

<xsd:element name="mitigatedSystemImpacts" type="xsd:integer" minOccurs="0"/>

<xsd:element name="systemImpacts" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="impact" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="impactTitle" type="xsd:string"/>

<xsd:element name="impactDescription" type="xsd:string"/>

<xsd:element name="mitigationStatus" type="xsd:string" minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="cutInFlag" type="xsd:string" minOccurs="0"/>

<xsd:element name="marketSensitiveFlag" type="xsd:boolean" minOccurs="0"/>

<xsd:element name="at_risk" type="xsd:boolean" minOccurs="0"/>

<xsd:element name="nerctads" minOccurs="0">

<xsd:complexType>

<xsd:choice>

<xsd:element name="planned">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="Maintenance and Construction"/>

<xsd:enumeration value="Other Planned Outage"/>

<xsd:enumeration value="Third Party Request"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="operational">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="Emergency"/>

<xsd:enumeration value="Other Operational Outage"/>

<xsd:enumeration value="System Operating Limit Mitigation, ex Voltage"/>

<xsd:enumeration value="System Voltage Limit Mitigation"/>

<xsd:enumeration value="N/A"/>

<xsd:enumeration value="Human Error"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="autoReclose">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="faultType">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="5"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="outageInitCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="5"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="initCauseCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="17"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="sustainedCauseCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="18"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="outageModeCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="5"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:choice>

</xsd:complexType>

</xsd:element>

<xsd:element name="datelogs" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="datelog" minOccurs="0" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="interval_definition"/>

<xsd:element name="timestamp" type="xsd:string"/>

<xsd:element name="currentFlag" type="xsd:integer"/>

<xsd:element name="user" type="xsd:string"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="rtepQueueNumber" minOccurs="0">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:maxLength value="50"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="totalConflicts" type="xsd:integer" minOccurs="0"/>

<xsd:element name="mitigatedConflicts" type="xsd:integer" minOccurs="0"/>

<xsd:element name="conflict" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="ticket" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="pjm_ticket_id" type="xsd:integer"/>

<xsd:element name="company_ticket_id" type="xsd:string" minOccurs="0"/>

<xsd:element name="ticket_type">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="transmission"/>

<xsd:enumeration value="generation"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="scenario_id" type="xsd:integer"/>

<xsd:element name="title" type="xsd:string"/>

<xsd:element name="status" type="xsd:string"/>

<xsd:element name="mitigationStatus" type="xsd:string" minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="genoff_conflict" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="scenario" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="scenario_id" type="xsd:integer"/>

<xsd:element name="scenario_title" type="xsd:string"/>

<xsd:element name="mitigationStatus" type="xsd:string" minOccurs="0"/>

<xsd:element name="tickets" minOccurs="0" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="pjm_ticket_id" type="xsd:integer"/>

<xsd:element name="company_ticket_id" type="xsd:string" minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="potential_gaps" minOccurs="0" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="interval_end">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="actual_out" type="xsd:int"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="company_actuals" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_definition" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="interval_end" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="fileAttachmentCount" type="xsd:unsignedInt" minOccurs="0"/>

<xsd:element name="fileList" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="file" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="fileName" type="xsd:string"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="fileAttachments" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="attachment" type="xsd:string" maxOccurs="unbounded"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="modeling_requests" type="modeling_requests"/>

<xsd:element name="equipment_default" type="equipment_default"/>

<xsd:element name="restplan" type="restplan" minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/warning
diagram transticreview_p3.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="warning" type="xsd:string" minOccurs="0"/>

element edart/transticreview
diagram transticreview_p4.png
properties
minOcc 1
maxOcc unbounded
content complex
children warning company_name pjm_ticket_id company_ticket_id description pjm_comments availability lock_status ticket_status interval_definition outage_type ticket_type study_note equipment active_dates switch congestionExpected submittedOnTime submitOnTimeComments vegetationFlag cause totalSystemImpacts mitigatedSystemImpacts systemImpacts cutInFlag marketSensitiveFlag at_risk nerctads datelogs rtepQueueNumber totalConflicts mitigatedConflicts conflict genoff_conflict company_actuals fileAttachmentCount fileList fileAttachments modeling_requests equipment_default restplan
source <xsd:element name="transticreview" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="warning" type="xsd:string" minOccurs="0"/>

<xsd:element name="company_name" type="xsd:string" minOccurs="0"/>

<xsd:element name="pjm_ticket_id" type="xsd:integer"/>

<xsd:element name="company_ticket_id" minOccurs="0">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:minLength value="1"/>

<xsd:maxLength value="30"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="description" type="xsd:string"/>

<xsd:element name="pjm_comments" minOccurs="0">

<xsd:simpleType>

<xsd:restriction base="xsd:string"/>

</xsd:simpleType>

</xsd:element>

<xsd:element name="availability" type="xsd:string"/>

<xsd:element name="lock_status" type="xsd:string"/>

<xsd:element name="ticket_status">

<xsd:complexType>

<xsd:all>

<xsd:element name="status" type="xsd:string"/>

<xsd:element name="submittime" type="xsd:string" minOccurs="0"/>

<xsd:element name="submituser" type="xsd:string" minOccurs="0"/>

<xsd:element name="receivedtime" type="xsd:string" minOccurs="0"/>

<xsd:element name="receiveduser" type="xsd:string" minOccurs="0"/>

<xsd:element name="revisedtime" type="xsd:string" minOccurs="0"/>

<xsd:element name="reviseduser" type="xsd:string" minOccurs="0"/>

<xsd:element name="activetime" type="xsd:string" minOccurs="0"/>

<xsd:element name="activeuser" type="xsd:string" minOccurs="0"/>

<xsd:element name="approvedtime" type="xsd:string" minOccurs="0"/>

<xsd:element name="approveduser" type="xsd:string" minOccurs="0"/>

<xsd:element name="cancelledbycompanytime" type="xsd:string" minOccurs="0"/>

<xsd:element name="cancelledbycompanyuser" type="xsd:string" minOccurs="0"/>

<xsd:element name="cancelledbypjmtime" type="xsd:string" minOccurs="0"/>

<xsd:element name="cancelledbypjmuser" type="xsd:string" minOccurs="0"/>

<xsd:element name="completedtime" type="xsd:string" minOccurs="0"/>

<xsd:element name="completeduser" type="xsd:string" minOccurs="0"/>

<xsd:element name="deniedtime" type="xsd:string" minOccurs="0"/>

<xsd:element name="denieduser" type="xsd:string" minOccurs="0"/>

<xsd:element name="plannedoutagetime" type="xsd:string" minOccurs="0"/>

<xsd:element name="plannedoutageuser" type="xsd:string" minOccurs="0"/>

</xsd:all>

</xsd:complexType>

</xsd:element>

<xsd:element ref="interval_definition"/>

<xsd:element name="outage_type">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="DailyIncludingWeekends"/>

<xsd:enumeration value="DailyNoWeekends"/>

<xsd:enumeration value="DailyWeekendsOnly"/>

<xsd:enumeration value="ContinuousNoWeekends"/>

<xsd:enumeration value="Continuous"/>

<xsd:enumeration value="EMS Tripped"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="ticket_type">

<xsd:complexType>

<xsd:attribute name="info" type="xsd:boolean" use="optional"/>

<xsd:attribute name="emergency" type="xsd:boolean" use="optional"/>

<xsd:attribute name="auto_reclose" type="xsd:boolean" use="optional"/>

<xsd:attribute name="potentially_incomplete" type="xsd:boolean"/>

<xsd:attribute name="directBilling" type="xsd:boolean"/>

<xsd:attribute name="directBillingDecline" type="xsd:boolean"/>

</xsd:complexType>

</xsd:element>

<xsd:element name="study_note" type="xsd:string" minOccurs="0"/>

<xsd:element name="equipment" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="ta_id" type="xsd:string"/>

<xsd:element name="warning" type="xsd:string" minOccurs="0"/>

<xsd:element name="min_var" type="xsd:integer" minOccurs="0"/>

<xsd:element name="max_var" type="xsd:integer" minOccurs="0"/>

<xsd:element ref="interval_definition"/>

</xsd:sequence>

<xsd:attribute name="status" use="required">

<xsd:simpleType>

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="C"/>

<xsd:enumeration value="O"/>

<xsd:enumeration value="E"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:attribute>

<xsd:attribute name="primaryEquipFlag" type="xsd:boolean" use="optional"/>

</xsd:complexType>

</xsd:element>

<xsd:element name="active_dates" minOccurs="0" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="interval_definition"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="switch">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_definition">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="date">

<xsd:simpleType>

<xsd:restriction base="xsd:date"/>

</xsd:simpleType>

</xsd:element>

<xsd:element name="time">

<xsd:simpleType>

<xsd:restriction base="xsd:time"/>

</xsd:simpleType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="congestionExpected" type="xsd:boolean" minOccurs="0"/>

<xsd:element name="submittedOnTime" type="xsd:boolean" minOccurs="0"/>

<xsd:element name="submitOnTimeComments" type="xsd:string" minOccurs="0"/>

<xsd:element name="vegetationFlag" type="xsd:boolean" minOccurs="0"/>

<xsd:element name="cause" type="xsd:int" maxOccurs="unbounded"/>

<xsd:element name="totalSystemImpacts" type="xsd:integer" minOccurs="0"/>

<xsd:element name="mitigatedSystemImpacts" type="xsd:integer" minOccurs="0"/>

<xsd:element name="systemImpacts" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="impact" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="impactTitle" type="xsd:string"/>

<xsd:element name="impactDescription" type="xsd:string"/>

<xsd:element name="mitigationStatus" type="xsd:string" minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="cutInFlag" type="xsd:string" minOccurs="0"/>

<xsd:element name="marketSensitiveFlag" type="xsd:boolean" minOccurs="0"/>

<xsd:element name="at_risk" type="xsd:boolean" minOccurs="0"/>

<xsd:element name="nerctads" minOccurs="0">

<xsd:complexType>

<xsd:choice>

<xsd:element name="planned">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="Maintenance and Construction"/>

<xsd:enumeration value="Other Planned Outage"/>

<xsd:enumeration value="Third Party Request"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="operational">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="Emergency"/>

<xsd:enumeration value="Other Operational Outage"/>

<xsd:enumeration value="System Operating Limit Mitigation, ex Voltage"/>

<xsd:enumeration value="System Voltage Limit Mitigation"/>

<xsd:enumeration value="N/A"/>

<xsd:enumeration value="Human Error"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="autoReclose">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="faultType">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="5"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="outageInitCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="5"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="initCauseCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="17"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="sustainedCauseCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="18"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="outageModeCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="5"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:choice>

</xsd:complexType>

</xsd:element>

<xsd:element name="datelogs" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="datelog" minOccurs="0" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="interval_definition"/>

<xsd:element name="timestamp" type="xsd:string"/>

<xsd:element name="currentFlag" type="xsd:integer"/>

<xsd:element name="user" type="xsd:string"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="rtepQueueNumber" minOccurs="0">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:maxLength value="50"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="totalConflicts" type="xsd:integer" minOccurs="0"/>

<xsd:element name="mitigatedConflicts" type="xsd:integer" minOccurs="0"/>

<xsd:element name="conflict" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="ticket" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="pjm_ticket_id" type="xsd:integer"/>

<xsd:element name="company_ticket_id" type="xsd:string" minOccurs="0"/>

<xsd:element name="ticket_type">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="transmission"/>

<xsd:enumeration value="generation"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="scenario_id" type="xsd:integer"/>

<xsd:element name="title" type="xsd:string"/>

<xsd:element name="status" type="xsd:string"/>

<xsd:element name="mitigationStatus" type="xsd:string" minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="genoff_conflict" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="scenario" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="scenario_id" type="xsd:integer"/>

<xsd:element name="scenario_title" type="xsd:string"/>

<xsd:element name="mitigationStatus" type="xsd:string" minOccurs="0"/>

<xsd:element name="tickets" minOccurs="0" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="pjm_ticket_id" type="xsd:integer"/>

<xsd:element name="company_ticket_id" type="xsd:string" minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="potential_gaps" minOccurs="0" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="interval_end">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="actual_out" type="xsd:int"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="company_actuals" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_definition" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="interval_end" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="fileAttachmentCount" type="xsd:unsignedInt" minOccurs="0"/>

<xsd:element name="fileList" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="file" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="fileName" type="xsd:string"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="fileAttachments" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="attachment" type="xsd:string" maxOccurs="unbounded"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="modeling_requests" type="modeling_requests"/>

<xsd:element name="equipment_default" type="equipment_default"/>

<xsd:element name="restplan" type="restplan" minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticreview/warning
diagram transticreview_p5.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="warning" type="xsd:string" minOccurs="0"/>

element edart/transticreview/company_name
diagram transticreview_p6.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="company_name" type="xsd:string" minOccurs="0"/>

element edart/transticreview/pjm_ticket_id
diagram transticreview_p7.png
type xsd:integer
properties
content simple
source <xsd:element name="pjm_ticket_id" type="xsd:integer"/>

element edart/transticreview/company_ticket_id
diagram transticreview_p8.png
type restriction of xsd:string
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minLength 1
maxLength 30
source <xsd:element name="company_ticket_id" minOccurs="0">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:minLength value="1"/>

<xsd:maxLength value="30"/>

</xsd:restriction>

</xsd:simpleType>
</xsd:element>

element edart/transticreview/description
diagram transticreview_p9.png
type xsd:string
properties
content simple
source <xsd:element name="description" type="xsd:string"/>

element edart/transticreview/pjm_comments
diagram transticreview_p10.png
type restriction of xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="pjm_comments" minOccurs="0">

<xsd:simpleType>

<xsd:restriction base="xsd:string"/>

</xsd:simpleType>
</xsd:element>

element edart/transticreview/availability
diagram transticreview_p11.png
type xsd:string
properties
content simple
source <xsd:element name="availability" type="xsd:string"/>

element edart/transticreview/lock_status
diagram transticreview_p12.png
type xsd:string
properties
content simple
source <xsd:element name="lock_status" type="xsd:string"/>

element edart/transticreview/ticket_status
diagram transticreview_p13.png
properties
content complex
children status submittime submituser receivedtime receiveduser revisedtime reviseduser activetime activeuser approvedtime approveduser cancelledbycompanytime cancelledbycompanyuser cancelledbypjmtime cancelledbypjmuser completedtime completeduser deniedtime denieduser plannedoutagetime plannedoutageuser
source <xsd:element name="ticket_status">

<xsd:complexType>

<xsd:all>

<xsd:element name="status" type="xsd:string"/>

<xsd:element name="submittime" type="xsd:string" minOccurs="0"/>

<xsd:element name="submituser" type="xsd:string" minOccurs="0"/>

<xsd:element name="receivedtime" type="xsd:string" minOccurs="0"/>

<xsd:element name="receiveduser" type="xsd:string" minOccurs="0"/>

<xsd:element name="revisedtime" type="xsd:string" minOccurs="0"/>

<xsd:element name="reviseduser" type="xsd:string" minOccurs="0"/>

<xsd:element name="activetime" type="xsd:string" minOccurs="0"/>

<xsd:element name="activeuser" type="xsd:string" minOccurs="0"/>

<xsd:element name="approvedtime" type="xsd:string" minOccurs="0"/>

<xsd:element name="approveduser" type="xsd:string" minOccurs="0"/>

<xsd:element name="cancelledbycompanytime" type="xsd:string" minOccurs="0"/>

<xsd:element name="cancelledbycompanyuser" type="xsd:string" minOccurs="0"/>

<xsd:element name="cancelledbypjmtime" type="xsd:string" minOccurs="0"/>

<xsd:element name="cancelledbypjmuser" type="xsd:string" minOccurs="0"/>

<xsd:element name="completedtime" type="xsd:string" minOccurs="0"/>

<xsd:element name="completeduser" type="xsd:string" minOccurs="0"/>

<xsd:element name="deniedtime" type="xsd:string" minOccurs="0"/>

<xsd:element name="denieduser" type="xsd:string" minOccurs="0"/>

<xsd:element name="plannedoutagetime" type="xsd:string" minOccurs="0"/>

<xsd:element name="plannedoutageuser" type="xsd:string" minOccurs="0"/>

</xsd:all>

</xsd:complexType>
</xsd:element>

element edart/transticreview/ticket_status/status
diagram transticreview_p14.png
type xsd:string
properties
content simple
source <xsd:element name="status" type="xsd:string"/>

element edart/transticreview/ticket_status/submittime
diagram transticreview_p15.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="submittime" type="xsd:string" minOccurs="0"/>

element edart/transticreview/ticket_status/submituser
diagram transticreview_p16.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="submituser" type="xsd:string" minOccurs="0"/>

element edart/transticreview/ticket_status/receivedtime
diagram transticreview_p17.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="receivedtime" type="xsd:string" minOccurs="0"/>

element edart/transticreview/ticket_status/receiveduser
diagram transticreview_p18.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="receiveduser" type="xsd:string" minOccurs="0"/>

element edart/transticreview/ticket_status/revisedtime
diagram transticreview_p19.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="revisedtime" type="xsd:string" minOccurs="0"/>

element edart/transticreview/ticket_status/reviseduser
diagram transticreview_p20.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="reviseduser" type="xsd:string" minOccurs="0"/>

element edart/transticreview/ticket_status/activetime
diagram transticreview_p21.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="activetime" type="xsd:string" minOccurs="0"/>

element edart/transticreview/ticket_status/activeuser
diagram transticreview_p22.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="activeuser" type="xsd:string" minOccurs="0"/>

element edart/transticreview/ticket_status/approvedtime
diagram transticreview_p23.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="approvedtime" type="xsd:string" minOccurs="0"/>

element edart/transticreview/ticket_status/approveduser
diagram transticreview_p24.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="approveduser" type="xsd:string" minOccurs="0"/>

element edart/transticreview/ticket_status/cancelledbycompanytime
diagram transticreview_p25.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="cancelledbycompanytime" type="xsd:string" minOccurs="0"/>

element edart/transticreview/ticket_status/cancelledbycompanyuser
diagram transticreview_p26.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="cancelledbycompanyuser" type="xsd:string" minOccurs="0"/>

element edart/transticreview/ticket_status/cancelledbypjmtime
diagram transticreview_p27.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="cancelledbypjmtime" type="xsd:string" minOccurs="0"/>

element edart/transticreview/ticket_status/cancelledbypjmuser

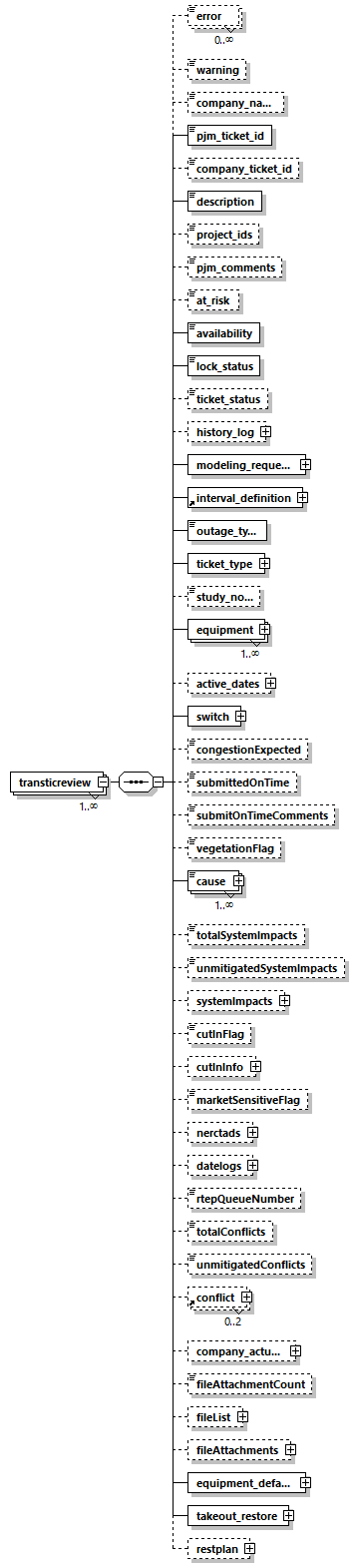

diagram transticreview_p28.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="cancelledbypjmuser" type="xsd:string" minOccurs="0"/>

element edart/transticreview/ticket_status/completedtime
diagram transticreview_p29.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="completedtime" type="xsd:string" minOccurs="0"/>

element edart/transticreview/ticket_status/completeduser
diagram transticreview_p30.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="completeduser" type="xsd:string" minOccurs="0"/>

element edart/transticreview/ticket_status/deniedtime
diagram transticreview_p31.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="deniedtime" type="xsd:string" minOccurs="0"/>

element edart/transticreview/ticket_status/denieduser
diagram transticreview_p32.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="denieduser" type="xsd:string" minOccurs="0"/>

element edart/transticreview/ticket_status/plannedoutagetime
diagram transticreview_p33.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="plannedoutagetime" type="xsd:string" minOccurs="0"/>

element edart/transticreview/ticket_status/plannedoutageuser
diagram transticreview_p34.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="plannedoutageuser" type="xsd:string" minOccurs="0"/>

element edart/transticreview/outage_type
diagram transticreview_p35.png
type restriction of xsd:string
properties
content simple
facets
Kind Value Annotation
enumeration DailyIncludingWeekends
enumeration DailyNoWeekends
enumeration DailyWeekendsOnly
enumeration ContinuousNoWeekends
enumeration Continuous
enumeration EMS Tripped
source <xsd:element name="outage_type">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="DailyIncludingWeekends"/>

<xsd:enumeration value="DailyNoWeekends"/>

<xsd:enumeration value="DailyWeekendsOnly"/>

<xsd:enumeration value="ContinuousNoWeekends"/>

<xsd:enumeration value="Continuous"/>

<xsd:enumeration value="EMS Tripped"/>

</xsd:restriction>

</xsd:simpleType>
</xsd:element>

element edart/transticreview/ticket_type
diagram transticreview_p36.png
properties
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
info  xsd:boolean  optional
emergency  xsd:boolean  optional
auto_reclose  xsd:boolean  optional
potentially_incomplete  xsd:boolean
directBilling  xsd:boolean
directBillingDecline  xsd:boolean
source <xsd:element name="ticket_type">

<xsd:complexType>

<xsd:attribute name="info" type="xsd:boolean" use="optional"/>

<xsd:attribute name="emergency" type="xsd:boolean" use="optional"/>

<xsd:attribute name="auto_reclose" type="xsd:boolean" use="optional"/>

<xsd:attribute name="potentially_incomplete" type="xsd:boolean"/>

<xsd:attribute name="directBilling" type="xsd:boolean"/>

<xsd:attribute name="directBillingDecline" type="xsd:boolean"/>

</xsd:complexType>
</xsd:element>

attribute edart/transticreview/ticket_type/@info
type xsd:boolean
properties
use optional
source <xsd:attribute name="info" type="xsd:boolean" use="optional"/>

attribute edart/transticreview/ticket_type/@emergency
type xsd:boolean
properties
use optional
source <xsd:attribute name="emergency" type="xsd:boolean" use="optional"/>

attribute edart/transticreview/ticket_type/@auto_reclose
type xsd:boolean
properties
use optional
source <xsd:attribute name="auto_reclose" type="xsd:boolean" use="optional"/>

attribute edart/transticreview/ticket_type/@potentially_incomplete
type xsd:boolean
source <xsd:attribute name="potentially_incomplete" type="xsd:boolean"/>

attribute edart/transticreview/ticket_type/@directBilling
type xsd:boolean
source <xsd:attribute name="directBilling" type="xsd:boolean"/>

attribute edart/transticreview/ticket_type/@directBillingDecline
type xsd:boolean
source <xsd:attribute name="directBillingDecline" type="xsd:boolean"/>

element edart/transticreview/study_note
diagram transticreview_p37.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="study_note" type="xsd:string" minOccurs="0"/>

element edart/transticreview/equipment
diagram transticreview_p38.png
properties
minOcc 1
maxOcc unbounded
content complex
children ta_id warning min_var max_var interval_definition
attributes
Name  Type  Use  Default  Fixed  Annotation
status  derived by: xsd:NMTOKEN  required
primaryEquipFlag  xsd:boolean  optional
source <xsd:element name="equipment" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="ta_id" type="xsd:string"/>

<xsd:element name="warning" type="xsd:string" minOccurs="0"/>

<xsd:element name="min_var" type="xsd:integer" minOccurs="0"/>

<xsd:element name="max_var" type="xsd:integer" minOccurs="0"/>

<xsd:element ref="interval_definition"/>

</xsd:sequence>

<xsd:attribute name="status" use="required">

<xsd:simpleType>

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="C"/>

<xsd:enumeration value="O"/>

<xsd:enumeration value="E"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:attribute>

<xsd:attribute name="primaryEquipFlag" type="xsd:boolean" use="optional"/>

</xsd:complexType>
</xsd:element>

attribute edart/transticreview/equipment/@status
type restriction of xsd:NMTOKEN
properties
use required
facets
Kind Value Annotation
enumeration C
enumeration O
enumeration E
source <xsd:attribute name="status" use="required">

<xsd:simpleType>

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="C"/>

<xsd:enumeration value="O"/>

<xsd:enumeration value="E"/>

</xsd:restriction>

</xsd:simpleType>
</xsd:attribute>

attribute edart/transticreview/equipment/@primaryEquipFlag
type xsd:boolean
properties
use optional
source <xsd:attribute name="primaryEquipFlag" type="xsd:boolean" use="optional"/>

element edart/transticreview/equipment/ta_id
diagram transticreview_p39.png
type xsd:string
properties
content simple
source <xsd:element name="ta_id" type="xsd:string"/>

element edart/transticreview/equipment/warning
diagram transticreview_p40.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="warning" type="xsd:string" minOccurs="0"/>

element edart/transticreview/equipment/min_var
diagram transticreview_p41.png
type xsd:integer
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="min_var" type="xsd:integer" minOccurs="0"/>

element edart/transticreview/equipment/max_var
diagram transticreview_p42.png
type xsd:integer
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="max_var" type="xsd:integer" minOccurs="0"/>

element edart/transticreview/active_dates
diagram transticreview_p43.png
properties
minOcc 0
maxOcc unbounded
content complex
children interval_definition
source <xsd:element name="active_dates" minOccurs="0" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="interval_definition"/>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticreview/switch
diagram transticreview_p44.png
properties
content complex
children interval_definition
source <xsd:element name="switch">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_definition">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="date">

<xsd:simpleType>

<xsd:restriction base="xsd:date"/>

</xsd:simpleType>

</xsd:element>

<xsd:element name="time">

<xsd:simpleType>

<xsd:restriction base="xsd:time"/>

</xsd:simpleType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticreview/switch/interval_definition
diagram transticreview_p45.png
properties
content complex
children interval_start
used by
elements edart/transticreview/active_dates edart/transticreview/datelogs/datelog edart/transticreview/equipment edart/transticreview
source <xsd:element name="interval_definition">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="date">

<xsd:simpleType>

<xsd:restriction base="xsd:date"/>

</xsd:simpleType>

</xsd:element>

<xsd:element name="time">

<xsd:simpleType>

<xsd:restriction base="xsd:time"/>

</xsd:simpleType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticreview/switch/interval_definition/interval_start
diagram transticreview_p46.png
properties
content complex
children date time
source <xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="date">

<xsd:simpleType>

<xsd:restriction base="xsd:date"/>

</xsd:simpleType>

</xsd:element>

<xsd:element name="time">

<xsd:simpleType>

<xsd:restriction base="xsd:time"/>

</xsd:simpleType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticreview/switch/interval_definition/interval_start/date
diagram transticreview_p47.png
type restriction of xsd:date
properties
content simple
used by
elements edart/transticreview/genoff_conflict/scenario/potential_gaps/interval_end edart/transticreview/company_actuals/interval_definition/interval_end interval_definition/interval_end edart/transticreview/genoff_conflict/scenario/potential_gaps/interval_start edart/transticreview/company_actuals/interval_definition/interval_start interval_definition/interval_start
source <xsd:element name="date">

<xsd:simpleType>

<xsd:restriction base="xsd:date"/>

</xsd:simpleType>
</xsd:element>

element edart/transticreview/switch/interval_definition/interval_start/time
diagram transticreview_p48.png
type restriction of xsd:time
properties
content simple
used by
elements edart/transticreview/genoff_conflict/scenario/potential_gaps/interval_end edart/transticreview/company_actuals/interval_definition/interval_end interval_definition/interval_end edart/transticreview/genoff_conflict/scenario/potential_gaps/interval_start edart/transticreview/company_actuals/interval_definition/interval_start interval_definition/interval_start
source <xsd:element name="time">

<xsd:simpleType>

<xsd:restriction base="xsd:time"/>

</xsd:simpleType>
</xsd:element>

element edart/transticreview/congestionExpected
diagram transticreview_p49.png
type xsd:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="congestionExpected" type="xsd:boolean" minOccurs="0"/>

element edart/transticreview/submittedOnTime
diagram transticreview_p50.png
type xsd:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="submittedOnTime" type="xsd:boolean" minOccurs="0"/>

element edart/transticreview/submitOnTimeComments
diagram transticreview_p51.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="submitOnTimeComments" type="xsd:string" minOccurs="0"/>

element edart/transticreview/vegetationFlag
diagram transticreview_p52.png
type xsd:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="vegetationFlag" type="xsd:boolean" minOccurs="0"/>

element edart/transticreview/cause
diagram transticreview_p53.png
type xsd:int
properties
minOcc 1
maxOcc unbounded
content simple
source <xsd:element name="cause" type="xsd:int" maxOccurs="unbounded"/>

element edart/transticreview/totalSystemImpacts
diagram transticreview_p54.png
type xsd:integer
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="totalSystemImpacts" type="xsd:integer" minOccurs="0"/>

element edart/transticreview/mitigatedSystemImpacts
diagram transticreview_p55.png
type xsd:integer
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="mitigatedSystemImpacts" type="xsd:integer" minOccurs="0"/>

element edart/transticreview/systemImpacts
diagram transticreview_p56.png
properties
minOcc 0
maxOcc 1
content complex
children impact
source <xsd:element name="systemImpacts" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="impact" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="impactTitle" type="xsd:string"/>

<xsd:element name="impactDescription" type="xsd:string"/>

<xsd:element name="mitigationStatus" type="xsd:string" minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticreview/systemImpacts/impact
diagram transticreview_p57.png
properties
minOcc 1
maxOcc unbounded
content complex
children impactTitle impactDescription mitigationStatus
source <xsd:element name="impact" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="impactTitle" type="xsd:string"/>

<xsd:element name="impactDescription" type="xsd:string"/>

<xsd:element name="mitigationStatus" type="xsd:string" minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticreview/systemImpacts/impact/impactTitle
diagram transticreview_p58.png
type xsd:string
properties
content simple
source <xsd:element name="impactTitle" type="xsd:string"/>

element edart/transticreview/systemImpacts/impact/impactDescription
diagram transticreview_p59.png
type xsd:string
properties
content simple
source <xsd:element name="impactDescription" type="xsd:string"/>

element edart/transticreview/systemImpacts/impact/mitigationStatus
diagram transticreview_p60.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="mitigationStatus" type="xsd:string" minOccurs="0"/>

element edart/transticreview/cutInFlag
diagram transticreview_p61.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="cutInFlag" type="xsd:string" minOccurs="0"/>

element edart/transticreview/marketSensitiveFlag
diagram transticreview_p62.png
type xsd:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="marketSensitiveFlag" type="xsd:boolean" minOccurs="0"/>

element edart/transticreview/at_risk
diagram transticreview_p63.png
type xsd:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="at_risk" type="xsd:boolean" minOccurs="0"/>

element edart/transticreview/nerctads
diagram transticreview_p64.png
properties
minOcc 0
maxOcc 1
content complex
children planned operational autoReclose
source <xsd:element name="nerctads" minOccurs="0">

<xsd:complexType>

<xsd:choice>

<xsd:element name="planned">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="Maintenance and Construction"/>

<xsd:enumeration value="Other Planned Outage"/>

<xsd:enumeration value="Third Party Request"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="operational">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="Emergency"/>

<xsd:enumeration value="Other Operational Outage"/>

<xsd:enumeration value="System Operating Limit Mitigation, ex Voltage"/>

<xsd:enumeration value="System Voltage Limit Mitigation"/>

<xsd:enumeration value="N/A"/>

<xsd:enumeration value="Human Error"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="autoReclose">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="faultType">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="5"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="outageInitCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="5"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="initCauseCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="17"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="sustainedCauseCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="18"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="outageModeCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="5"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:choice>

</xsd:complexType>
</xsd:element>

element edart/transticreview/nerctads/planned
diagram transticreview_p65.png
type restriction of xsd:string
properties
content simple
facets
Kind Value Annotation
enumeration Maintenance and Construction
enumeration Other Planned Outage
enumeration Third Party Request
source <xsd:element name="planned">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="Maintenance and Construction"/>

<xsd:enumeration value="Other Planned Outage"/>

<xsd:enumeration value="Third Party Request"/>

</xsd:restriction>

</xsd:simpleType>
</xsd:element>

element edart/transticreview/nerctads/operational
diagram transticreview_p66.png
type restriction of xsd:string
properties
content simple
facets
Kind Value Annotation
enumeration Emergency
enumeration Other Operational Outage
enumeration System Operating Limit Mitigation, ex Voltage
enumeration System Voltage Limit Mitigation
enumeration N/A
enumeration Human Error
source <xsd:element name="operational">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="Emergency"/>

<xsd:enumeration value="Other Operational Outage"/>

<xsd:enumeration value="System Operating Limit Mitigation, ex Voltage"/>

<xsd:enumeration value="System Voltage Limit Mitigation"/>

<xsd:enumeration value="N/A"/>

<xsd:enumeration value="Human Error"/>

</xsd:restriction>

</xsd:simpleType>
</xsd:element>

element edart/transticreview/nerctads/autoReclose
diagram transticreview_p67.png
properties
content complex
children faultType outageInitCode initCauseCode sustainedCauseCode outageModeCode
source <xsd:element name="autoReclose">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="faultType">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="5"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="outageInitCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="5"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="initCauseCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="17"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="sustainedCauseCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="18"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="outageModeCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="5"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticreview/nerctads/autoReclose/faultType
diagram transticreview_p68.png
type restriction of xsd:integer
properties
content simple
facets
Kind Value Annotation
minInclusive 0
maxInclusive 5
source <xsd:element name="faultType">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="5"/>

</xsd:restriction>

</xsd:simpleType>
</xsd:element>

element edart/transticreview/nerctads/autoReclose/outageInitCode
diagram transticreview_p69.png
type restriction of xsd:integer
properties
content simple
facets
Kind Value Annotation
minInclusive 0
maxInclusive 5
source <xsd:element name="outageInitCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="5"/>

</xsd:restriction>

</xsd:simpleType>
</xsd:element>

element edart/transticreview/nerctads/autoReclose/initCauseCode
diagram transticreview_p70.png
type restriction of xsd:integer
properties
content simple
facets
Kind Value Annotation
minInclusive 0
maxInclusive 17
source <xsd:element name="initCauseCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="17"/>

</xsd:restriction>

</xsd:simpleType>
</xsd:element>

element edart/transticreview/nerctads/autoReclose/sustainedCauseCode
diagram transticreview_p71.png
type restriction of xsd:integer
properties
content simple
facets
Kind Value Annotation
minInclusive 0
maxInclusive 18
source <xsd:element name="sustainedCauseCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="18"/>

</xsd:restriction>

</xsd:simpleType>
</xsd:element>

element edart/transticreview/nerctads/autoReclose/outageModeCode
diagram transticreview_p72.png
type restriction of xsd:integer
properties
content simple
facets
Kind Value Annotation
minInclusive 0
maxInclusive 5
source <xsd:element name="outageModeCode">

<xsd:simpleType>

<xsd:restriction base="xsd:integer">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="5"/>

</xsd:restriction>

</xsd:simpleType>
</xsd:element>

element edart/transticreview/datelogs
diagram transticreview_p73.png
properties
minOcc 0
maxOcc 1
content complex
children datelog
source <xsd:element name="datelogs" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="datelog" minOccurs="0" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="interval_definition"/>

<xsd:element name="timestamp" type="xsd:string"/>

<xsd:element name="currentFlag" type="xsd:integer"/>

<xsd:element name="user" type="xsd:string"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticreview/datelogs/datelog
diagram transticreview_p74.png
properties
minOcc 0
maxOcc unbounded
content complex
children interval_definition timestamp currentFlag user
source <xsd:element name="datelog" minOccurs="0" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="interval_definition"/>

<xsd:element name="timestamp" type="xsd:string"/>

<xsd:element name="currentFlag" type="xsd:integer"/>

<xsd:element name="user" type="xsd:string"/>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticreview/datelogs/datelog/timestamp
diagram transticreview_p75.png
type xsd:string
properties
content simple
source <xsd:element name="timestamp" type="xsd:string"/>

element edart/transticreview/datelogs/datelog/currentFlag
diagram transticreview_p76.png
type xsd:integer
properties
content simple
source <xsd:element name="currentFlag" type="xsd:integer"/>

element edart/transticreview/datelogs/datelog/user
diagram transticreview_p77.png
type xsd:string
properties
content simple
source <xsd:element name="user" type="xsd:string"/>

element edart/transticreview/rtepQueueNumber
diagram transticreview_p78.png
type restriction of xsd:string
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
maxLength 50
source <xsd:element name="rtepQueueNumber" minOccurs="0">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:maxLength value="50"/>

</xsd:restriction>

</xsd:simpleType>
</xsd:element>

element edart/transticreview/totalConflicts
diagram transticreview_p79.png
type xsd:integer
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="totalConflicts" type="xsd:integer" minOccurs="0"/>

element edart/transticreview/mitigatedConflicts
diagram transticreview_p80.png
type xsd:integer
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="mitigatedConflicts" type="xsd:integer" minOccurs="0"/>

element edart/transticreview/conflict
diagram transticreview_p81.png
properties
minOcc 0
maxOcc 1
content complex
children ticket
source <xsd:element name="conflict" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="ticket" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="pjm_ticket_id" type="xsd:integer"/>

<xsd:element name="company_ticket_id" type="xsd:string" minOccurs="0"/>

<xsd:element name="ticket_type">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="transmission"/>

<xsd:enumeration value="generation"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="scenario_id" type="xsd:integer"/>

<xsd:element name="title" type="xsd:string"/>

<xsd:element name="status" type="xsd:string"/>

<xsd:element name="mitigationStatus" type="xsd:string" minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticreview/conflict/ticket
diagram transticreview_p82.png
properties
minOcc 1
maxOcc unbounded
content complex
children pjm_ticket_id company_ticket_id ticket_type scenario_id title status mitigationStatus
source <xsd:element name="ticket" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="pjm_ticket_id" type="xsd:integer"/>

<xsd:element name="company_ticket_id" type="xsd:string" minOccurs="0"/>

<xsd:element name="ticket_type">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="transmission"/>

<xsd:enumeration value="generation"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:element>

<xsd:element name="scenario_id" type="xsd:integer"/>

<xsd:element name="title" type="xsd:string"/>

<xsd:element name="status" type="xsd:string"/>

<xsd:element name="mitigationStatus" type="xsd:string" minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticreview/conflict/ticket/pjm_ticket_id
diagram transticreview_p83.png
type xsd:integer
properties
content simple
source <xsd:element name="pjm_ticket_id" type="xsd:integer"/>

element edart/transticreview/conflict/ticket/company_ticket_id
diagram transticreview_p84.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="company_ticket_id" type="xsd:string" minOccurs="0"/>

element edart/transticreview/conflict/ticket/ticket_type
diagram transticreview_p85.png
type restriction of xsd:string
properties
content simple
facets
Kind Value Annotation
enumeration transmission
enumeration generation
source <xsd:element name="ticket_type">

<xsd:simpleType>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="transmission"/>

<xsd:enumeration value="generation"/>

</xsd:restriction>

</xsd:simpleType>
</xsd:element>

element edart/transticreview/conflict/ticket/scenario_id
diagram transticreview_p86.png
type xsd:integer
properties
content simple
source <xsd:element name="scenario_id" type="xsd:integer"/>

element edart/transticreview/conflict/ticket/title
diagram transticreview_p87.png
type xsd:string
properties
content simple
source <xsd:element name="title" type="xsd:string"/>

element edart/transticreview/conflict/ticket/status
diagram transticreview_p88.png
type xsd:string
properties
content simple
source <xsd:element name="status" type="xsd:string"/>

element edart/transticreview/conflict/ticket/mitigationStatus
diagram transticreview_p89.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="mitigationStatus" type="xsd:string" minOccurs="0"/>

element edart/transticreview/genoff_conflict
diagram transticreview_p90.png
properties
minOcc 0
maxOcc 1
content complex
children scenario
source <xsd:element name="genoff_conflict" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="scenario" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="scenario_id" type="xsd:integer"/>

<xsd:element name="scenario_title" type="xsd:string"/>

<xsd:element name="mitigationStatus" type="xsd:string" minOccurs="0"/>

<xsd:element name="tickets" minOccurs="0" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="pjm_ticket_id" type="xsd:integer"/>

<xsd:element name="company_ticket_id" type="xsd:string" minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="potential_gaps" minOccurs="0" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="interval_end">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="actual_out" type="xsd:int"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticreview/genoff_conflict/scenario
diagram transticreview_p91.png
properties
minOcc 1
maxOcc unbounded
content complex
children scenario_id scenario_title mitigationStatus tickets potential_gaps
source <xsd:element name="scenario" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="scenario_id" type="xsd:integer"/>

<xsd:element name="scenario_title" type="xsd:string"/>

<xsd:element name="mitigationStatus" type="xsd:string" minOccurs="0"/>

<xsd:element name="tickets" minOccurs="0" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="pjm_ticket_id" type="xsd:integer"/>

<xsd:element name="company_ticket_id" type="xsd:string" minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="potential_gaps" minOccurs="0" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="interval_end">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="actual_out" type="xsd:int"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticreview/genoff_conflict/scenario/scenario_id
diagram transticreview_p92.png
type xsd:integer
properties
content simple
source <xsd:element name="scenario_id" type="xsd:integer"/>

element edart/transticreview/genoff_conflict/scenario/scenario_title
diagram transticreview_p93.png
type xsd:string
properties
content simple
source <xsd:element name="scenario_title" type="xsd:string"/>

element edart/transticreview/genoff_conflict/scenario/mitigationStatus
diagram transticreview_p94.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="mitigationStatus" type="xsd:string" minOccurs="0"/>

element edart/transticreview/genoff_conflict/scenario/tickets
diagram transticreview_p95.png
properties
minOcc 0
maxOcc unbounded
content complex
children pjm_ticket_id company_ticket_id
source <xsd:element name="tickets" minOccurs="0" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="pjm_ticket_id" type="xsd:integer"/>

<xsd:element name="company_ticket_id" type="xsd:string" minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticreview/genoff_conflict/scenario/tickets/pjm_ticket_id
diagram transticreview_p96.png
type xsd:integer
properties
content simple
source <xsd:element name="pjm_ticket_id" type="xsd:integer"/>

element edart/transticreview/genoff_conflict/scenario/tickets/company_ticket_id
diagram transticreview_p97.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="company_ticket_id" type="xsd:string" minOccurs="0"/>

element edart/transticreview/genoff_conflict/scenario/potential_gaps
diagram transticreview_p98.png
properties
minOcc 0
maxOcc unbounded
content complex
children interval_start interval_end actual_out
source <xsd:element name="potential_gaps" minOccurs="0" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="interval_end">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="actual_out" type="xsd:int"/>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticreview/genoff_conflict/scenario/potential_gaps/interval_start
diagram transticreview_p99.png
properties
content complex
children date time
source <xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticreview/genoff_conflict/scenario/potential_gaps/interval_end
diagram transticreview_p100.png
properties
content complex
children date time
source <xsd:element name="interval_end">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticreview/genoff_conflict/scenario/potential_gaps/actual_out
diagram transticreview_p101.png
type xsd:int
properties
content simple
source <xsd:element name="actual_out" type="xsd:int"/>

element edart/transticreview/company_actuals
diagram transticreview_p102.png
properties
minOcc 0
maxOcc 1
content complex
children interval_definition
source <xsd:element name="company_actuals" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_definition" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="interval_end" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticreview/company_actuals/interval_definition
diagram transticreview_p103.png
properties
minOcc 1
maxOcc unbounded
content complex
children interval_start interval_end
used by
elements edart/transticreview/active_dates edart/transticreview/datelogs/datelog edart/transticreview/equipment edart/transticreview
source <xsd:element name="interval_definition" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="interval_end" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticreview/company_actuals/interval_definition/interval_start
diagram transticreview_p104.png
properties
content complex
children date time
source <xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticreview/company_actuals/interval_definition/interval_end
diagram transticreview_p105.png
properties
minOcc 0
maxOcc 1
content complex
children date time
source <xsd:element name="interval_end" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticreview/fileAttachmentCount
diagram transticreview_p106.png
type xsd:unsignedInt
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="fileAttachmentCount" type="xsd:unsignedInt" minOccurs="0"/>

element edart/transticreview/fileList
diagram transticreview_p107.png
properties
minOcc 0
maxOcc 1
content complex
children file
source <xsd:element name="fileList" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="file" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="fileName" type="xsd:string"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticreview/fileList/file
diagram transticreview_p108.png
properties
minOcc 1
maxOcc unbounded
content complex
children fileName
source <xsd:element name="file" maxOccurs="unbounded">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="fileName" type="xsd:string"/>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticreview/fileList/file/fileName
diagram transticreview_p109.png
type xsd:string
properties
content simple
source <xsd:element name="fileName" type="xsd:string"/>

element edart/transticreview/fileAttachments
diagram transticreview_p110.png
properties
minOcc 0
maxOcc 1
content complex
children attachment
source <xsd:element name="fileAttachments" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="attachment" type="xsd:string" maxOccurs="unbounded"/>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element edart/transticreview/fileAttachments/attachment
diagram transticreview_p111.png
type xsd:string
properties
minOcc 1
maxOcc unbounded
content simple
source <xsd:element name="attachment" type="xsd:string" maxOccurs="unbounded"/>

element edart/transticreview/modeling_requests
diagram transticreview_p112.png
type modeling_requests
properties
content complex
children modeling_request
source <xsd:element name="modeling_requests" type="modeling_requests"/>

element edart/transticreview/equipment_default
diagram transticreview_p113.png
type equipment_default
properties
content complex
children equipment
source <xsd:element name="equipment_default" type="equipment_default"/>

element edart/transticreview/restplan
diagram transticreview_p114.png
type restplan
properties
minOcc 0
maxOcc 1
content complex
children restplanreview
source <xsd:element name="restplan" type="restplan" minOccurs="0"/>

element interval_definition
diagram transticreview_p115.png
properties
content complex
children interval_start interval_end
used by
elements edart/transticreview/active_dates edart/transticreview/datelogs/datelog edart/transticreview/equipment edart/transticreview
source <xsd:element name="interval_definition">

<xsd:complexType>

<xsd:sequence>

<xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

<xsd:element name="interval_end" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element interval_definition/interval_start
diagram transticreview_p116.png
properties
content complex
children date time
source <xsd:element name="interval_start">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element interval_definition/interval_end
diagram transticreview_p117.png
properties
minOcc 0
maxOcc 1
content complex
children date time
source <xsd:element name="interval_end" minOccurs="0">

<xsd:complexType>

<xsd:sequence>

<xsd:element ref="date"/>

<xsd:element ref="time"/>

</xsd:sequence>

</xsd:complexType>
</xsd:element>

element time
diagram transticreview_p118.png
type xsd:time
properties
content simple
used by
elements edart/transticreview/genoff_conflict/scenario/potential_gaps/interval_end edart/transticreview/company_actuals/interval_definition/interval_end interval_definition/interval_end edart/transticreview/genoff_conflict/scenario/potential_gaps/interval_start edart/transticreview/company_actuals/interval_definition/interval_start interval_definition/interval_start
source <xsd:element name="time" type="xsd:time"/>

complexType equipment_default
diagram transticreview_p119.png
children equipment
used by
element edart/transticreview/equipment_default
source <xsd:complexType name="equipment_default">

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element name="equipment">

<xsd:complexType>

<xsd:all>

<xsd:element name="default_status" type="xsd:string"/>

</xsd:all>

<xsd:attribute name="ta_id" type="xsd:long" use="required"/>

</xsd:complexType>

</xsd:element>

</xsd:choice>
</xsd:complexType>

element equipment_default/equipment
diagram transticreview_p120.png
properties
content complex
children default_status
attributes
Name  Type  Use  Default  Fixed  Annotation
ta_id  xsd:long  required
source <xsd:element name="equipment">

<xsd:complexType>

<xsd:all>

<xsd:element name="default_status" type="xsd:string"/>

</xsd:all>

<xsd:attribute name="ta_id" type="xsd:long" use="required"/>

</xsd:complexType>
</xsd:element>

attribute equipment_default/equipment/@ta_id
type xsd:long
properties
use required
source <xsd:attribute name="ta_id" type="xsd:long" use="required"/>

element equipment_default/equipment/default_status
diagram transticreview_p121.png
type xsd:string
properties
content simple
source <xsd:element name="default_status" type="xsd:string"/>

complexType FileList
diagram transticreview_p122.png
children fileName
used by
element ModelingRequest/fileList
source <xsd:complexType name="FileList">

<xsd:sequence>

<xsd:element name="fileName" type="xsd:string" minOccurs="0" maxOccurs="unbounded"/>

</xsd:sequence>
</xsd:complexType>

element FileList/fileName
diagram transticreview_p123.png
type xsd:string
properties
minOcc 0
maxOcc unbounded
content simple
source <xsd:element name="fileName" type="xsd:string" minOccurs="0" maxOccurs="unbounded"/>

complexType modeling_requests
diagram transticreview_p124.png
children modeling_request
used by
element edart/transticreview/modeling_requests
source <xsd:complexType name="modeling_requests">

<xsd:sequence>

<xsd:element name="modeling_request" type="ModelingRequest" minOccurs="0" maxOccurs="unbounded"/>

</xsd:sequence>
</xsd:complexType>

element modeling_requests/modeling_request
diagram transticreview_p125.png
type ModelingRequest
properties
minOcc 0
maxOcc unbounded
content complex
children title rtep_queue_number company_name status build fileList
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:long  required
source <xsd:element name="modeling_request" type="ModelingRequest" minOccurs="0" maxOccurs="unbounded"/>

complexType ModelingRequest
diagram transticreview_p126.png
children title rtep_queue_number company_name status build fileList
used by
element modeling_requests/modeling_request
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:long  required
source <xsd:complexType name="ModelingRequest">

<xsd:sequence>

<xsd:element name="title" type="xsd:string"/>

<xsd:element name="rtep_queue_number" type="xsd:string"/>

<xsd:element name="company_name" type="xsd:string"/>

<xsd:element name="status" type="xsd:string"/>

<xsd:element name="build" type="xsd:string"/>

<xsd:element name="fileList" type="FileList"/>

</xsd:sequence>

<xsd:attribute name="id" type="xsd:long" use="required"/>
</xsd:complexType>

attribute ModelingRequest/@id
type xsd:long
properties
use required
source <xsd:attribute name="id" type="xsd:long" use="required"/>

element ModelingRequest/title
diagram transticreview_p127.png
type xsd:string
properties
content simple
source <xsd:element name="title" type="xsd:string"/>

element ModelingRequest/rtep_queue_number
diagram transticreview_p128.png
type xsd:string
properties
content simple
source <xsd:element name="rtep_queue_number" type="xsd:string"/>

element ModelingRequest/company_name
diagram transticreview_p129.png
type xsd:string
properties
content simple
source <xsd:element name="company_name" type="xsd:string"/>

element ModelingRequest/status
diagram transticreview_p130.png
type xsd:string
properties
content simple
source <xsd:element name="status" type="xsd:string"/>

element ModelingRequest/build
diagram transticreview_p131.png
type xsd:string
properties
content simple
source <xsd:element name="build" type="xsd:string"/>

element ModelingRequest/fileList
diagram transticreview_p132.png
type FileList
properties
content complex
children fileName
source <xsd:element name="fileList" type="FileList"/>

complexType restplan
diagram transticreview_p133.png
children restplanreview
used by
element edart/transticreview/restplan
source <xsd:complexType name="restplan">

<xsd:sequence>

<xsd:element name="restplanreview" type="xsd:string"/>

</xsd:sequence>
</xsd:complexType>

element restplan/restplanreview
diagram transticreview_p134.png
type xsd:string
properties
content simple
source <xsd:element name="restplanreview" type="xsd:string"/>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
