Schema transticrevise.xsd


schema location:
attributeFormDefault:
elementFormDefault:  qualified

Elements  Complex types
cutInTask  equipment_default
date
edart
interval_definition
time


element cutInTask
diagram transticrevise_p1.png
properties
content complex
children name status
used by
element edart/transticrevise/cutInInfo
source <xsd:element name="cutInTask">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element name="name" type="xsd:string"/>
      <xsd:element name="status" type="xsd:string"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

element cutInTask/name
diagram transticrevise_p2.png
type xsd:string
properties
content simple
source <xsd:element name="name" type="xsd:string"/>

element cutInTask/status
diagram transticrevise_p3.png
type xsd:string
properties
content simple
source <xsd:element name="status" type="xsd:string"/>

element date
diagram transticrevise_p4.png
type xsd:string
properties
content simple
used by
elements interval_definition/interval_end edart/transticrevise/switch/interval_definition/interval_start interval_definition/interval_start
source <xsd:element name="date" type="xsd:string"/>

element edart
diagram transticrevise_p5.png
properties
content complex
children error transticrevise
source <xsd:element name="edart">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element name="error" type="xsd:string" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element name="transticrevise" maxOccurs="unbounded">
        <xsd:complexType>
          <xsd:sequence>
            <xsd:element name="error" type="xsd:string" minOccurs="0" maxOccurs="unbounded"/>
            <xsd:element name="company" type="xsd:short" minOccurs="0"/>
            <xsd:element name="pjm_ticket_id" type="xsd:positiveInteger" minOccurs="0"/>
            <xsd:element name="company_ticket_id" nillable="false" minOccurs="0">
              <xsd:simpleType>
                <xsd:restriction base="xsd:string">
                  <xsd:minLength value="0"/>
                  <xsd:maxLength value="50"/>
                </xsd:restriction>
              </xsd:simpleType>
            </xsd:element>
            <xsd:element name="projectName" type="xsd:string" minOccurs="0" maxOccurs="1"/>
            <xsd:element name="ticket_status" minOccurs="0">
              <xsd:simpleType>
                <xsd:restriction base="xsd:string">
                  <xsd:enumeration value="cancel"/>
                  <xsd:enumeration value="restore"/>
                </xsd:restriction>
              </xsd:simpleType>
            </xsd:element>
            <xsd:element name="description" minOccurs="0">
              <xsd:simpleType>
                <xsd:restriction base="xsd:string">
                  <xsd:minLength value="1"/>
                  <xsd:whiteSpace value="collapse"/>
                </xsd:restriction>
              </xsd:simpleType>
            </xsd:element>
            <xsd:element name="project_ids" type="xsd:string" minOccurs="0" maxOccurs="1"/>
            <xsd:element name="availability" type="xsd:string" minOccurs="0"/>
            <xsd:element ref="interval_definition" minOccurs="0"/>
            <xsd:element name="outage_type" minOccurs="0">
              <xsd:simpleType>
                <xsd:restriction base="xsd:string">
                  <xsd:enumeration value="DailyIncludingWeekends"/>
                  <xsd:enumeration value="DailyNoWeekends"/>
                  <xsd:enumeration value="DailyWeekendsOnly"/>
                  <xsd:enumeration value="ContinuousNoWeekends"/>
                  <xsd:enumeration value="Continuous"/>
                  <xsd:enumeration value="EMS Tripped"/>
                </xsd:restriction>
              </xsd:simpleType>
            </xsd:element>
            <xsd:element name="ticket_type" minOccurs="0">
              <xsd:complexType>
                <xsd:attribute name="info" type="xsd:boolean" use="optional"/>
                <xsd:attribute name="emergency" type="xsd:boolean" use="optional"/>
                <xsd:attribute name="auto_reclose" type="xsd:boolean" use="optional"/>
                <xsd:attribute name="directBilling" type="xsd:boolean" use="optional"/>
                <xsd:attribute name="directBillingDecline" type="xsd:boolean" use="optional"/>
              </xsd:complexType>
            </xsd:element>
            <xsd:element name="equipment" minOccurs="0" maxOccurs="unbounded">
              <xsd:complexType>
                <xsd:sequence>
                  <xsd:element name="ta_id">
                    <xsd:simpleType>
                      <xsd:restriction base="xsd:int"/>
                    </xsd:simpleType>
                  </xsd:element>
                  <xsd:element name="min_mvar" type="xsd:integer" minOccurs="0"/>
                  <xsd:element name="max_mvar" type="xsd:integer" minOccurs="0"/>
                  <xsd:element ref="interval_definition"/>
                </xsd:sequence>
                <xsd:attribute name="status" use="required">
                  <xsd:simpleType>
                    <xsd:restriction base="xsd:NMTOKEN">
                      <xsd:enumeration value="O"/>
                      <xsd:enumeration value="C"/>
                      <xsd:enumeration value="E"/>
                      <xsd:enumeration value="T"/>
                      <xsd:enumeration value="R"/>
                      <xsd:enumeration value="TR"/>
                      <xsd:enumeration value="RE"/>
                    </xsd:restriction>
                  </xsd:simpleType>
                </xsd:attribute>
                <xsd:attribute name="primaryEquipFlag" type="xsd:boolean" use="optional"/>
              </xsd:complexType>
            </xsd:element>
            <xsd:element name="switch" minOccurs="0">
              <xsd:complexType>
                <xsd:sequence>
                  <xsd:element name="interval_definition">
                    <xsd:complexType>
                      <xsd:sequence>
                        <xsd:element name="interval_start">
                          <xsd:complexType>
                            <xsd:sequence>
                              <xsd:element ref="date"/>
                              <xsd:element ref="time"/>
                            </xsd:sequence>
                          </xsd:complexType>
                        </xsd:element>
                      </xsd:sequence>
                    </xsd:complexType>
                  </xsd:element>
                </xsd:sequence>
              </xsd:complexType>
            </xsd:element>
            <xsd:element name="vegetationFlag" type="xsd:boolean" minOccurs="0"/>
            <xsd:element name="cause" minOccurs="0" maxOccurs="unbounded">
              <xsd:complexType>
                <xsd:simpleContent>
                  <xsd:extension base="xsd:integer">
                    <xsd:attribute name="remove"/>
                  </xsd:extension>
                </xsd:simpleContent>
              </xsd:complexType>
            </xsd:element>
            <xsd:element name="cutInFlag" type="xsd:boolean" minOccurs="0"/>
            <xsd:element name="cutInInfo" minOccurs="0">
              <xsd:complexType>
                <xsd:sequence>
                  <xsd:element name="cutInTitle" type="xsd:string" minOccurs="0"/>
                  <xsd:element name="cutInStatus" type="xsd:string" minOccurs="0"/>
                  <xsd:element ref="cutInTask" minOccurs="0" maxOccurs="unbounded"/>
                </xsd:sequence>
              </xsd:complexType>
            </xsd:element>
            <xsd:element name="nerctads" minOccurs="0">
              <xsd:complexType>
                <xsd:choice>
                  <xsd:element name="planned">
                    <xsd:simpleType>
                      <xsd:restriction base="xsd:string">
                        <xsd:enumeration value="Maintenance and Construction"/>
                        <xsd:enumeration value="Other Planned Outage"/>
                        <xsd:enumeration value="Third Party Request"/>
                      </xsd:restriction>
                    </xsd:simpleType>
                  </xsd:element>
                  <xsd:element name="operational">
                    <xsd:simpleType>
                      <xsd:restriction base="xsd:string">
                        <xsd:enumeration value="Emergency"/>
                        <xsd:enumeration value="Other Operational Outage"/>
                        <xsd:enumeration value="System Operating Limit Mitigation, ex Voltage"/>
                        <xsd:enumeration value="System Voltage Limit Mitigation"/>
                        <xsd:enumeration value="N/A"/>
                        <xsd:enumeration value="Human Error"/>
                      </xsd:restriction>
                    </xsd:simpleType>
                  </xsd:element>
                  <xsd:element name="autoReclose">
                    <xsd:complexType>
                      <xsd:sequence>
                        <xsd:element name="faultType">
                          <xsd:simpleType>
                            <xsd:restriction base="xsd:integer">
                              <xsd:minInclusive value="0"/>
                              <xsd:maxInclusive value="5"/>
                            </xsd:restriction>
                          </xsd:simpleType>
                        </xsd:element>
                        <xsd:element name="outageInitCode">
                          <xsd:simpleType>
                            <xsd:restriction base="xsd:integer">
                              <xsd:minInclusive value="0"/>
                              <xsd:maxInclusive value="5"/>
                            </xsd:restriction>
                          </xsd:simpleType>
                        </xsd:element>
                        <xsd:element name="initCauseCode">
                          <xsd:simpleType>
                            <xsd:restriction base="xsd:integer">
                              <xsd:minInclusive value="0"/>
                              <xsd:maxInclusive value="17"/>
                            </xsd:restriction>
                          </xsd:simpleType>
                        </xsd:element>
                        <xsd:element name="sustainedCauseCode">
                          <xsd:simpleType>
                            <xsd:restriction base="xsd:integer">
                              <xsd:minInclusive value="0"/>
                              <xsd:maxInclusive value="18"/>
                            </xsd:restriction>
                          </xsd:simpleType>
                        </xsd:element>
                        <xsd:element name="outageModeCode">
                          <xsd:simpleType>
                            <xsd:restriction base="xsd:integer">
                              <xsd:minInclusive value="0"/>
                              <xsd:maxInclusive value="5"/>
                            </xsd:restriction>
                          </xsd:simpleType>
                        </xsd:element>
                      </xsd:sequence>
                    </xsd:complexType>
                  </xsd:element>
                </xsd:choice>
              </xsd:complexType>
            </xsd:element>
            <xsd:element name="rtepQueueNumber" minOccurs="0">
              <xsd:simpleType>
                <xsd:restriction base="xsd:string">
                  <xsd:maxLength value="50"/>
                </xsd:restriction>
              </xsd:simpleType>
            </xsd:element>
            <xsd:element name="equipment_default" type="equipment_default" minOccurs="0"/>
          </xsd:sequence>
        </xsd:complexType>
      </xsd:element>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

element edart/error
diagram transticrevise_p6.png
type xsd:string
properties
minOcc 0
maxOcc unbounded
content simple
source <xsd:element name="error" type="xsd:string" minOccurs="0" maxOccurs="unbounded"/>

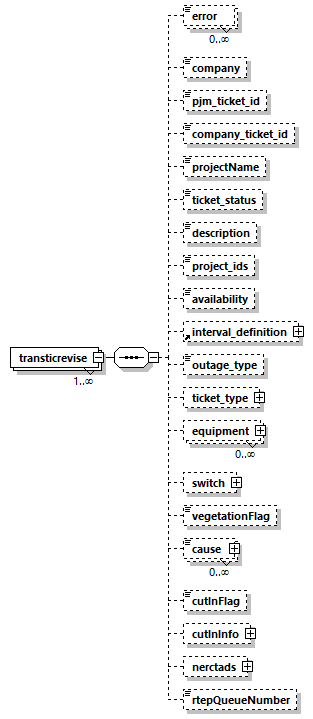

element edart/transticrevise
diagram transticrevise_p7.png
properties
minOcc 1
maxOcc unbounded
content complex
children error company pjm_ticket_id company_ticket_id projectName ticket_status description project_ids availability interval_definition outage_type ticket_type equipment switch vegetationFlag cause cutInFlag cutInInfo nerctads rtepQueueNumber equipment_default
source <xsd:element name="transticrevise" maxOccurs="unbounded">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element name="error" type="xsd:string" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element name="company" type="xsd:short" minOccurs="0"/>
      <xsd:element name="pjm_ticket_id" type="xsd:positiveInteger" minOccurs="0"/>
      <xsd:element name="company_ticket_id" nillable="false" minOccurs="0">
        <xsd:simpleType>
          <xsd:restriction base="xsd:string">
            <xsd:minLength value="0"/>
            <xsd:maxLength value="50"/>
          </xsd:restriction>
        </xsd:simpleType>
      </xsd:element>
      <xsd:element name="projectName" type="xsd:string" minOccurs="0" maxOccurs="1"/>
      <xsd:element name="ticket_status" minOccurs="0">
        <xsd:simpleType>
          <xsd:restriction base="xsd:string">
            <xsd:enumeration value="cancel"/>
            <xsd:enumeration value="restore"/>
          </xsd:restriction>
        </xsd:simpleType>
      </xsd:element>
      <xsd:element name="description" minOccurs="0">
        <xsd:simpleType>
          <xsd:restriction base="xsd:string">
            <xsd:minLength value="1"/>
            <xsd:whiteSpace value="collapse"/>
          </xsd:restriction>
        </xsd:simpleType>
      </xsd:element>
      <xsd:element name="project_ids" type="xsd:string" minOccurs="0" maxOccurs="1"/>
      <xsd:element name="availability" type="xsd:string" minOccurs="0"/>
      <xsd:element ref="interval_definition" minOccurs="0"/>
      <xsd:element name="outage_type" minOccurs="0">
        <xsd:simpleType>
          <xsd:restriction base="xsd:string">
            <xsd:enumeration value="DailyIncludingWeekends"/>
            <xsd:enumeration value="DailyNoWeekends"/>
            <xsd:enumeration value="DailyWeekendsOnly"/>
            <xsd:enumeration value="ContinuousNoWeekends"/>
            <xsd:enumeration value="Continuous"/>
            <xsd:enumeration value="EMS Tripped"/>
          </xsd:restriction>
        </xsd:simpleType>
      </xsd:element>
      <xsd:element name="ticket_type" minOccurs="0">
        <xsd:complexType>
          <xsd:attribute name="info" type="xsd:boolean" use="optional"/>
          <xsd:attribute name="emergency" type="xsd:boolean" use="optional"/>
          <xsd:attribute name="auto_reclose" type="xsd:boolean" use="optional"/>
          <xsd:attribute name="directBilling" type="xsd:boolean" use="optional"/>
          <xsd:attribute name="directBillingDecline" type="xsd:boolean" use="optional"/>
        </xsd:complexType>
      </xsd:element>
      <xsd:element name="equipment" minOccurs="0" maxOccurs="unbounded">
        <xsd:complexType>
          <xsd:sequence>
            <xsd:element name="ta_id">
              <xsd:simpleType>
                <xsd:restriction base="xsd:int"/>
              </xsd:simpleType>
            </xsd:element>
            <xsd:element name="min_mvar" type="xsd:integer" minOccurs="0"/>
            <xsd:element name="max_mvar" type="xsd:integer" minOccurs="0"/>
            <xsd:element ref="interval_definition"/>
          </xsd:sequence>
          <xsd:attribute name="status" use="required">
            <xsd:simpleType>
              <xsd:restriction base="xsd:NMTOKEN">
                <xsd:enumeration value="O"/>
                <xsd:enumeration value="C"/>
                <xsd:enumeration value="E"/>
                <xsd:enumeration value="T"/>
                <xsd:enumeration value="R"/>
                <xsd:enumeration value="TR"/>
                <xsd:enumeration value="RE"/>
              </xsd:restriction>
            </xsd:simpleType>
          </xsd:attribute>
          <xsd:attribute name="primaryEquipFlag" type="xsd:boolean" use="optional"/>
        </xsd:complexType>
      </xsd:element>
      <xsd:element name="switch" minOccurs="0">
        <xsd:complexType>
          <xsd:sequence>
            <xsd:element name="interval_definition">
              <xsd:complexType>
                <xsd:sequence>
                  <xsd:element name="interval_start">
                    <xsd:complexType>
                      <xsd:sequence>
                        <xsd:element ref="date"/>
                        <xsd:element ref="time"/>
                      </xsd:sequence>
                    </xsd:complexType>
                  </xsd:element>
                </xsd:sequence>
              </xsd:complexType>
            </xsd:element>
          </xsd:sequence>
        </xsd:complexType>
      </xsd:element>
      <xsd:element name="vegetationFlag" type="xsd:boolean" minOccurs="0"/>
      <xsd:element name="cause" minOccurs="0" maxOccurs="unbounded">
        <xsd:complexType>
          <xsd:simpleContent>
            <xsd:extension base="xsd:integer">
              <xsd:attribute name="remove"/>
            </xsd:extension>
          </xsd:simpleContent>
        </xsd:complexType>
      </xsd:element>
      <xsd:element name="cutInFlag" type="xsd:boolean" minOccurs="0"/>
      <xsd:element name="cutInInfo" minOccurs="0">
        <xsd:complexType>
          <xsd:sequence>
            <xsd:element name="cutInTitle" type="xsd:string" minOccurs="0"/>
            <xsd:element name="cutInStatus" type="xsd:string" minOccurs="0"/>
            <xsd:element ref="cutInTask" minOccurs="0" maxOccurs="unbounded"/>
          </xsd:sequence>
        </xsd:complexType>
      </xsd:element>
      <xsd:element name="nerctads" minOccurs="0">
        <xsd:complexType>
          <xsd:choice>
            <xsd:element name="planned">
              <xsd:simpleType>
                <xsd:restriction base="xsd:string">
                  <xsd:enumeration value="Maintenance and Construction"/>
                  <xsd:enumeration value="Other Planned Outage"/>
                  <xsd:enumeration value="Third Party Request"/>
                </xsd:restriction>
              </xsd:simpleType>
            </xsd:element>
            <xsd:element name="operational">
              <xsd:simpleType>
                <xsd:restriction base="xsd:string">
                  <xsd:enumeration value="Emergency"/>
                  <xsd:enumeration value="Other Operational Outage"/>
                  <xsd:enumeration value="System Operating Limit Mitigation, ex Voltage"/>
                  <xsd:enumeration value="System Voltage Limit Mitigation"/>
                  <xsd:enumeration value="N/A"/>
                  <xsd:enumeration value="Human Error"/>
                </xsd:restriction>
              </xsd:simpleType>
            </xsd:element>

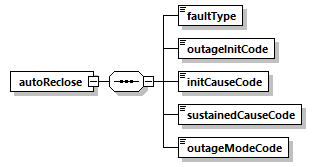

            <xsd:element name="autoReclose">
              <xsd:complexType>
                <xsd:sequence>
                  <xsd:element name="faultType">
                    <xsd:simpleType>
                      <xsd:restriction base="xsd:integer">
                        <xsd:minInclusive value="0"/>
                        <xsd:maxInclusive value="5"/>
                      </xsd:restriction>
                    </xsd:simpleType>
                  </xsd:element>
                  <xsd:element name="outageInitCode">
                    <xsd:simpleType>
                      <xsd:restriction base="xsd:integer">
                        <xsd:minInclusive value="0"/>
                        <xsd:maxInclusive value="5"/>
                      </xsd:restriction>
                    </xsd:simpleType>
                  </xsd:element>
                  <xsd:element name="initCauseCode">
                    <xsd:simpleType>
                      <xsd:restriction base="xsd:integer">
                        <xsd:minInclusive value="0"/>
                        <xsd:maxInclusive value="17"/>
                      </xsd:restriction>
                    </xsd:simpleType>
                  </xsd:element>
                  <xsd:element name="sustainedCauseCode">
                    <xsd:simpleType>
                      <xsd:restriction base="xsd:integer">
                        <xsd:minInclusive value="0"/>
                        <xsd:maxInclusive value="18"/>
                      </xsd:restriction>
                    </xsd:simpleType>
                  </xsd:element>
                  <xsd:element name="outageModeCode">
                    <xsd:simpleType>
                      <xsd:restriction base="xsd:integer">
                        <xsd:minInclusive value="0"/>
                        <xsd:maxInclusive value="5"/>
                      </xsd:restriction>
                    </xsd:simpleType>
                  </xsd:element>
                </xsd:sequence>
              </xsd:complexType>
            </xsd:element>
          </xsd:choice>
        </xsd:complexType>
      </xsd:element>
      <xsd:element name="rtepQueueNumber" minOccurs="0">
        <xsd:simpleType>
          <xsd:restriction base="xsd:string">
            <xsd:maxLength value="50"/>
          </xsd:restriction>
        </xsd:simpleType>
      </xsd:element>
      <xsd:element name="equipment_default" type="equipment_default" minOccurs="0"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

element edart/transticrevise/error
diagram transticrevise_p8.png
type xsd:string
properties
minOcc 0
maxOcc unbounded
content simple
source <xsd:element name="error" type="xsd:string" minOccurs="0" maxOccurs="unbounded"/>

element edart/transticrevise/company
diagram transticrevise_p9.png
type xsd:short
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="company" type="xsd:short" minOccurs="0"/>

element edart/transticrevise/pjm_ticket_id
diagram transticrevise_p10.png
type xsd:positiveInteger
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="pjm_ticket_id" type="xsd:positiveInteger" minOccurs="0"/>

element edart/transticrevise/company_ticket_id
diagram transticrevise_p11.png
type restriction of xsd:string
properties
minOcc 0
maxOcc 1
content simple
nillable false
facets
Kind Value Annotation
minLength 0
maxLength 50
source <xsd:element name="company_ticket_id" nillable="false" minOccurs="0">
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:minLength value="0"/>
      <xsd:maxLength value="50"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>

element edart/transticrevise/projectName
diagram transticrevise_p12.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="projectName" type="xsd:string" minOccurs="0" maxOccurs="1"/>

element edart/transticrevise/ticket_status
diagram transticrevise_p13.png
type restriction of xsd:string
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
enumeration cancel
enumeration restore
source <xsd:element name="ticket_status" minOccurs="0">
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:enumeration value="cancel"/>
      <xsd:enumeration value="restore"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>

element edart/transticrevise/description
diagram transticrevise_p14.png
type restriction of xsd:string
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minLength 1
whiteSpace collapse
source <xsd:element name="description" minOccurs="0">
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:minLength value="1"/>
      <xsd:whiteSpace value="collapse"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>

element edart/transticrevise/project_ids
diagram transticrevise_p15.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="project_ids" type="xsd:string" minOccurs="0" maxOccurs="1"/>

element edart/transticrevise/availability
diagram transticrevise_p16.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="availability" type="xsd:string" minOccurs="0"/>

element edart/transticrevise/outage_type
diagram transticrevise_p17.png
type restriction of xsd:string
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
enumeration DailyIncludingWeekends
enumeration DailyNoWeekends
enumeration DailyWeekendsOnly
enumeration ContinuousNoWeekends
enumeration Continuous
enumeration EMS Tripped
source <xsd:element name="outage_type" minOccurs="0">
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:enumeration value="DailyIncludingWeekends"/>
      <xsd:enumeration value="DailyNoWeekends"/>
      <xsd:enumeration value="DailyWeekendsOnly"/>
      <xsd:enumeration value="ContinuousNoWeekends"/>
      <xsd:enumeration value="Continuous"/>
      <xsd:enumeration value="EMS Tripped"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>

element edart/transticrevise/ticket_type
diagram transticrevise_p18.png
properties
minOcc 0
maxOcc 1
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
info  xsd:boolean  optional
emergency  xsd:boolean  optional
auto_reclose  xsd:boolean  optional
directBilling  xsd:boolean  optional
directBillingDecline  xsd:boolean  optional
source <xsd:element name="ticket_type" minOccurs="0">
  <xsd:complexType>
    <xsd:attribute name="info" type="xsd:boolean" use="optional"/>
    <xsd:attribute name="emergency" type="xsd:boolean" use="optional"/>
    <xsd:attribute name="auto_reclose" type="xsd:boolean" use="optional"/>
    <xsd:attribute name="directBilling" type="xsd:boolean" use="optional"/>
    <xsd:attribute name="directBillingDecline" type="xsd:boolean" use="optional"/>
  </xsd:complexType>
</xsd:element>

attribute edart/transticrevise/ticket_type/@info
type xsd:boolean
properties
use optional
source <xsd:attribute name="info" type="xsd:boolean" use="optional"/>

attribute edart/transticrevise/ticket_type/@emergency
type xsd:boolean
properties
use optional
source <xsd:attribute name="emergency" type="xsd:boolean" use="optional"/>

attribute edart/transticrevise/ticket_type/@auto_reclose
type xsd:boolean
properties
use optional
source <xsd:attribute name="auto_reclose" type="xsd:boolean" use="optional"/>

attribute edart/transticrevise/ticket_type/@directBilling
type xsd:boolean
properties
use optional
source <xsd:attribute name="directBilling" type="xsd:boolean" use="optional"/>

attribute edart/transticrevise/ticket_type/@directBillingDecline
type xsd:boolean
properties
use optional
source <xsd:attribute name="directBillingDecline" type="xsd:boolean" use="optional"/>

element edart/transticrevise/equipment

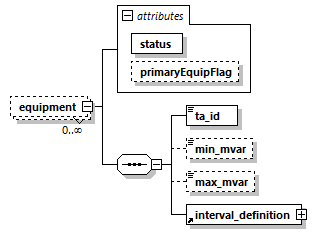

diagram transticrevise_p19.png
properties
minOcc 0
maxOcc unbounded
content complex
children ta_id min_mvar max_mvar interval_definition
attributes
Name  Type  Use  Default  Fixed  Annotation
status  derived by: xsd:NMTOKEN  required
primaryEquipFlag  xsd:boolean  optional
source <xsd:element name="equipment" minOccurs="0" maxOccurs="unbounded">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element name="ta_id">
        <xsd:simpleType>
          <xsd:restriction base="xsd:int"/>
        </xsd:simpleType>
      </xsd:element>
      <xsd:element name="min_mvar" type="xsd:integer" minOccurs="0"/>
      <xsd:element name="max_mvar" type="xsd:integer" minOccurs="0"/>
      <xsd:element ref="interval_definition"/>
    </xsd:sequence>
    <xsd:attribute name="status" use="required">
      <xsd:simpleType>
        <xsd:restriction base="xsd:NMTOKEN">
          <xsd:enumeration value="O"/>
          <xsd:enumeration value="C"/>
          <xsd:enumeration value="E"/>
          <xsd:enumeration value="T"/>
          <xsd:enumeration value="R"/>
          <xsd:enumeration value="TR"/>
          <xsd:enumeration value="RE"/>
        </xsd:restriction>
      </xsd:simpleType>
    </xsd:attribute>
    <xsd:attribute name="primaryEquipFlag" type="xsd:boolean" use="optional"/>
  </xsd:complexType>
</xsd:element>

attribute edart/transticrevise/equipment/@status
type restriction of xsd:NMTOKEN
properties
use required
facets
Kind Value Annotation
enumeration O
enumeration C
enumeration E
enumeration T
enumeration R
enumeration TR
enumeration RE
source <xsd:attribute name="status" use="required">
  <xsd:simpleType>
    <xsd:restriction base="xsd:NMTOKEN">
      <xsd:enumeration value="O"/>
      <xsd:enumeration value="C"/>
      <xsd:enumeration value="E"/>
      <xsd:enumeration value="T"/>
      <xsd:enumeration value="R"/>
      <xsd:enumeration value="TR"/>
      <xsd:enumeration value="RE"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:attribute>

attribute edart/transticrevise/equipment/@primaryEquipFlag
type xsd:boolean
properties
use optional
source <xsd:attribute name="primaryEquipFlag" type="xsd:boolean" use="optional"/>

element edart/transticrevise/equipment/ta_id
diagram transticrevise_p20.png
type restriction of xsd:int
properties
content simple
source <xsd:element name="ta_id">
  <xsd:simpleType>
    <xsd:restriction base="xsd:int"/>
  </xsd:simpleType>
</xsd:element>

element edart/transticrevise/equipment/min_mvar
diagram transticrevise_p21.png
type xsd:integer
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="min_mvar" type="xsd:integer" minOccurs="0"/>

element edart/transticrevise/equipment/max_mvar
diagram transticrevise_p22.png
type xsd:integer
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="max_mvar" type="xsd:integer" minOccurs="0"/>

element edart/transticrevise/switch
diagram transticrevise_p23.png
properties
minOcc 0
maxOcc 1
content complex
children interval_definition
source <xsd:element name="switch" minOccurs="0">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element name="interval_definition">
        <xsd:complexType>
          <xsd:sequence>
            <xsd:element name="interval_start">
              <xsd:complexType>
                <xsd:sequence>
                  <xsd:element ref="date"/>
                  <xsd:element ref="time"/>
                </xsd:sequence>
              </xsd:complexType>
            </xsd:element>
          </xsd:sequence>
        </xsd:complexType>
      </xsd:element>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

element edart/transticrevise/switch/interval_definition
diagram transticrevise_p24.png
properties
content complex
children interval_start
used by
elements edart/transticrevise/equipment edart/transticrevise
source <xsd:element name="interval_definition">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element name="interval_start">
        <xsd:complexType>
          <xsd:sequence>
            <xsd:element ref="date"/>
            <xsd:element ref="time"/>
          </xsd:sequence>
        </xsd:complexType>
      </xsd:element>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

element edart/transticrevise/switch/interval_definition/interval_start
diagram transticrevise_p25.png
properties
content complex
children date time
source <xsd:element name="interval_start">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="date"/>
      <xsd:element ref="time"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

element edart/transticrevise/vegetationFlag
diagram transticrevise_p26.png
type xsd:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="vegetationFlag" type="xsd:boolean" minOccurs="0"/>

element edart/transticrevise/cause
diagram transticrevise_p27.png
type extension of xsd:integer
properties
minOcc 0
maxOcc unbounded
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
remove
source <xsd:element name="cause" minOccurs="0" maxOccurs="unbounded">
  <xsd:complexType>
    <xsd:simpleContent>
      <xsd:extension base="xsd:integer">
        <xsd:attribute name="remove"/>
      </xsd:extension>
    </xsd:simpleContent>
  </xsd:complexType>
</xsd:element>

attribute edart/transticrevise/cause/@remove
source <xsd:attribute name="remove"/>

element edart/transticrevise/cutInFlag
diagram transticrevise_p28.png
type xsd:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="cutInFlag" type="xsd:boolean" minOccurs="0"/>

element edart/transticrevise/cutInInfo
diagram transticrevise_p29.png
properties
minOcc 0
maxOcc 1
content complex
children cutInTitle cutInStatus cutInTask
source <xsd:element name="cutInInfo" minOccurs="0">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element name="cutInTitle" type="xsd:string" minOccurs="0"/>
      <xsd:element name="cutInStatus" type="xsd:string" minOccurs="0"/>
      <xsd:element ref="cutInTask" minOccurs="0" maxOccurs="unbounded"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

element edart/transticrevise/cutInInfo/cutInTitle
diagram transticrevise_p30.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="cutInTitle" type="xsd:string" minOccurs="0"/>

element edart/transticrevise/cutInInfo/cutInStatus
diagram transticrevise_p31.png
type xsd:string
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="cutInStatus" type="xsd:string" minOccurs="0"/>

element edart/transticrevise/nerctads
diagram transticrevise_p32.png
properties
minOcc 0
maxOcc 1
content complex
children planned operational autoReclose
source <xsd:element name="nerctads" minOccurs="0">
  <xsd:complexType>
    <xsd:choice>
      <xsd:element name="planned">
        <xsd:simpleType>
          <xsd:restriction base="xsd:string">
            <xsd:enumeration value="Maintenance and Construction"/>
            <xsd:enumeration value="Other Planned Outage"/>
            <xsd:enumeration value="Third Party Request"/>
          </xsd:restriction>
        </xsd:simpleType>
      </xsd:element>
      <xsd:element name="operational">
        <xsd:simpleType>
          <xsd:restriction base="xsd:string">
            <xsd:enumeration value="Emergency"/>
            <xsd:enumeration value="Other Operational Outage"/>
            <xsd:enumeration value="System Operating Limit Mitigation, ex Voltage"/>
            <xsd:enumeration value="System Voltage Limit Mitigation"/>
            <xsd:enumeration value="N/A"/>
            <xsd:enumeration value="Human Error"/>
          </xsd:restriction>
        </xsd:simpleType>
      </xsd:element>
      <xsd:element name="autoReclose">
        <xsd:complexType>
          <xsd:sequence>
            <xsd:element name="faultType">
              <xsd:simpleType>
                <xsd:restriction base="xsd:integer">
                  <xsd:minInclusive value="0"/>
                  <xsd:maxInclusive value="5"/>
                </xsd:restriction>
              </xsd:simpleType>
            </xsd:element>
            <xsd:element name="outageInitCode">
              <xsd:simpleType>
                <xsd:restriction base="xsd:integer">
                  <xsd:minInclusive value="0"/>
                  <xsd:maxInclusive value="5"/>
                </xsd:restriction>
              </xsd:simpleType>
            </xsd:element>
            <xsd:element name="initCauseCode">
              <xsd:simpleType>
                <xsd:restriction base="xsd:integer">
                  <xsd:minInclusive value="0"/>
                  <xsd:maxInclusive value="17"/>
                </xsd:restriction>
              </xsd:simpleType>
            </xsd:element>
            <xsd:element name="sustainedCauseCode">
              <xsd:simpleType>
                <xsd:restriction base="xsd:integer">
                  <xsd:minInclusive value="0"/>
                  <xsd:maxInclusive value="18"/>
                </xsd:restriction>
              </xsd:simpleType>
            </xsd:element>
            <xsd:element name="outageModeCode">
              <xsd:simpleType>
                <xsd:restriction base="xsd:integer">
                  <xsd:minInclusive value="0"/>
                  <xsd:maxInclusive value="5"/>
                </xsd:restriction>
              </xsd:simpleType>
            </xsd:element>
          </xsd:sequence>
        </xsd:complexType>
      </xsd:element>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>

element edart/transticrevise/nerctads/planned
diagram transticrevise_p33.png
type restriction of xsd:string
properties
content simple
facets
Kind Value Annotation
enumeration Maintenance and Construction
enumeration Other Planned Outage
enumeration Third Party Request
source <xsd:element name="planned">
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:enumeration value="Maintenance and Construction"/>
      <xsd:enumeration value="Other Planned Outage"/>
      <xsd:enumeration value="Third Party Request"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>

element edart/transticrevise/nerctads/operational
diagram transticrevise_p34.png
type restriction of xsd:string
properties
content simple
facets
Kind Value Annotation
enumeration Emergency
enumeration Other Operational Outage
enumeration System Operating Limit Mitigation, ex Voltage
enumeration System Voltage Limit Mitigation
enumeration N/A
enumeration Human Error
source <xsd:element name="operational">
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:enumeration value="Emergency"/>
      <xsd:enumeration value="Other Operational Outage"/>
      <xsd:enumeration value="System Operating Limit Mitigation, ex Voltage"/>
      <xsd:enumeration value="System Voltage Limit Mitigation"/>
      <xsd:enumeration value="N/A"/>
      <xsd:enumeration value="Human Error"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>

element edart/transticrevise/nerctads/autoReclose
diagram transticrevise_p35.png
properties
content complex
children faultType outageInitCode initCauseCode sustainedCauseCode outageModeCode
source <xsd:element name="autoReclose">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element name="faultType">
        <xsd:simpleType>
          <xsd:restriction base="xsd:integer">
            <xsd:minInclusive value="0"/>
            <xsd:maxInclusive value="5"/>
          </xsd:restriction>
        </xsd:simpleType>
      </xsd:element>
      <xsd:element name="outageInitCode">
        <xsd:simpleType>
          <xsd:restriction base="xsd:integer">
            <xsd:minInclusive value="0"/>
            <xsd:maxInclusive value="5"/>
          </xsd:restriction>
        </xsd:simpleType>
      </xsd:element>
      <xsd:element name="initCauseCode">
        <xsd:simpleType>
          <xsd:restriction base="xsd:integer">
            <xsd:minInclusive value="0"/>
            <xsd:maxInclusive value="17"/>
          </xsd:restriction>
        </xsd:simpleType>
      </xsd:element>
      <xsd:element name="sustainedCauseCode">
        <xsd:simpleType>
          <xsd:restriction base="xsd:integer">
            <xsd:minInclusive value="0"/>
            <xsd:maxInclusive value="18"/>
          </xsd:restriction>
        </xsd:simpleType>
      </xsd:element>
      <xsd:element name="outageModeCode">
        <xsd:simpleType>
          <xsd:restriction base="xsd:integer">
            <xsd:minInclusive value="0"/>
            <xsd:maxInclusive value="5"/>
          </xsd:restriction>
        </xsd:simpleType>
      </xsd:element>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

element edart/transticrevise/nerctads/autoReclose/faultType
diagram transticrevise_p36.png
type restriction of xsd:integer
properties
content simple
facets
Kind Value Annotation
minInclusive 0
maxInclusive 5
source <xsd:element name="faultType">
  <xsd:simpleType>
    <xsd:restriction base="xsd:integer">
      <xsd:minInclusive value="0"/>
      <xsd:maxInclusive value="5"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>

element edart/transticrevise/nerctads/autoReclose/outageInitCode
diagram transticrevise_p37.png
type restriction of xsd:integer
properties
content simple
facets
Kind Value Annotation
minInclusive 0
maxInclusive 5
source <xsd:element name="outageInitCode">
  <xsd:simpleType>
    <xsd:restriction base="xsd:integer">
      <xsd:minInclusive value="0"/>
      <xsd:maxInclusive value="5"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>

element edart/transticrevise/nerctads/autoReclose/initCauseCode
diagram transticrevise_p38.png
type restriction of xsd:integer
properties
content simple
facets
Kind Value Annotation
minInclusive 0
maxInclusive 17
source <xsd:element name="initCauseCode">
  <xsd:simpleType>
    <xsd:restriction base="xsd:integer">
      <xsd:minInclusive value="0"/>
      <xsd:maxInclusive value="17"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>

element edart/transticrevise/nerctads/autoReclose/sustainedCauseCode
diagram transticrevise_p39.png
type restriction of xsd:integer
properties
content simple
facets
Kind Value Annotation
minInclusive 0
maxInclusive 18
source <xsd:element name="sustainedCauseCode">
  <xsd:simpleType>
    <xsd:restriction base="xsd:integer">
      <xsd:minInclusive value="0"/>
      <xsd:maxInclusive value="18"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>

element edart/transticrevise/nerctads/autoReclose/outageModeCode
diagram transticrevise_p40.png
type restriction of xsd:integer
properties
content simple
facets
Kind Value Annotation
minInclusive 0
maxInclusive 5
source <xsd:element name="outageModeCode">
  <xsd:simpleType>
    <xsd:restriction base="xsd:integer">
      <xsd:minInclusive value="0"/>
      <xsd:maxInclusive value="5"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>

element edart/transticrevise/rtepQueueNumber
diagram transticrevise_p41.png
type restriction of xsd:string
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
maxLength 50
source <xsd:element name="rtepQueueNumber" minOccurs="0">
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:maxLength value="50"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>

element edart/transticrevise/equipment_default
diagram transticrevise_p42.png
type equipment_default
properties
minOcc 0
maxOcc 1
content complex
children equipment
source <xsd:element name="equipment_default" type="equipment_default" minOccurs="0"/>

element interval_definition
diagram transticrevise_p43.png
properties
content complex
children interval_start interval_end
used by
elements edart/transticrevise/equipment edart/transticrevise
source <xsd:element name="interval_definition">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element name="interval_start" minOccurs="0">
        <xsd:complexType>
          <xsd:sequence>
            <xsd:element ref="date"/>
            <xsd:element ref="time"/>
          </xsd:sequence>
        </xsd:complexType>
      </xsd:element>
      <xsd:element name="interval_end" minOccurs="0">
        <xsd:complexType>
          <xsd:sequence>
            <xsd:element ref="date"/>
            <xsd:element ref="time"/>
          </xsd:sequence>
        </xsd:complexType>
      </xsd:element>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

element interval_definition/interval_start
diagram transticrevise_p44.png
properties
minOcc 0
maxOcc 1
content complex
children date time
source <xsd:element name="interval_start" minOccurs="0">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="date"/>
      <xsd:element ref="time"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

element interval_definition/interval_end
diagram transticrevise_p45.png
properties
minOcc 0
maxOcc 1
content complex
children date time
source <xsd:element name="interval_end" minOccurs="0">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="date"/>
      <xsd:element ref="time"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

element time
diagram transticrevise_p46.png
type xsd:string
properties
content simple
used by
elements interval_definition/interval_end edart/transticrevise/switch/interval_definition/interval_start interval_definition/interval_start
source <xsd:element name="time" type="xsd:string"/>

complexType equipment_default
diagram transticrevise_p47.png
children equipment
used by
element edart/transticrevise/equipment_default
source <xsd:complexType name="equipment_default">
  <xsd:choice minOccurs="0" maxOccurs="unbounded">
    <xsd:element name="equipment">
      <xsd:complexType>
        <xsd:all>
          <!-- The accepted input values for default_status are: open, closed -->
          <xsd:element name="default_status" type="xsd:string"/>
        </xsd:all>
        <xsd:attribute name="ta_id" type="xsd:long" use="required"/>
      </xsd:complexType>
    </xsd:element>
  </xsd:choice>
</xsd:complexType>

element equipment_default/equipment
diagram transticrevise_p48.png
properties
content complex
children default_status
attributes
Name  Type  Use  Default  Fixed  Annotation
ta_id  xsd:long  required
source <xsd:element name="equipment">
  <xsd:complexType>
    <xsd:all>
      <!-- The accepted input values for default_status are: open, closed -->
      <xsd:element name="default_status" type="xsd:string"/>
    </xsd:all>
    <xsd:attribute name="ta_id" type="xsd:long" use="required"/>
  </xsd:complexType>
</xsd:element>

attribute equipment_default/equipment/@ta_id
type xsd:long
properties
use required
source <xsd:attribute name="ta_id" type="xsd:long" use="required"/>

element equipment_default/equipment/default_status
diagram transticrevise_p49.png
type xsd:string
properties
content simple
source <xsd:element name="default_status" type="xsd:string"/>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
